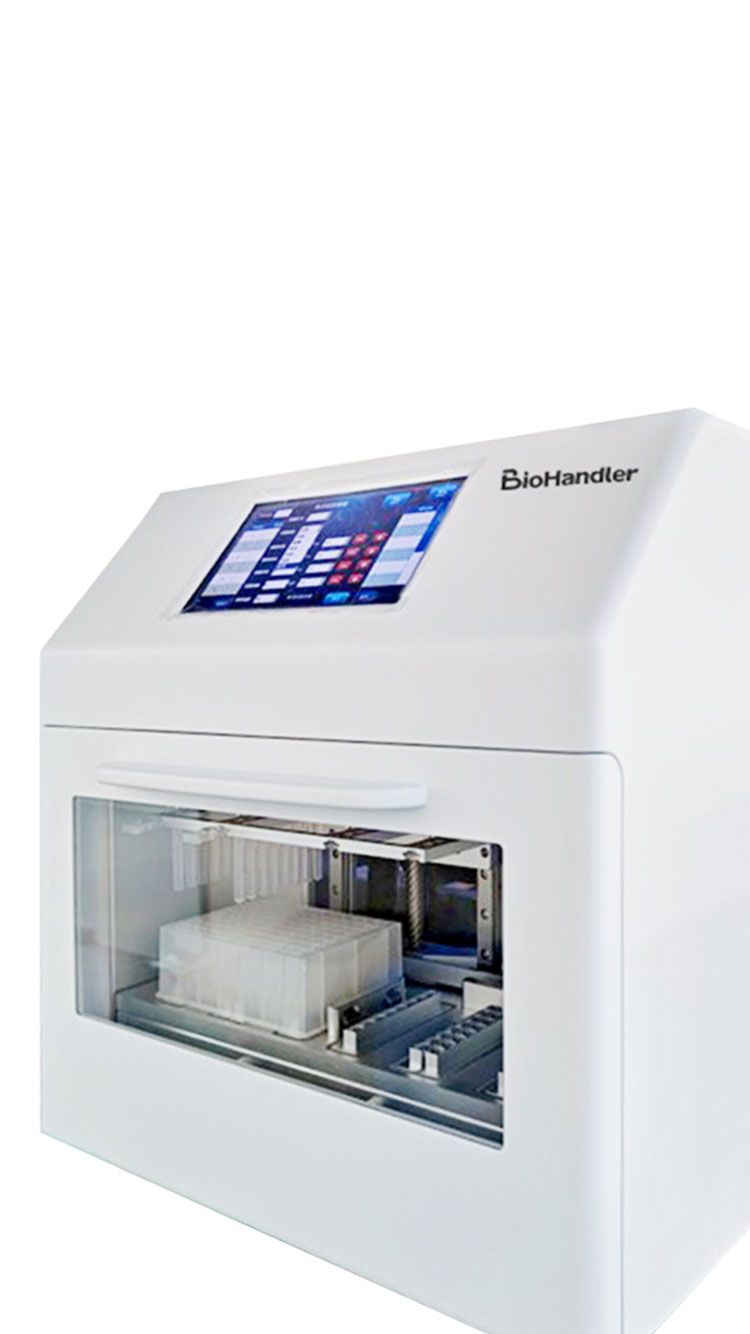

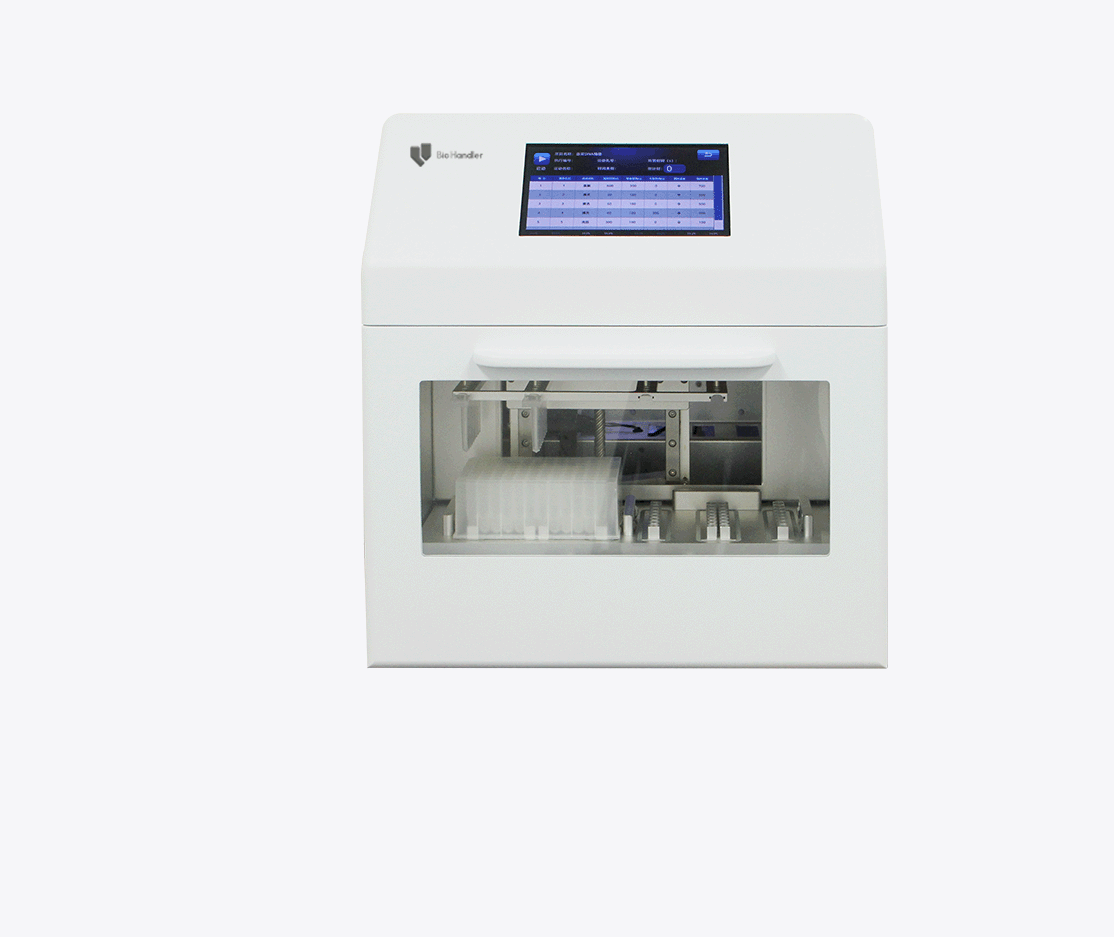

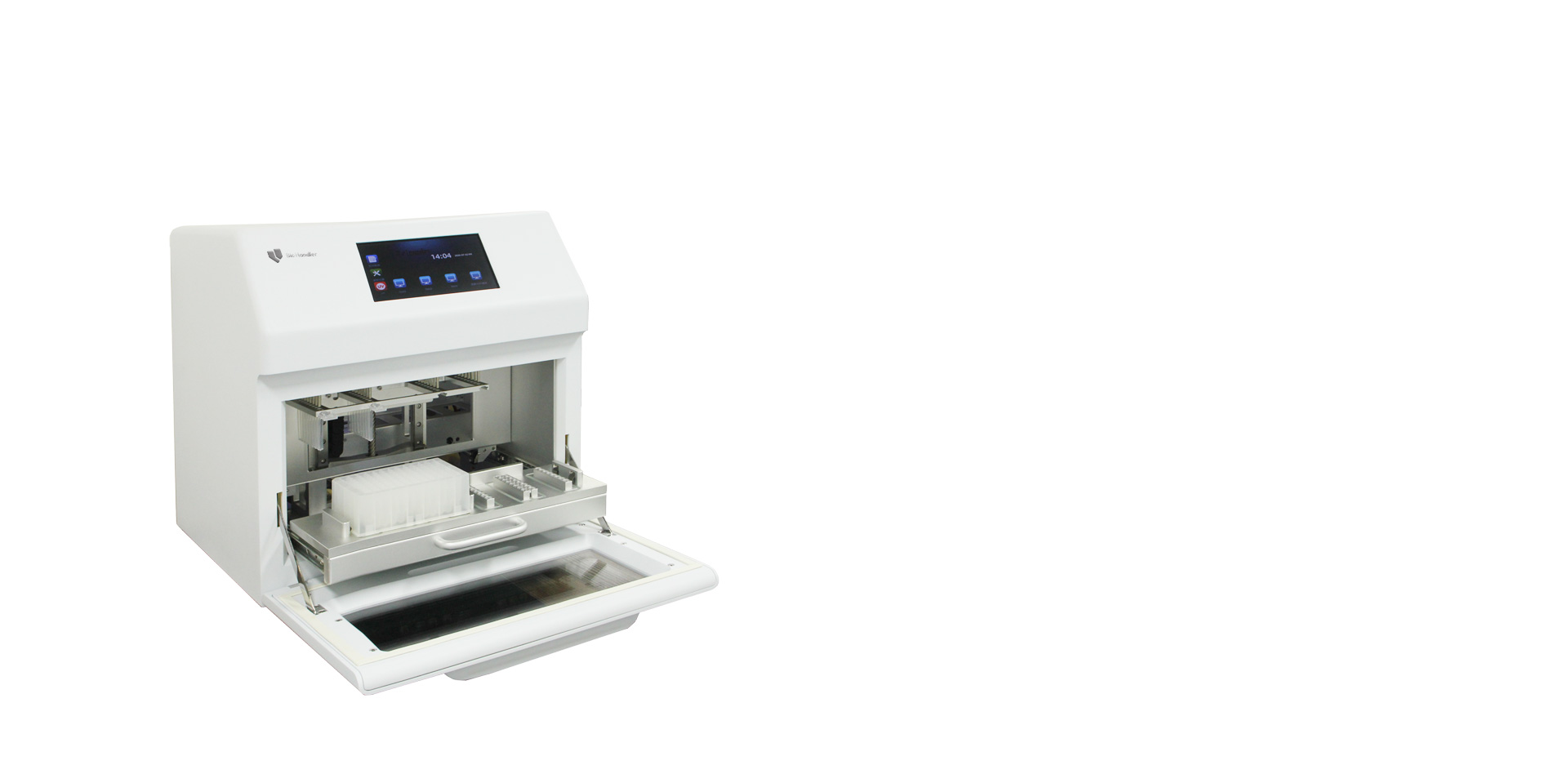

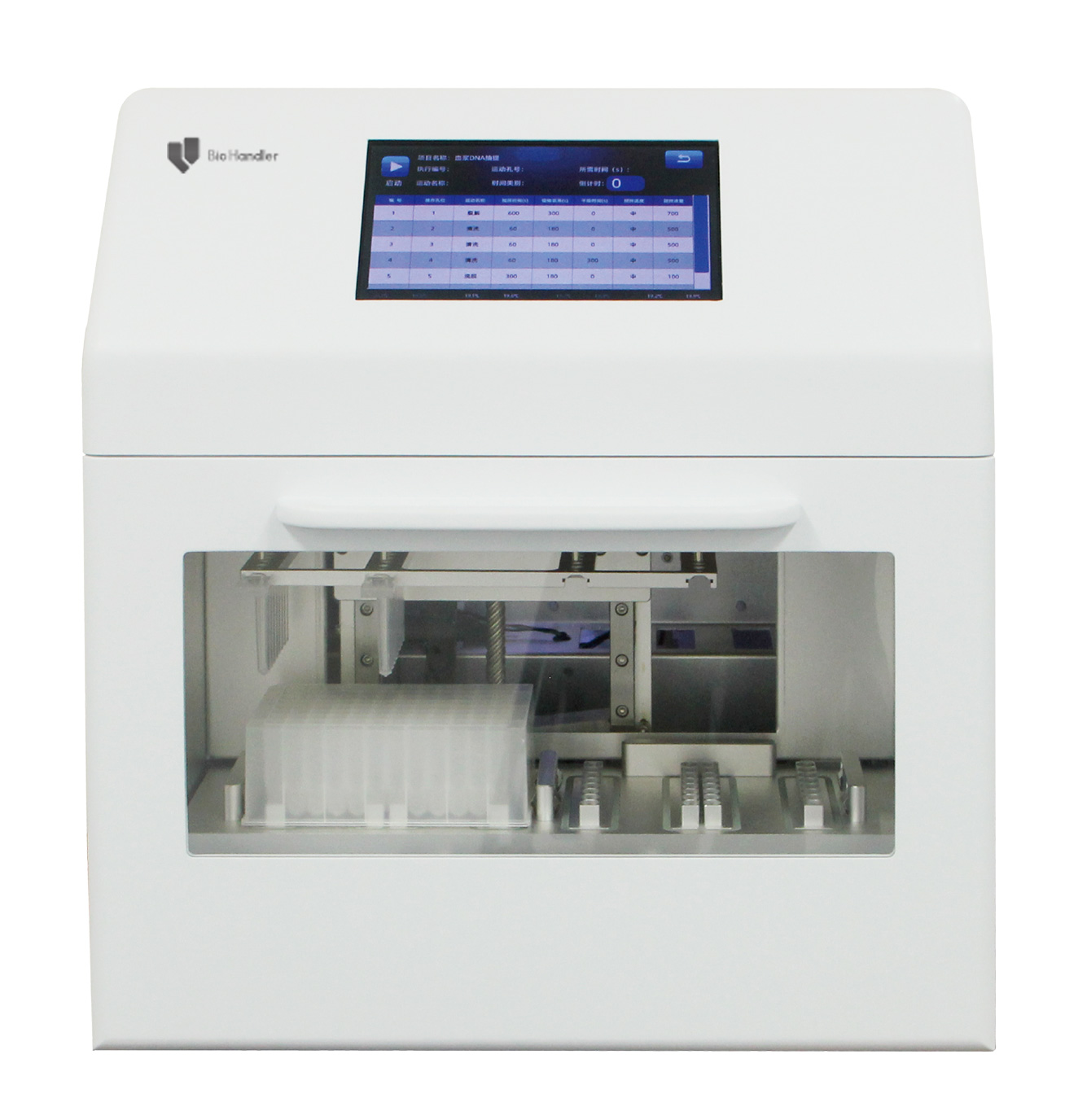

VOLA 32

Nucleic Acid Extractor

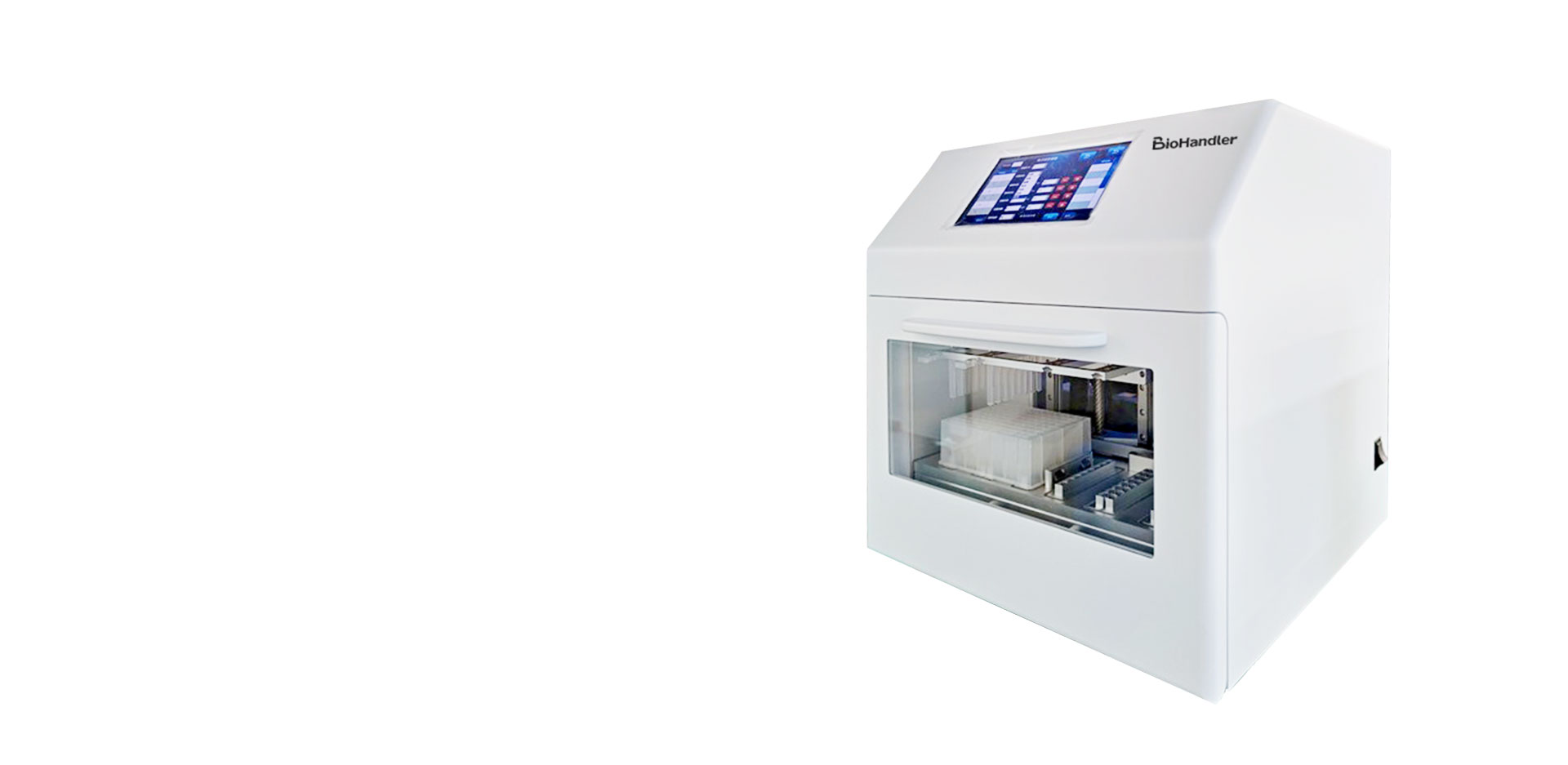

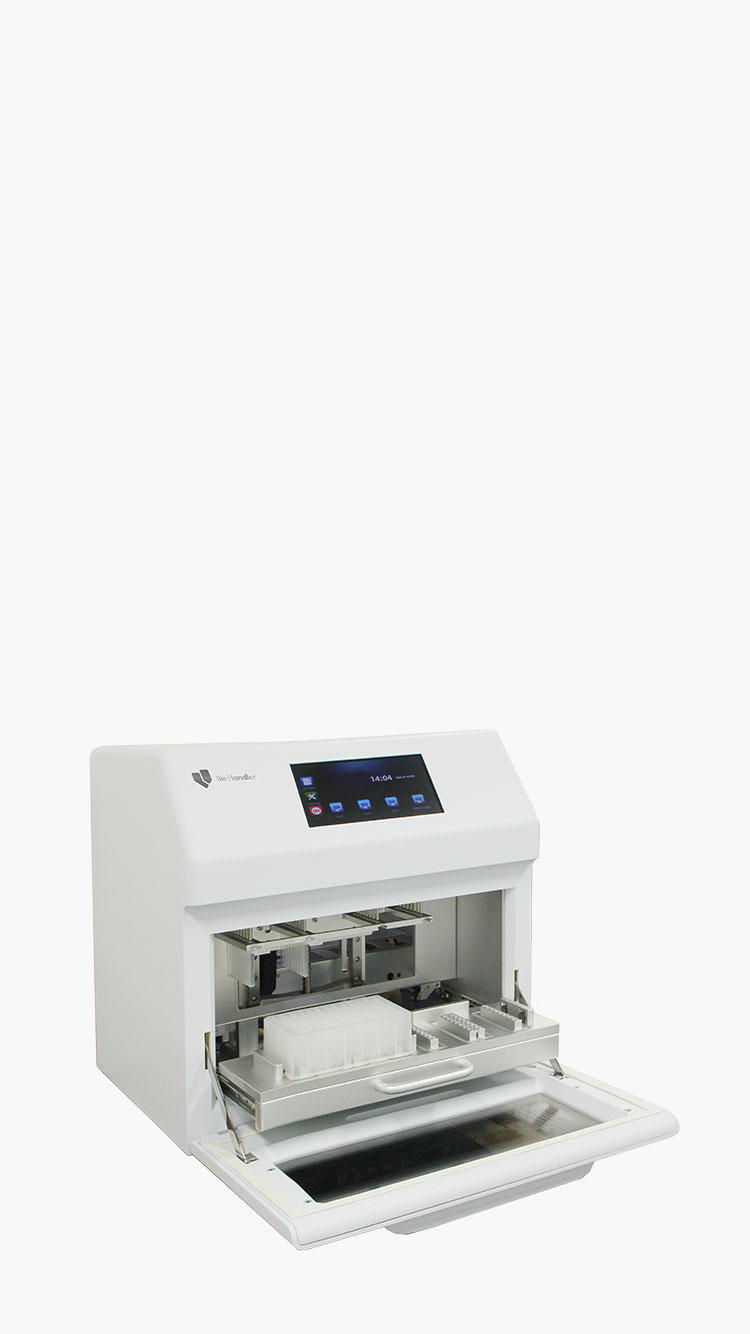

VOLA 32 automated nucleic acid extractor is easy to use, offering a high level of flexibility and efficiency. When combined with magnetic bead-based kits, it can rapidly extract DNA or RNA from animal and plant tissues, blood, body fluids and forensic samples, and is widely used in scientific research, in vitro diagnosis, food safety and forensics.

VOLA 32

Flexible and efficient

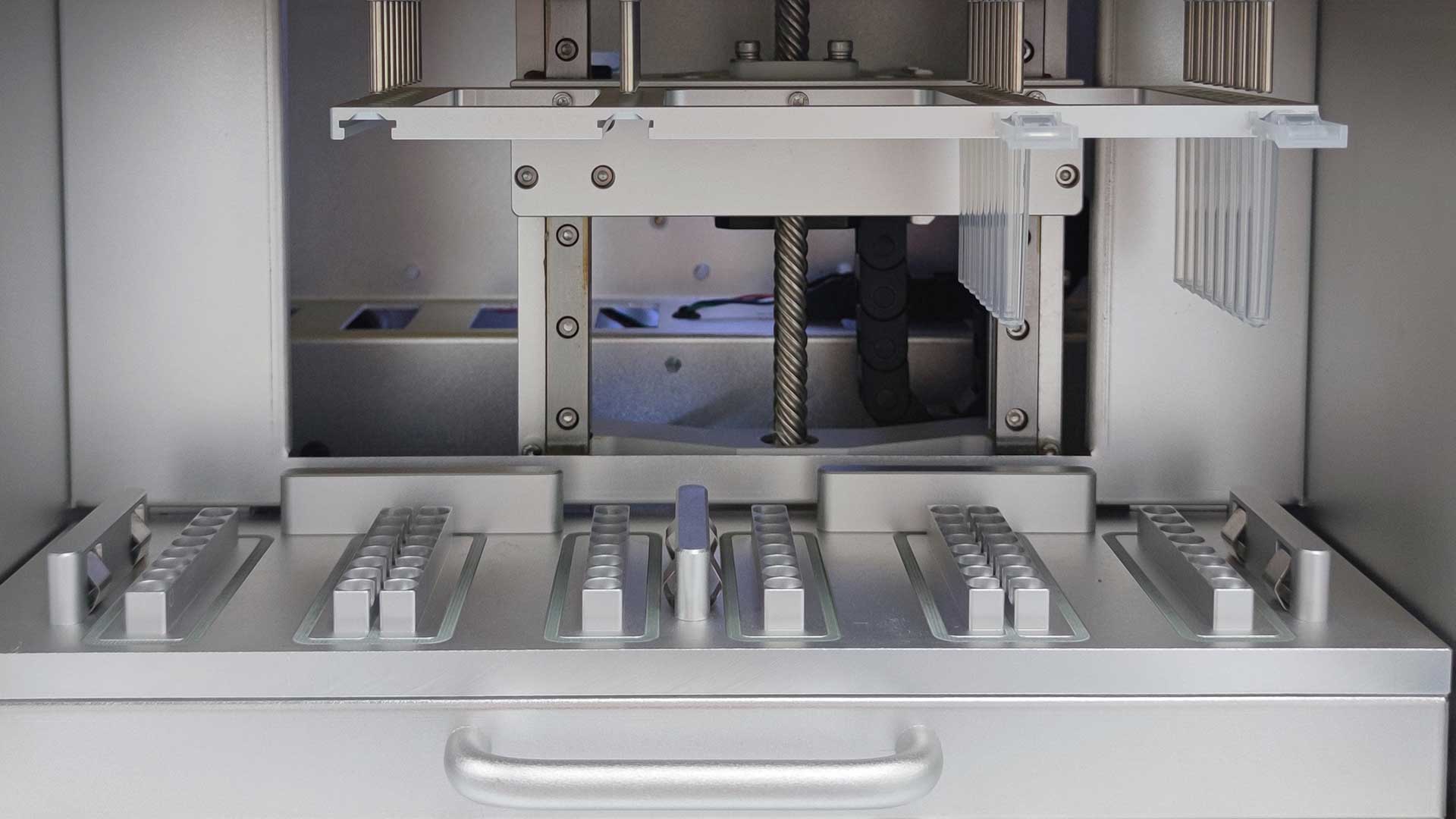

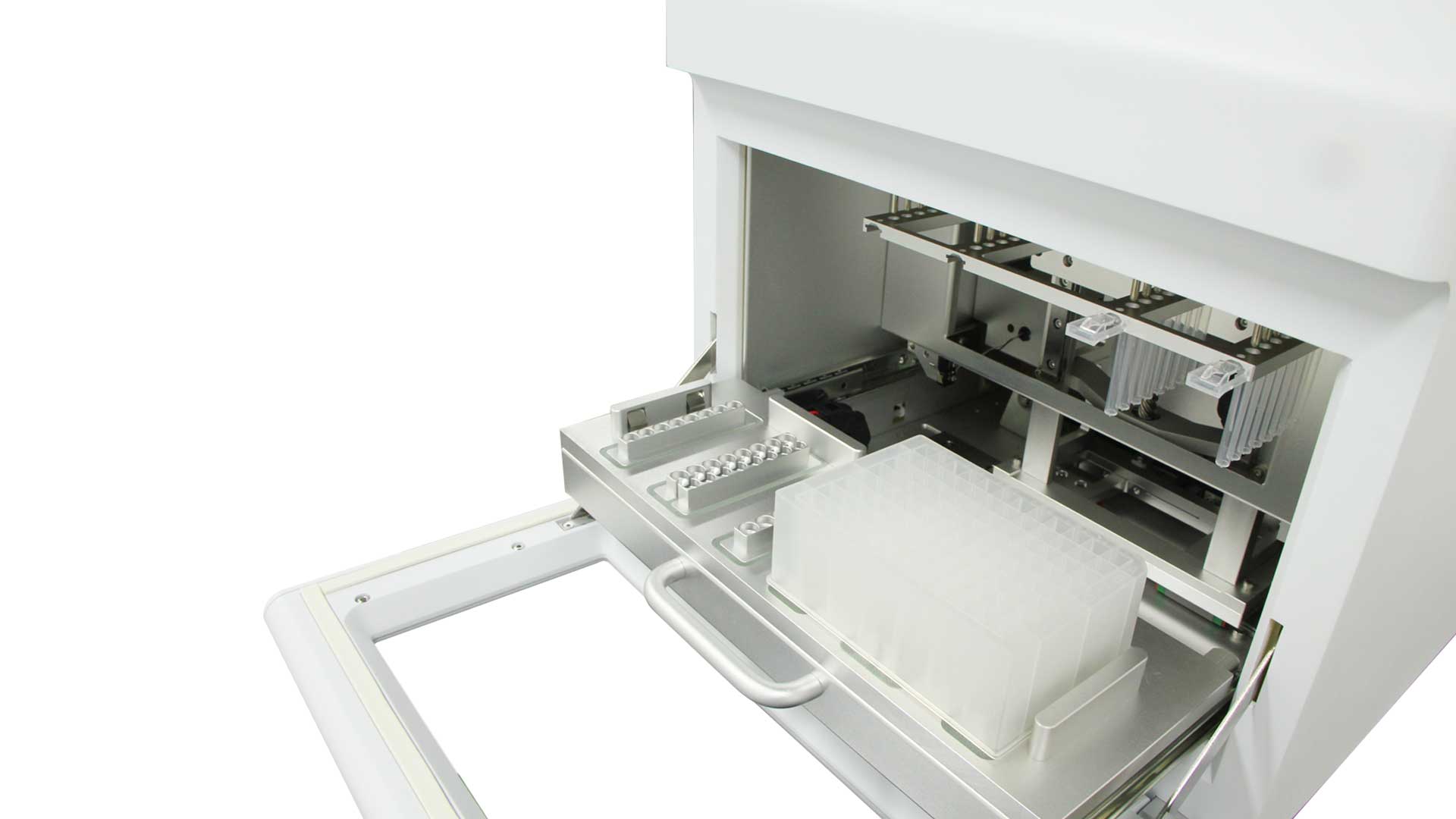

Compact footprint, flexible operations, robust control system, fast extraction, high -throughput and high-yield purification

Easy to use and control

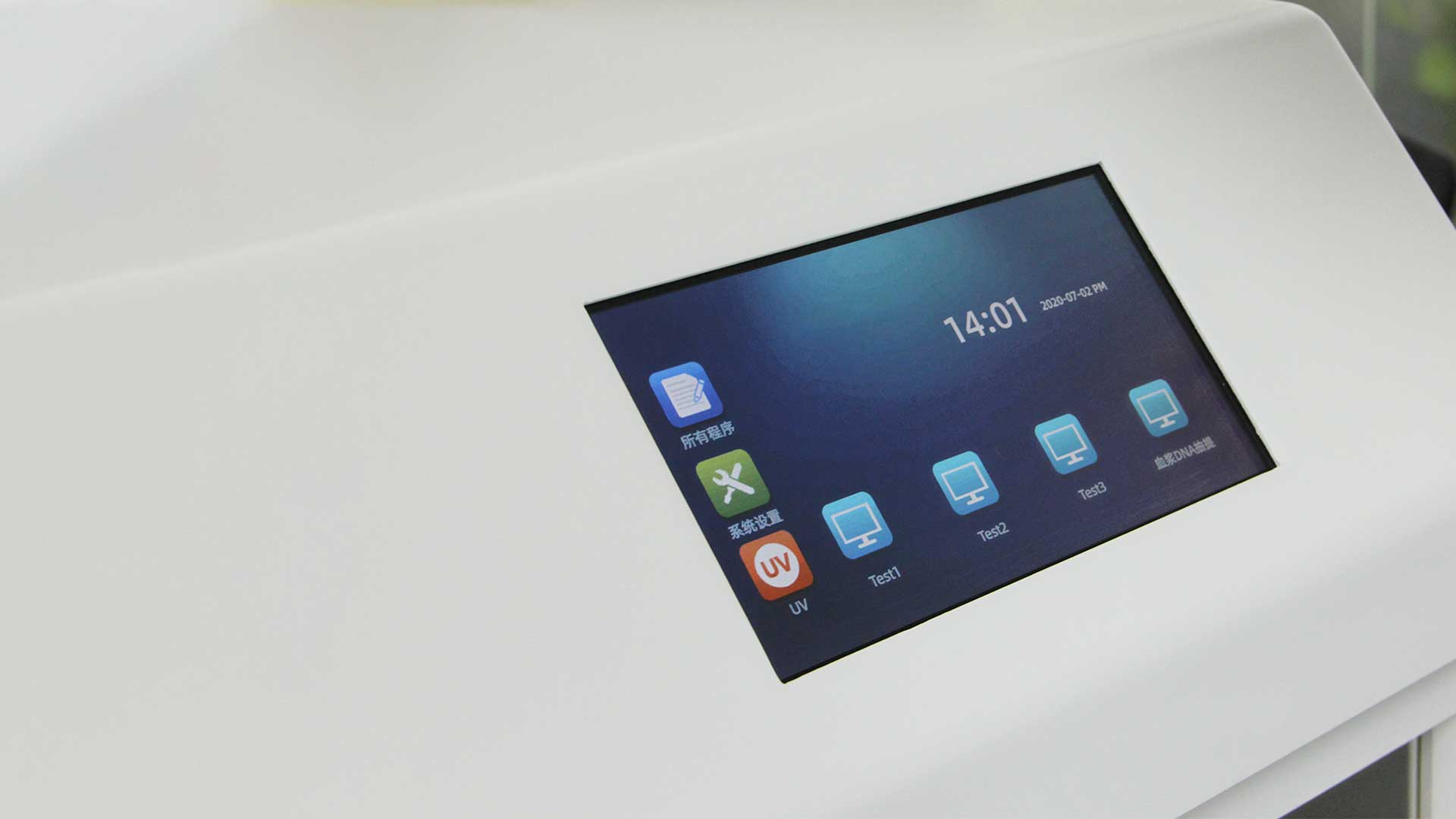

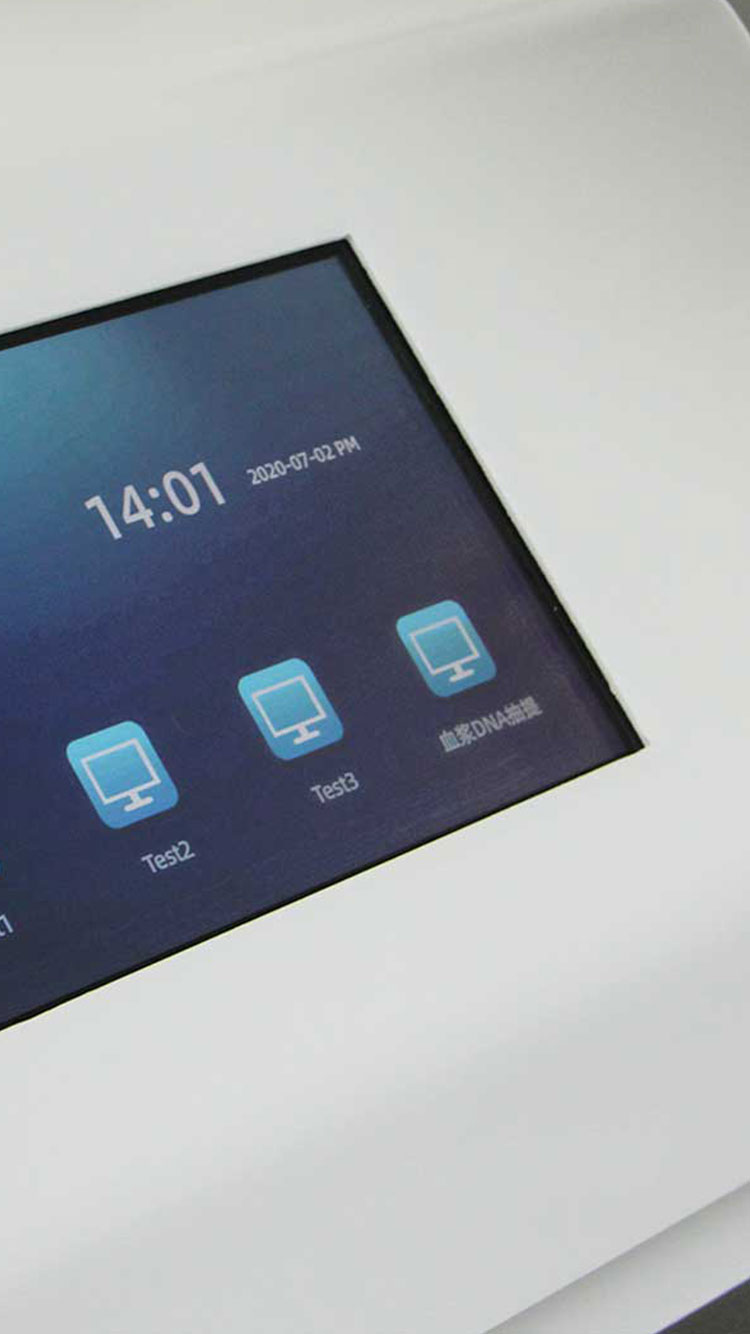

Touchscreen display is easy to use. User-definable temperature control makes it more convenient and intelligent

Safe and reliable

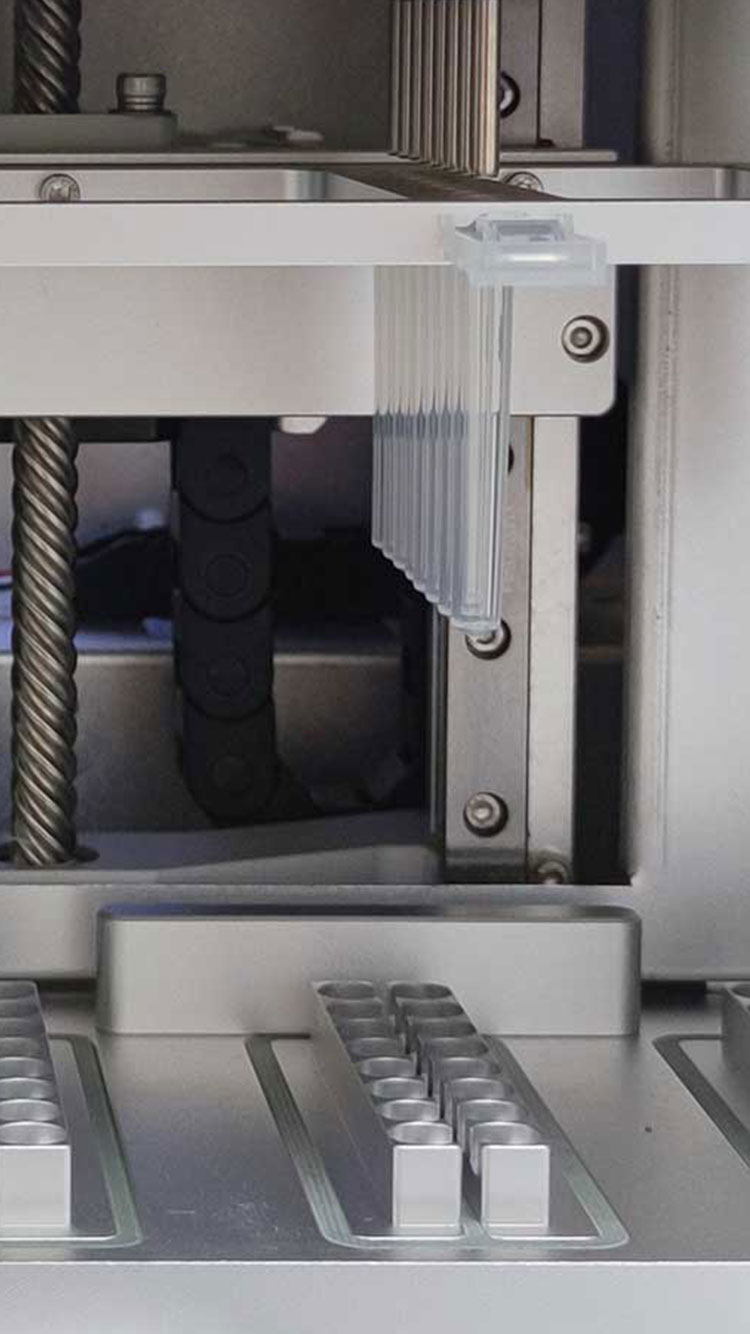

Reliable and safe operation, regular UV sterilization, cross-contamination control

Open and free

Open reagent, compatible with a wide range of magnetic-bead based reagents. Free programming allows for customizable workflows

Flexible and efficient

Easy to use and control

Safe and reliable

Open and free

Technical Specifications

Product name	VOLA 32 Nucleic Acid Extractor
Process volume	20μL-1000μL
Sample throughput	1-32
Magnetic bead recovery	≥98%

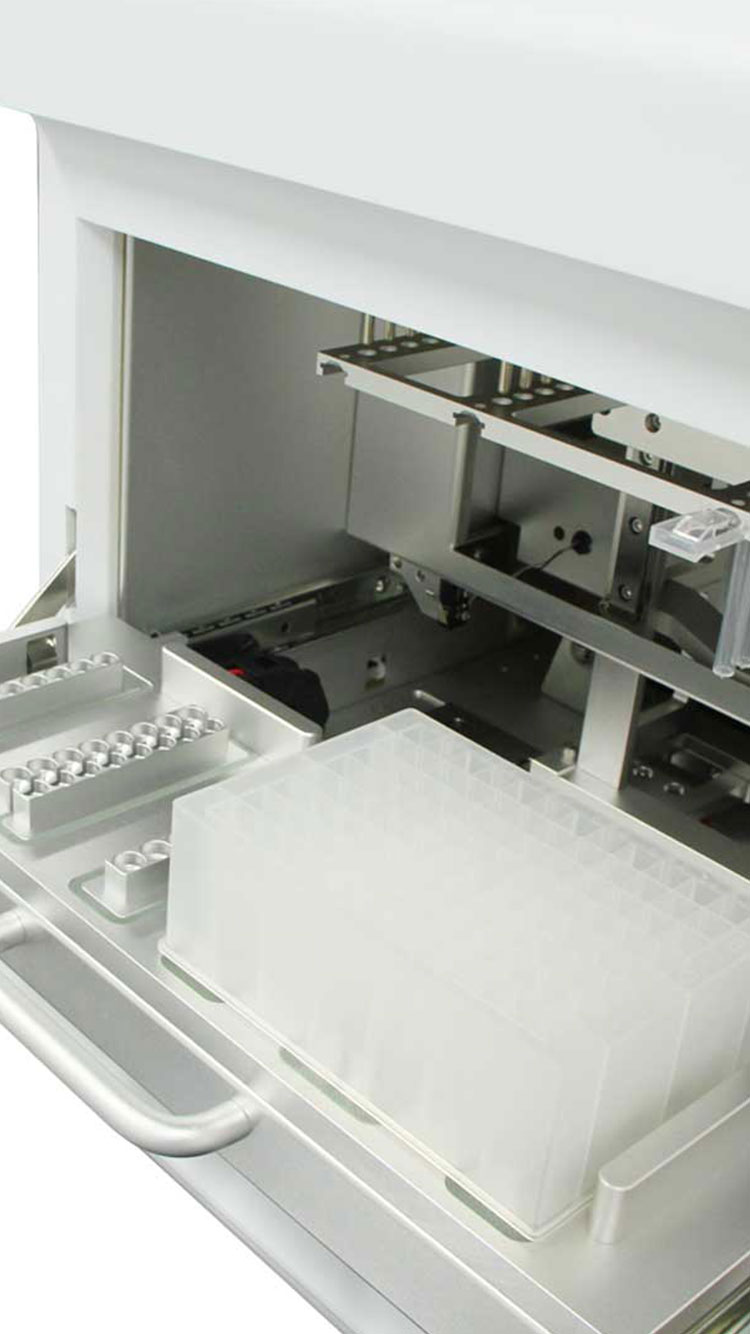

Plate type	96 deep-well plate
Sensitivity	>95% positive rate at 100 copies
Well-to-well variability	CV<5%
Lysis temperature	Room temperature ~ 110°C; 4 independently-controlled heating channels
Elution temperature	Room temperature ~ 110°C; 4 independently-controlled heating channels
Shaking and mixing	Multi-mode, multi-speed adjustment
Compatible reagents	Magnetic bead-based open platform
User interface	Color LCD touchscreen
Internal program	Can store up to 200 programs
Program management	New, editing, delete, save as
Sterilization	UV light
Computer interface	USB
Dimensions (W×D×H)	388×412×451mm
Weight	18kg
Power	AC110-240V, 50/60Hz, 500W
