ARCO
High-accuracy Microliter Dispenser

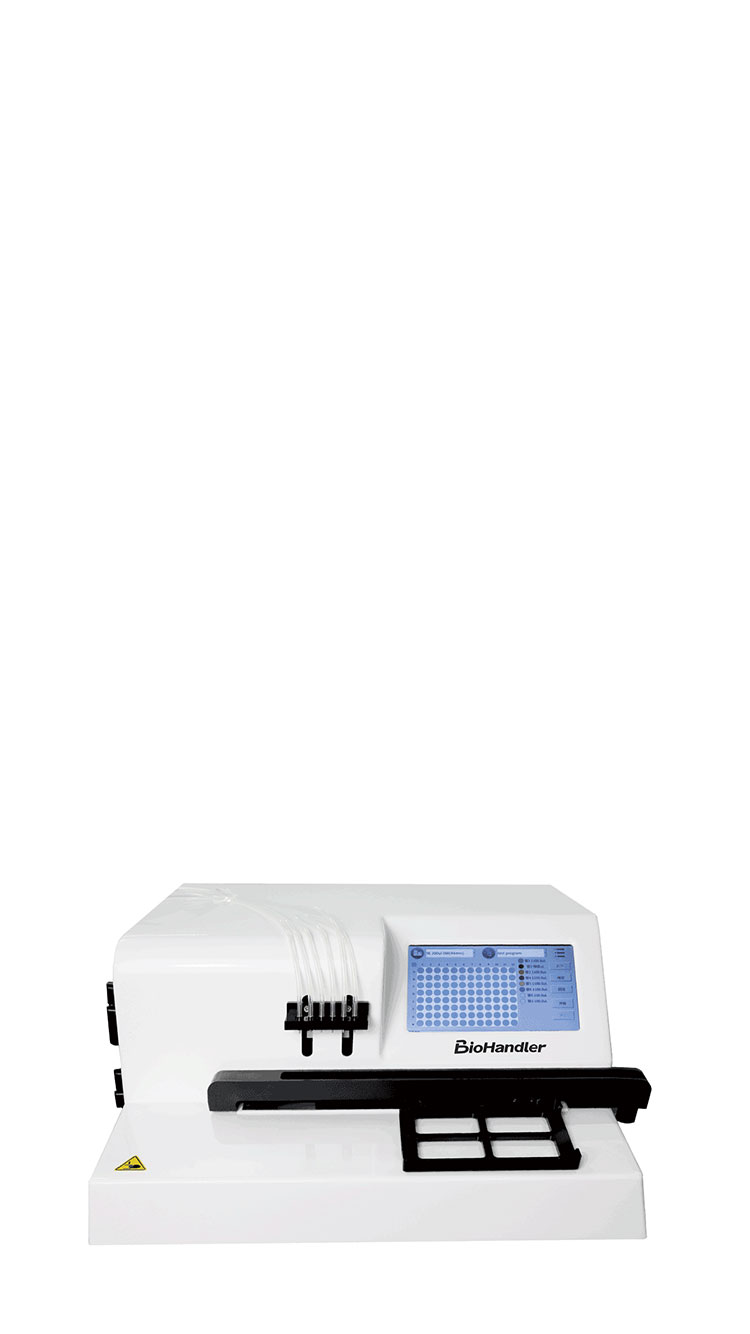

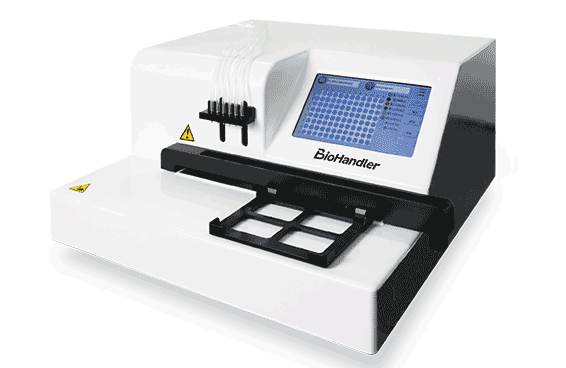

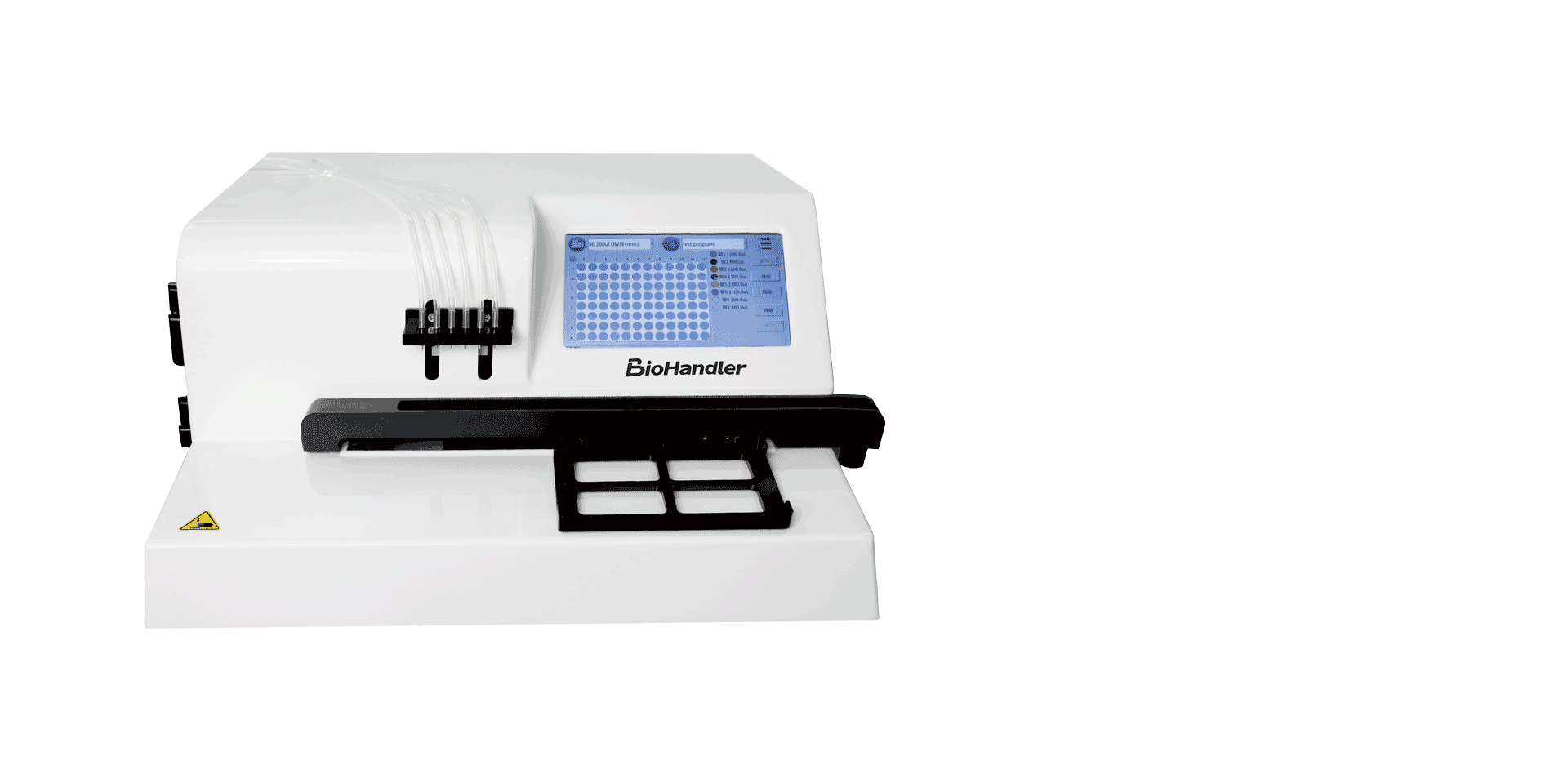

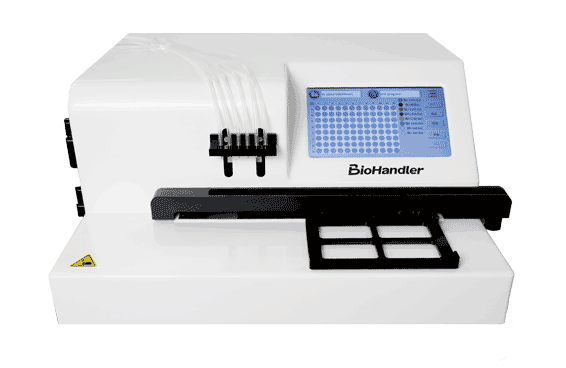

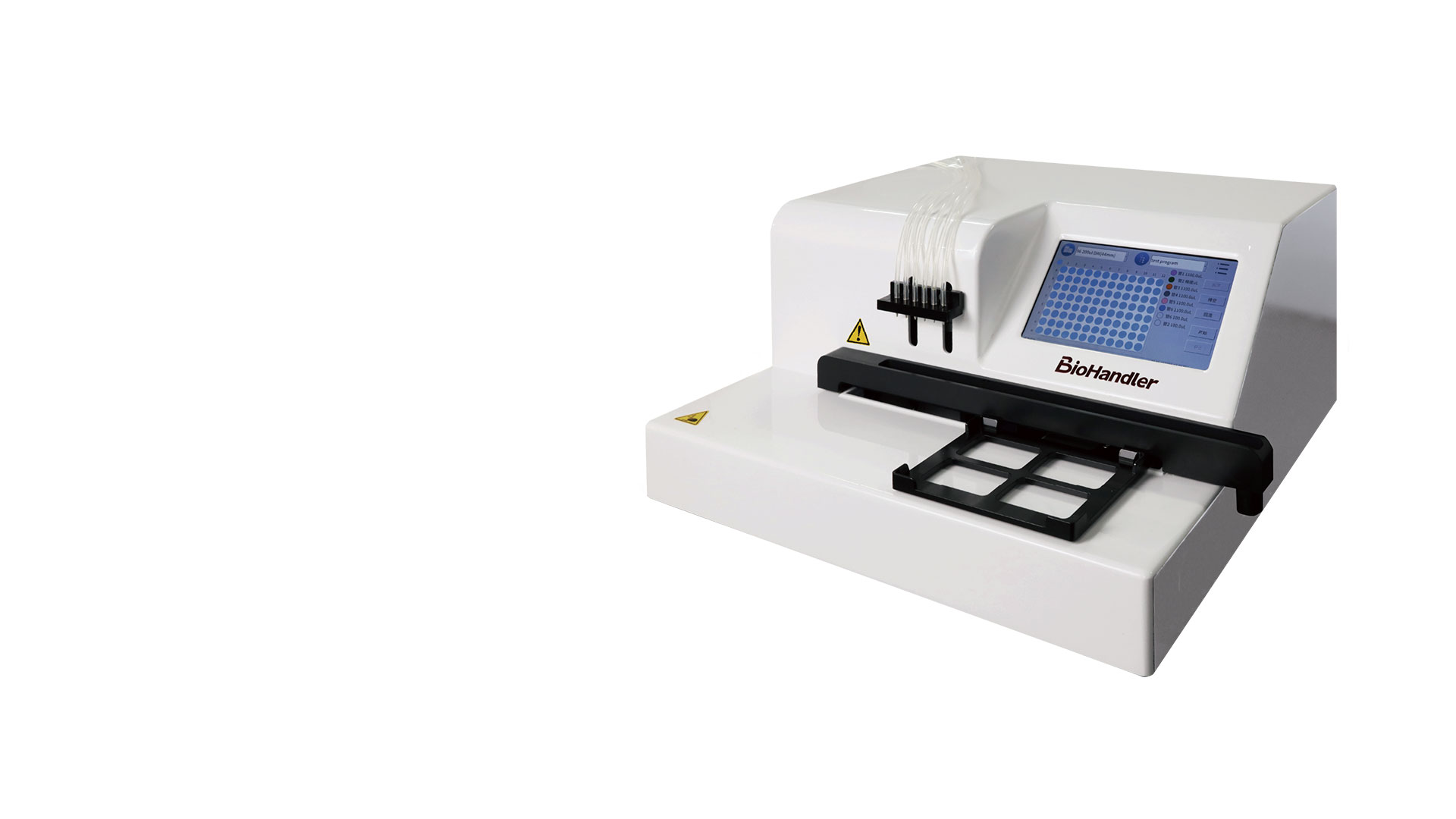

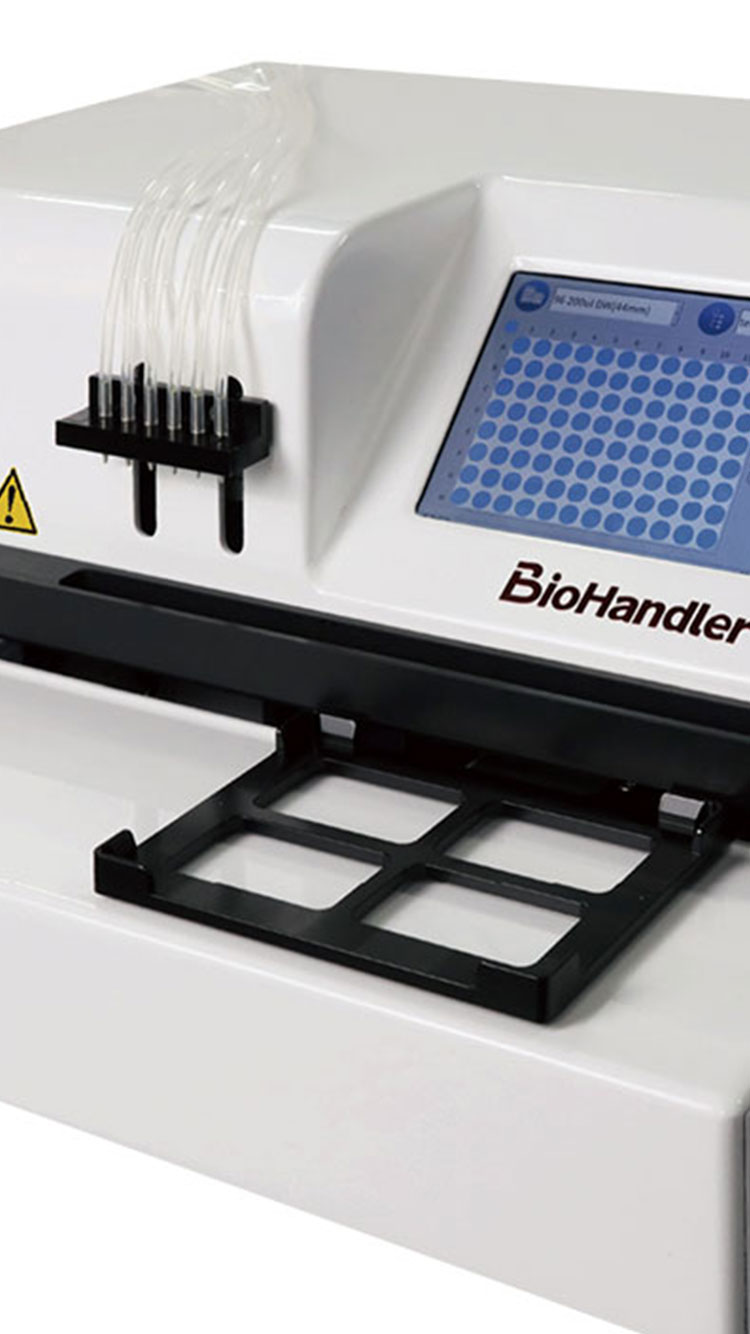

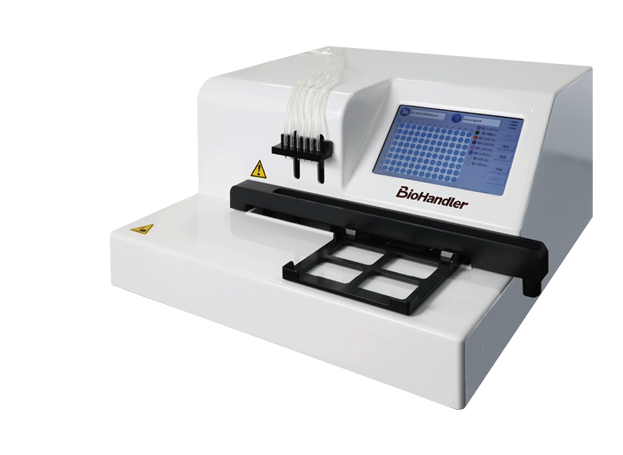

ARCO high-accuracy microliter dispenser is a benchtop device designed specifically for users who need to dispense large amounts of microliter-volume liquid. With the high-accuracy peristaltic pump, it can dispense into a variety of vessels with high flexibility, speed and precision, suitable for multiple dispensing applications. The dispenser comes with touchscreen display and intuitive interface. It is versatile and easy to operate, and has a compact footprint and sleek design. Its tubing set is easy to disassemble for sterilization, making it the best choice for dispensing a wide variety of liquids, such as reagents and culture media.
Flexible and versatile

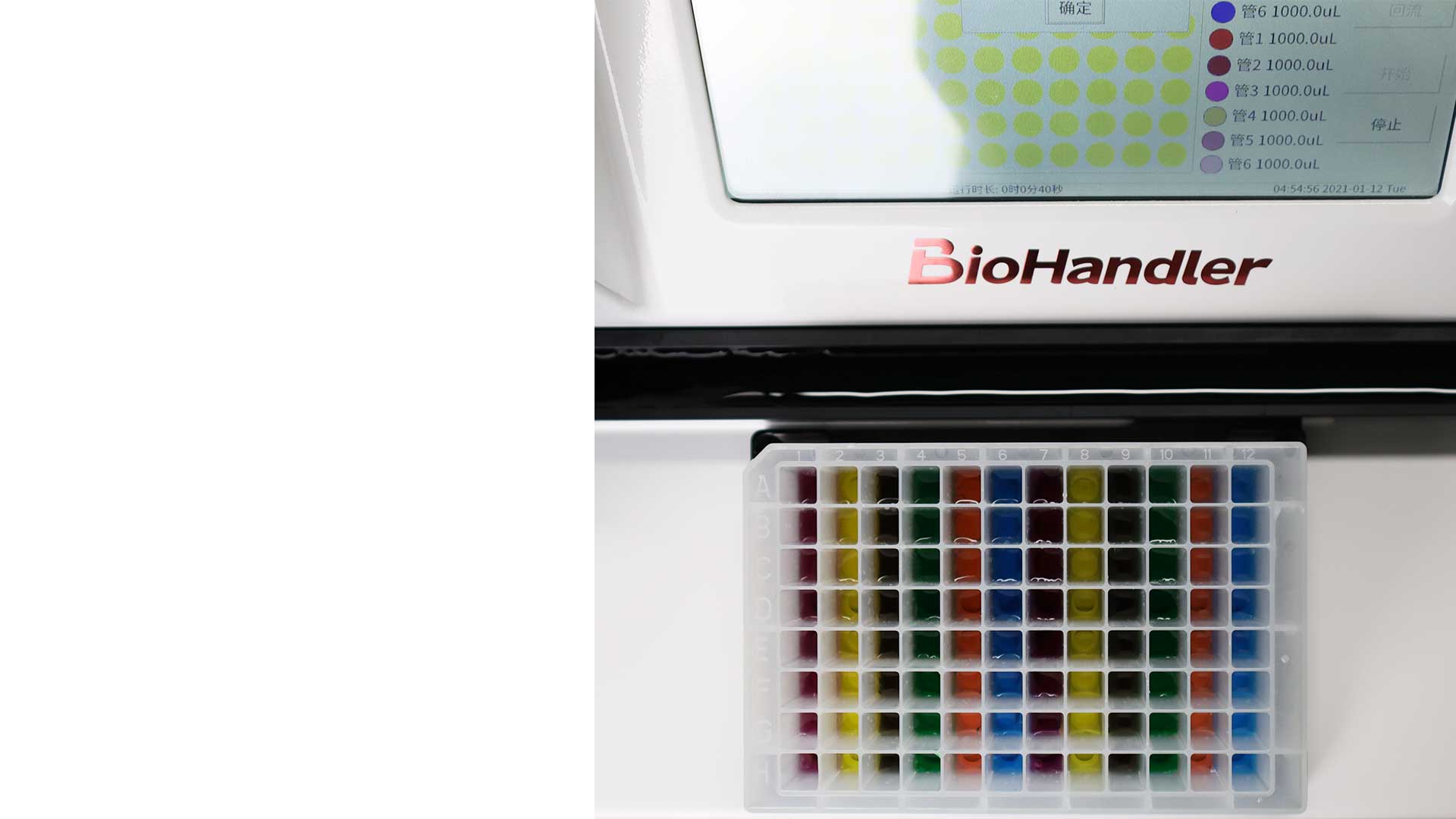

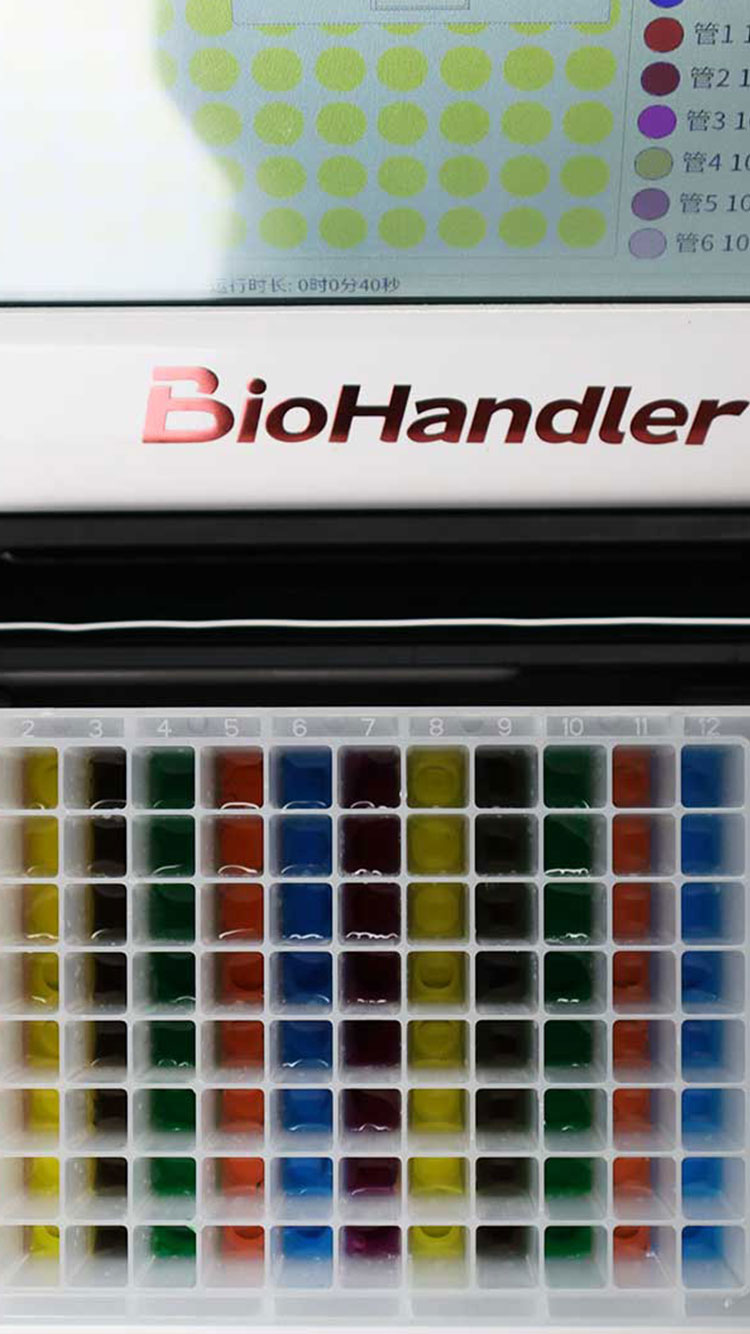

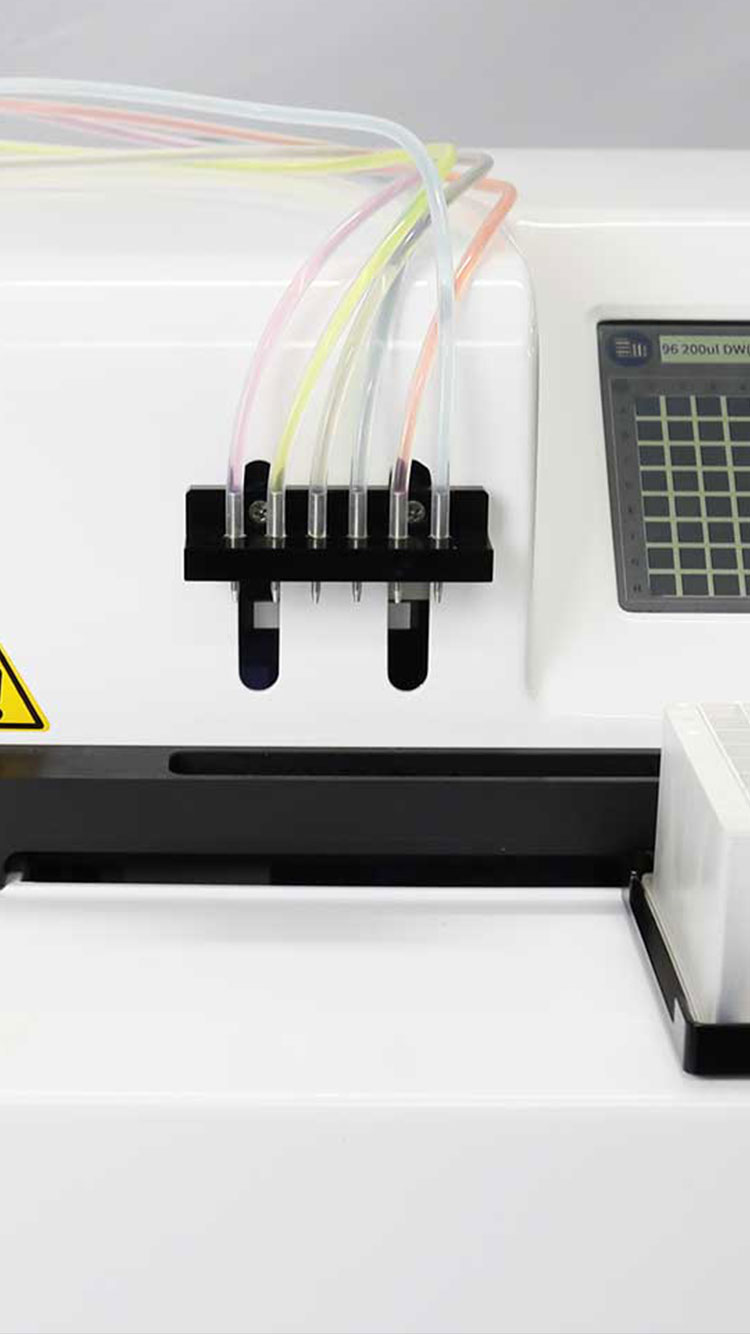

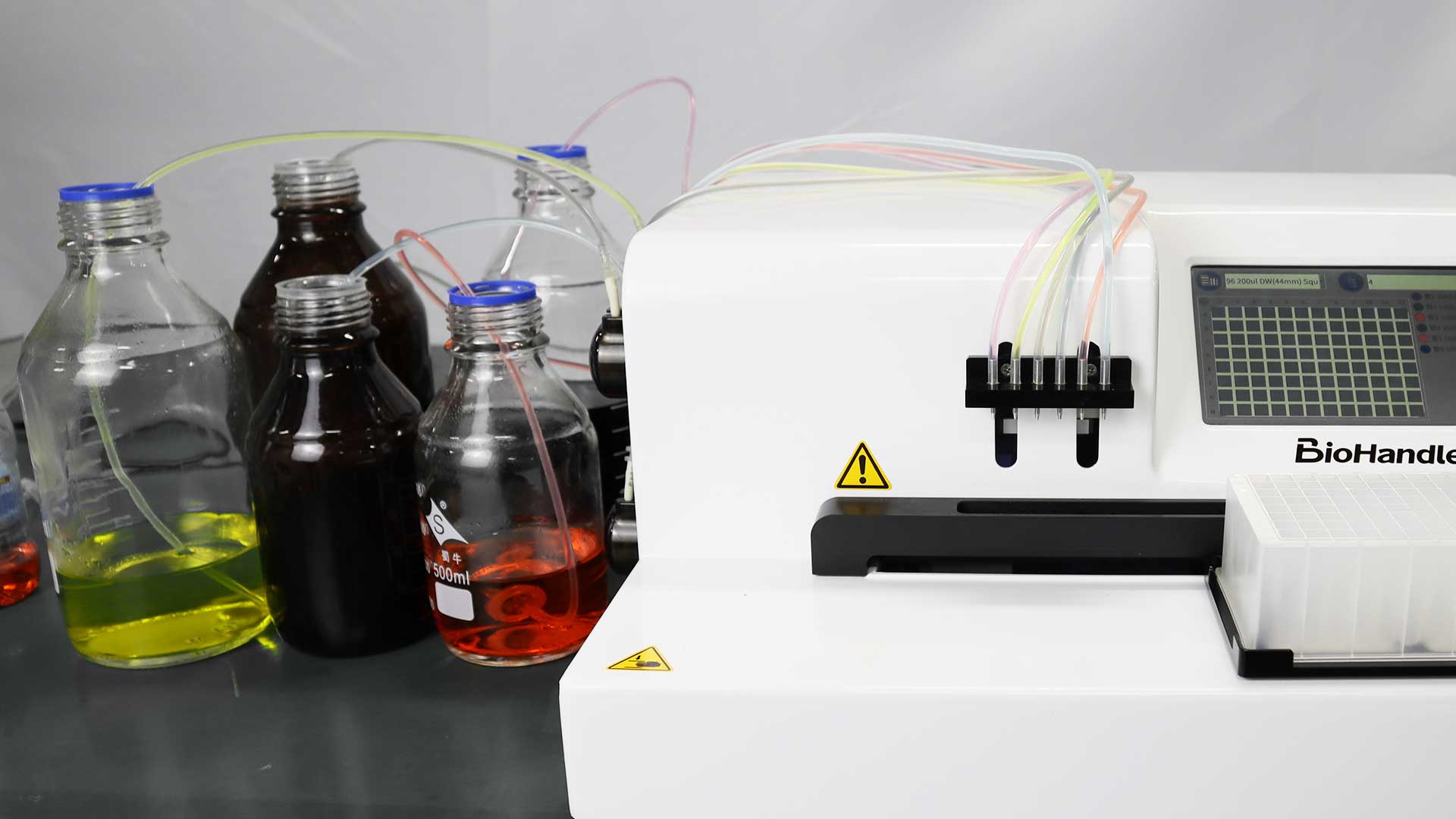

Can set dispensing volume and select well position at discretion. Supports gradient dispensing and 4 modes. Can simultaneously dispense 6 different liquids and select any combination of these 6 tubing sets
Rapid and precise
Supports emptying of the tubing and liquid backflow. High dispensing speed (less than 30 seconds for 96-well plate) and high precision; tubing sets are available in multiple formats, providing a uniform error. Free programming allows for customizable workflows
Safe and reliable

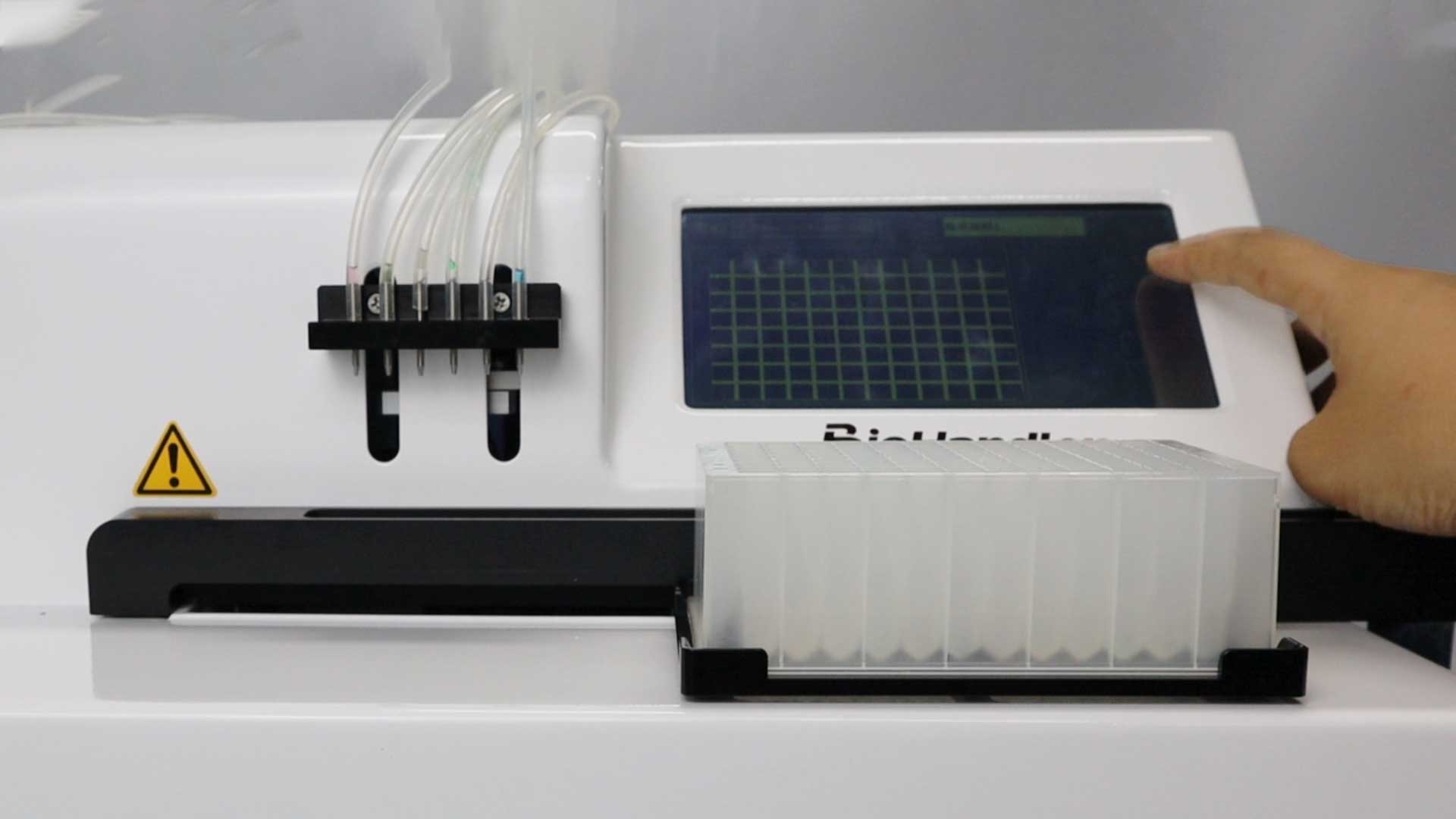

Compact footprint allows for its placement inside a clean bench or a biosafety cabinet. Tubing set is easy to replace and autoclavable. Simple and intuitive interface makes operation easy and convenient
Integration
Supports automation integration and customization is available
Technical Specifications
| Tubing set and dispensing head | Independent 6 channels; can be individually replaced and autoclaved multiple times |
| Plate positions | 1 |
| Compatible consumables | 6/12/24/48/96-well plates (plate height: 7-60mm) |
| Volume range | 10-10000μL |
| Dispensing speed | T13 tubing: Maximum 0.33mL/s T24 tubing: Maximum 1mL/s T35 tubing: Maximum 3mL/s |
| Dispensing accuracy | T13 tubing: ±2% at 50μL volume T24 tubing: ±2% at 100μL volume T35 tubing: ±2% at 200μL volume |
| Communication interface | Serial RS232，USB |
| Dimensions (W×D×H) |
430×395×210mm |
| Weight | 16kg |
| Power | 110-240VAC，50/60Hz，350W |
| Tubing set | ARCO T13 tubing: Set of 6 ARCO T24 tubing: Set of 6 ARCO T35 tubing: Set of 6 |
| Tip | Volume (μL) | Precision (≤CV%) | Accuracy (±%) |
|---|---|---|---|
| 50μL | 1 | ≤5% | ±8% |
| 10 | ≤2% | ±3% | |
| 2000μL | 2 | ≤5% | ±6% |
| 50 | ≤1% | ±2% | |
| 1000μL | 100 | ≤1.5% | ±1% |
| 500 | ≤1% | ±1% |
