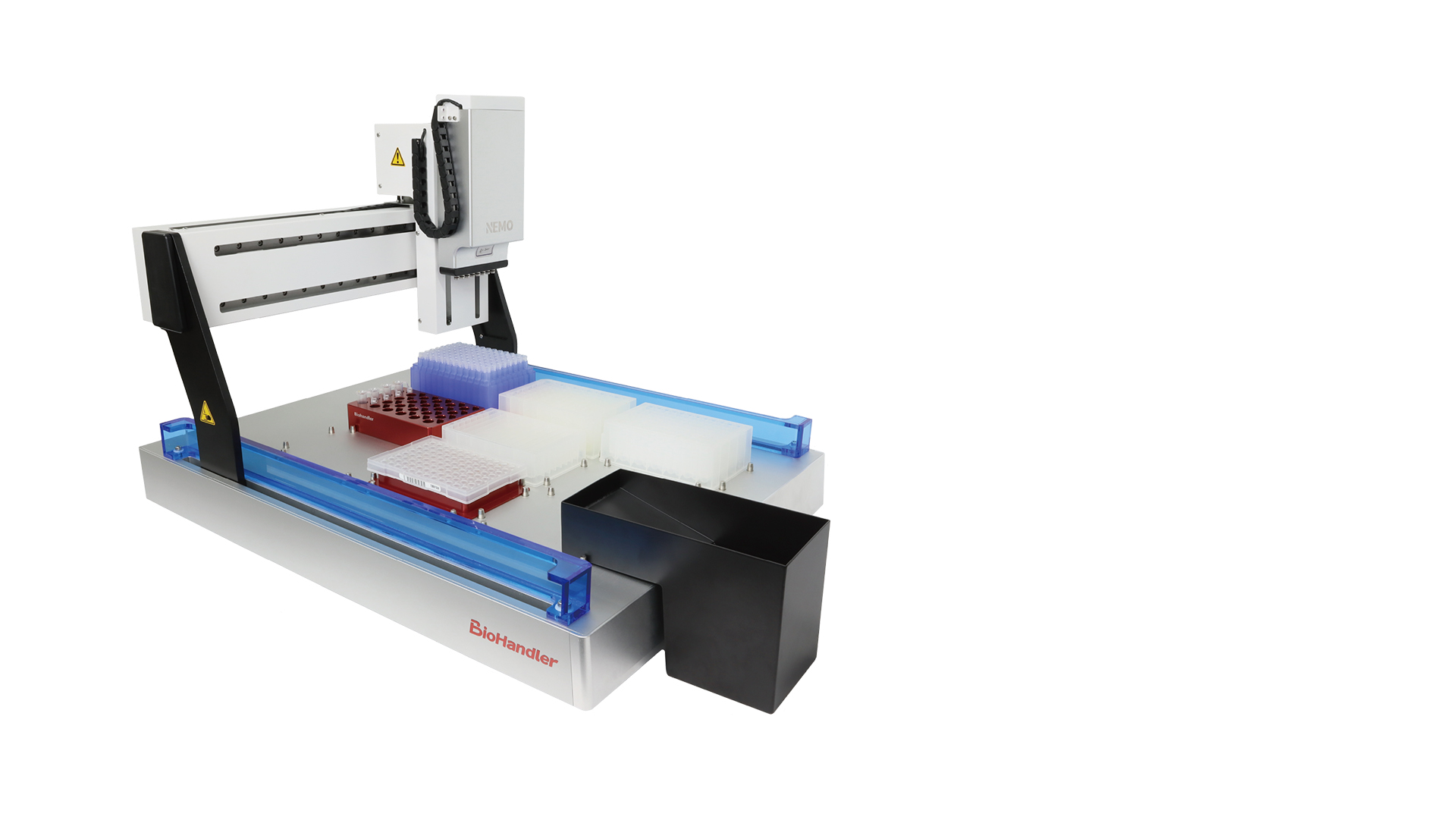

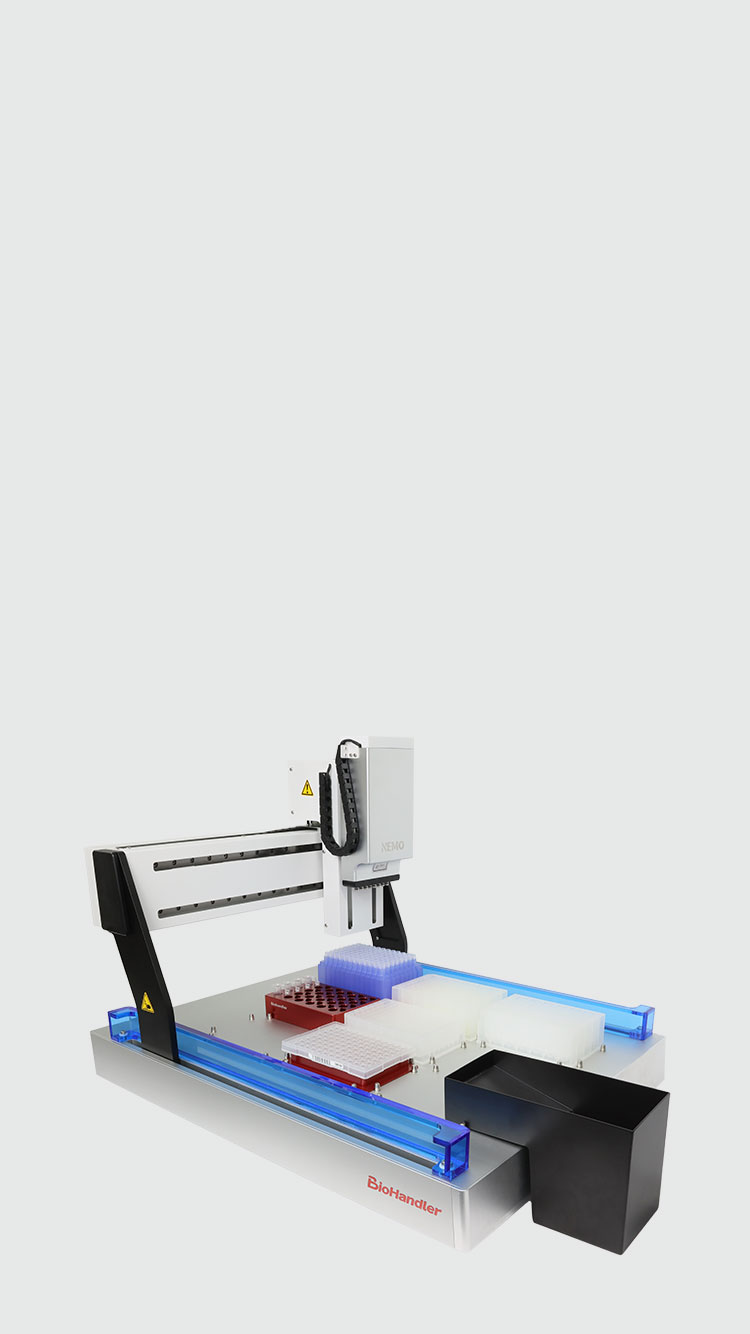

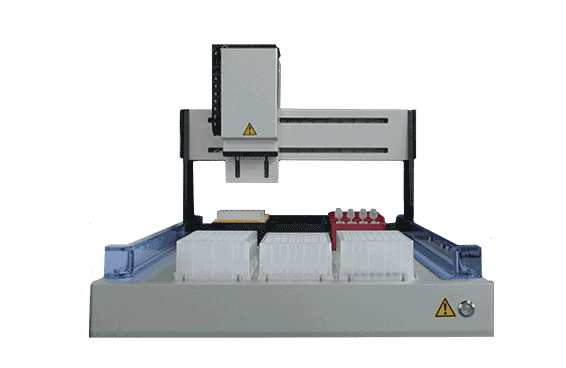

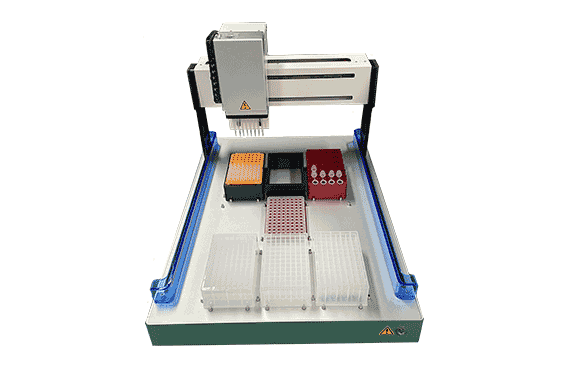

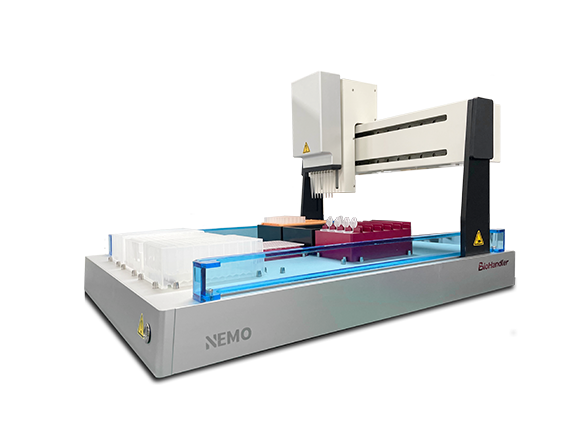

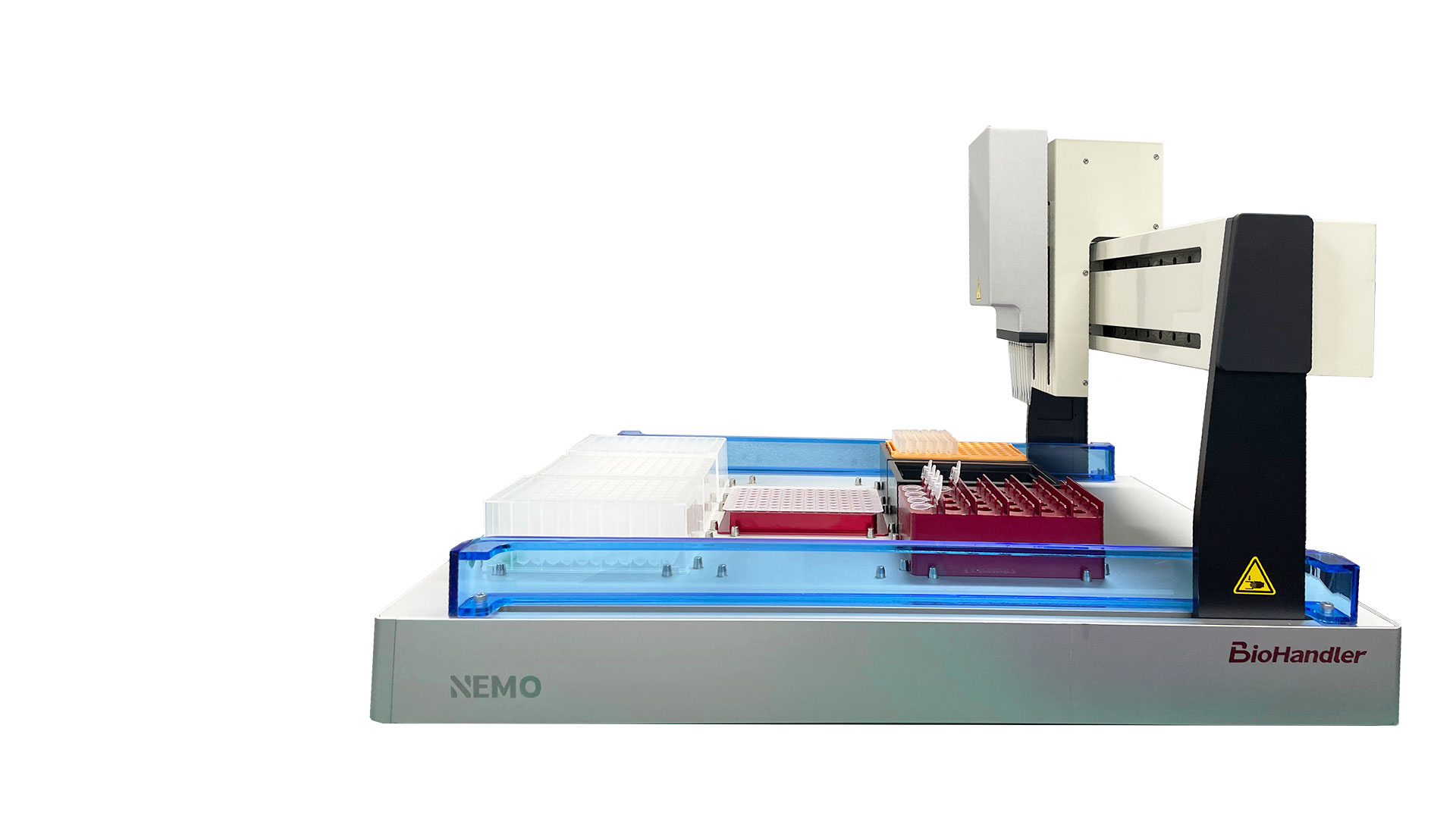

NEMO BSA
Pipetting Workstation
The compact yet powerful system is specifically designed for use in limited space such as biosafety cabinet, clean bench and fume hood. It boasts great load-bearing capacity and can automatically complete complex liquid-handling work in restricted space.
Compact footprint

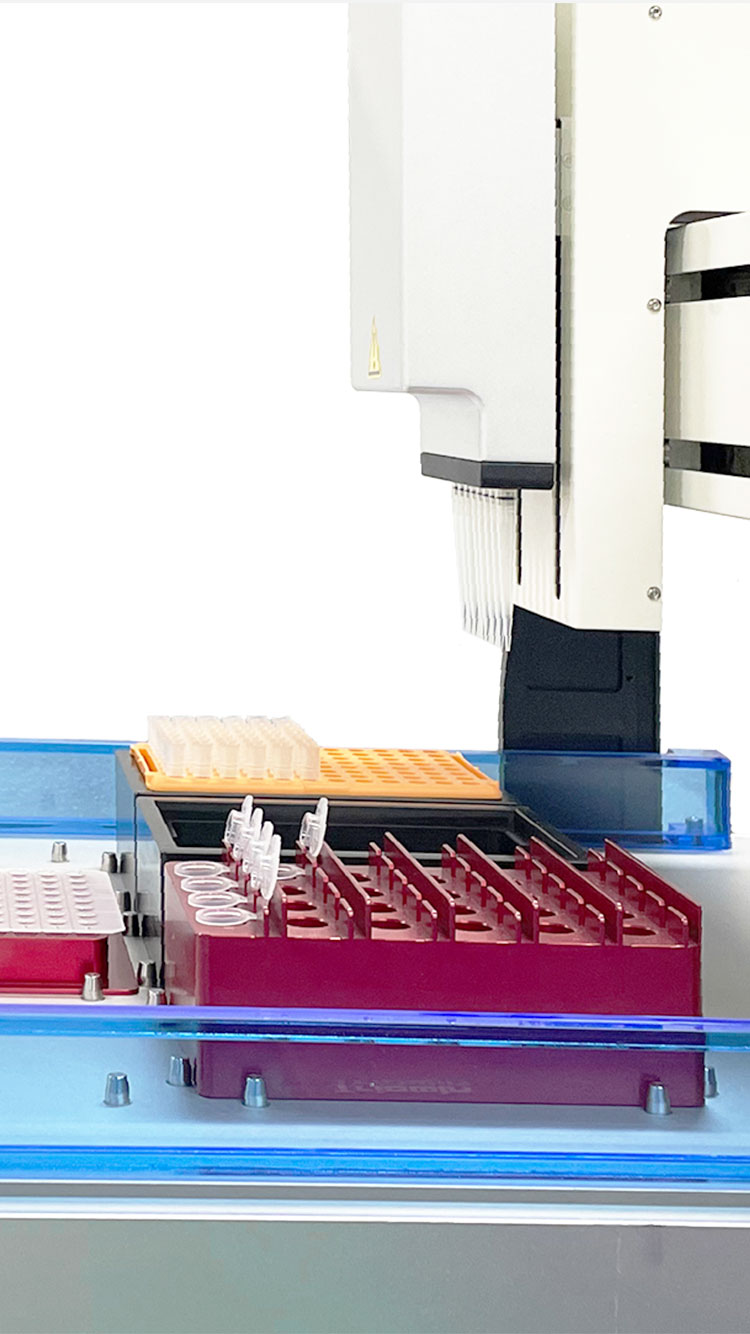

96-channel head allows efficient pipetting. Three different heads cater to different volumes, enabling high degree of precision
Application scenario
Cell seeding
Compound screening
Serial dilution
Technical Specifications
| Product name | NEMO BSA Pipetting System |
| Volume range | 1-50μL, 1-70μL, 2-200μL |
| Pipetting head | 1/8 channels, customization is available |
| Compatible tips | Automation tips |
| Compatible consumables | Blood tubes, EP tubes, SBS standard 96/384-well plates |
| Plate positions | 9 |
| Features | Supports reaction setup, rearrangement of compounds, optimization of conditions and ELISA, etc. |
| Software | Visual interface means there is no need for learning Python programming language. Supports import of pipetting parameters from Excel files |
| Dimensions (W×D×H) | 572×440×393mm |
| Weight | 18.5kg |
| Power | AC100-240V, 50/60Hz, 450W |
| Operating environment | Operation ambient temperature: 10°C~40°C Relative humidity: 20%~80% |
| Tip | Volume (μL) | Precision (≤CV%) | Accuracy (±%) |
|---|---|---|---|
| 50μL | 1 | ≤5% | ±8% |
| 10 | ≤2% | ±3% | |
| 2000μL | 2 | ≤5% | ±6% |
| 50 | ≤1% | ±2% |
