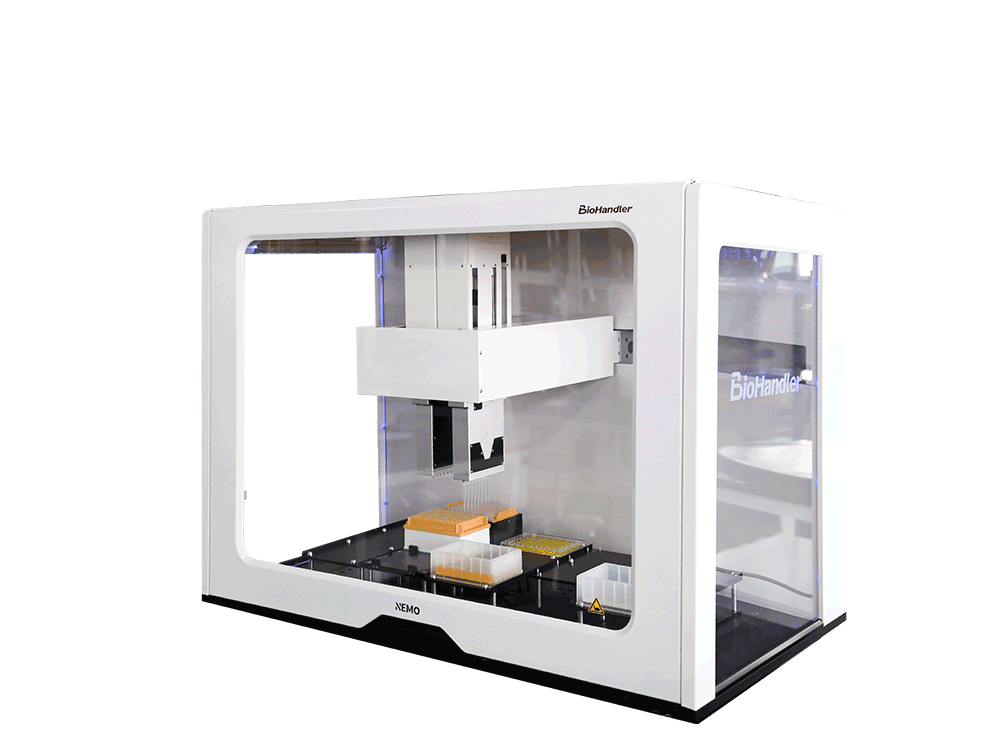

NEMO
Full-function Pipetting Workstation
Watch the full video

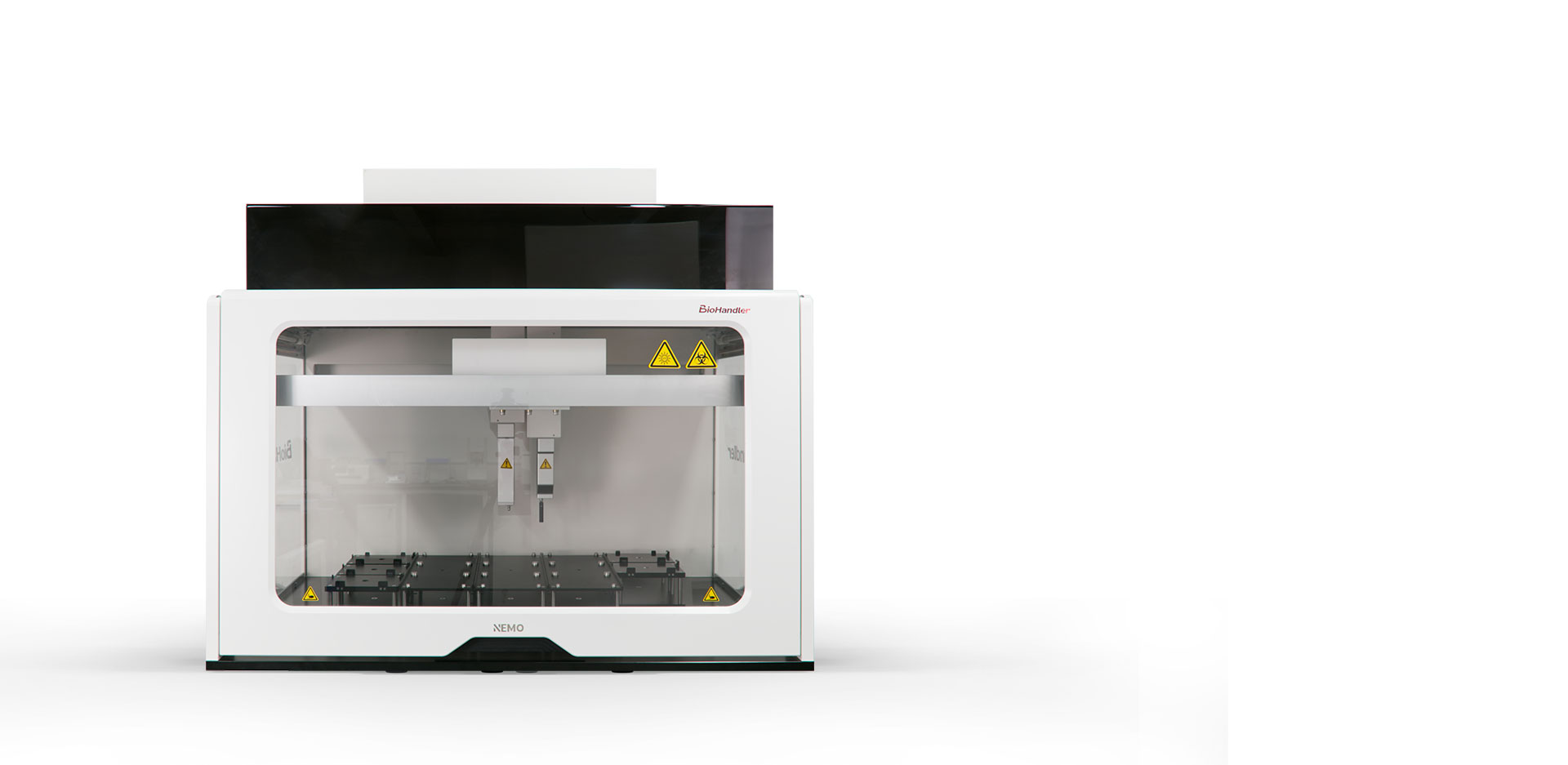

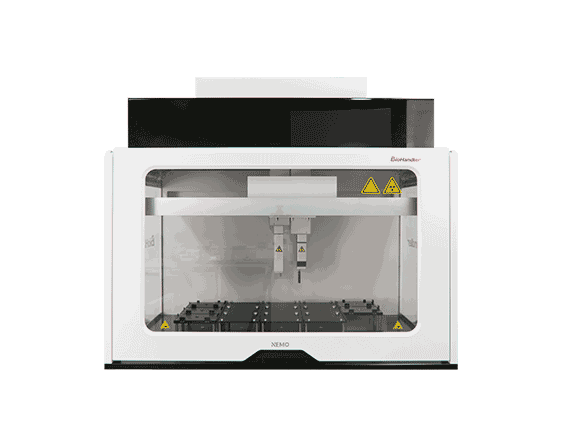

NEMO
Full-function Pipetting Workstation

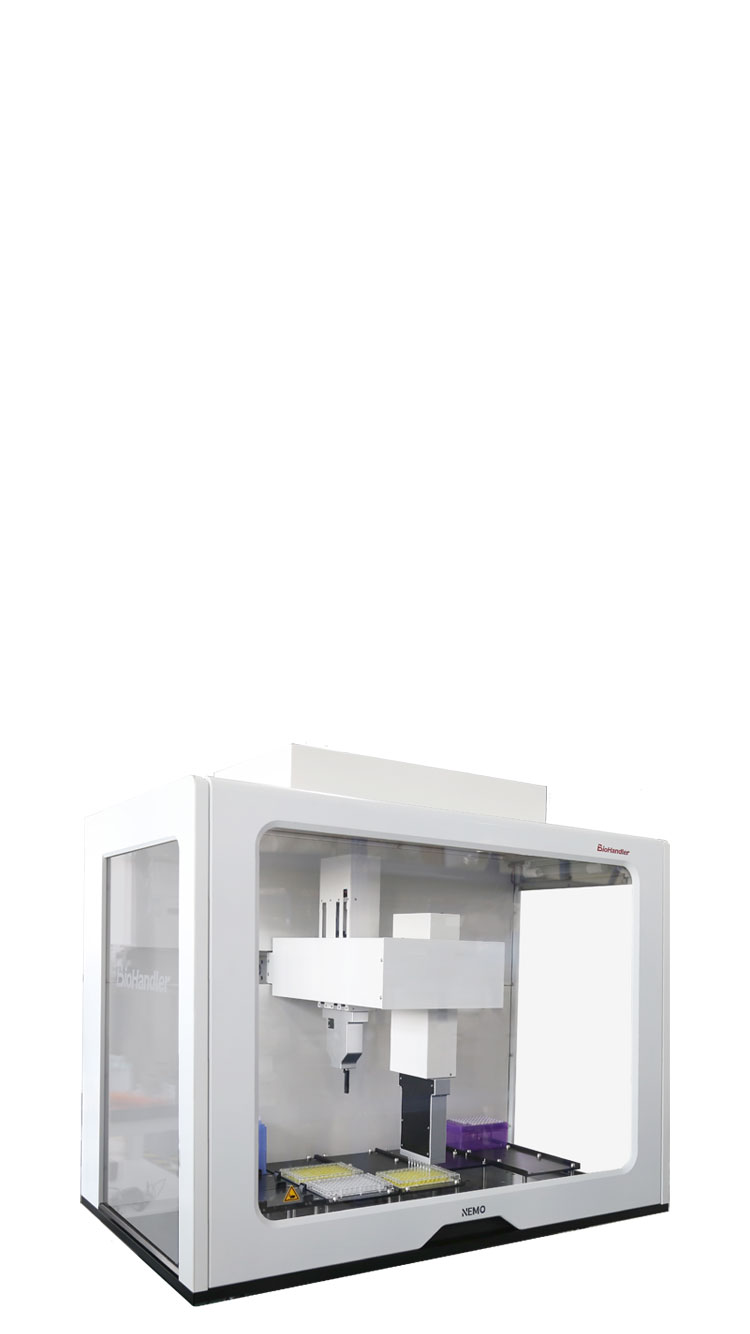

NEMO full-function pipetting workstation is a sleek, compact pipetting system featuring fast move, robust performance and liquid level detection. With flexible configuration including single arm with single head, single arm with dual heads, and dual arms with dual heads, the system can complete the vast majority of repetitive and tedious liquid-handling steps automatically and efficiently, and its standardized workflow helps reduce the risk of human error.

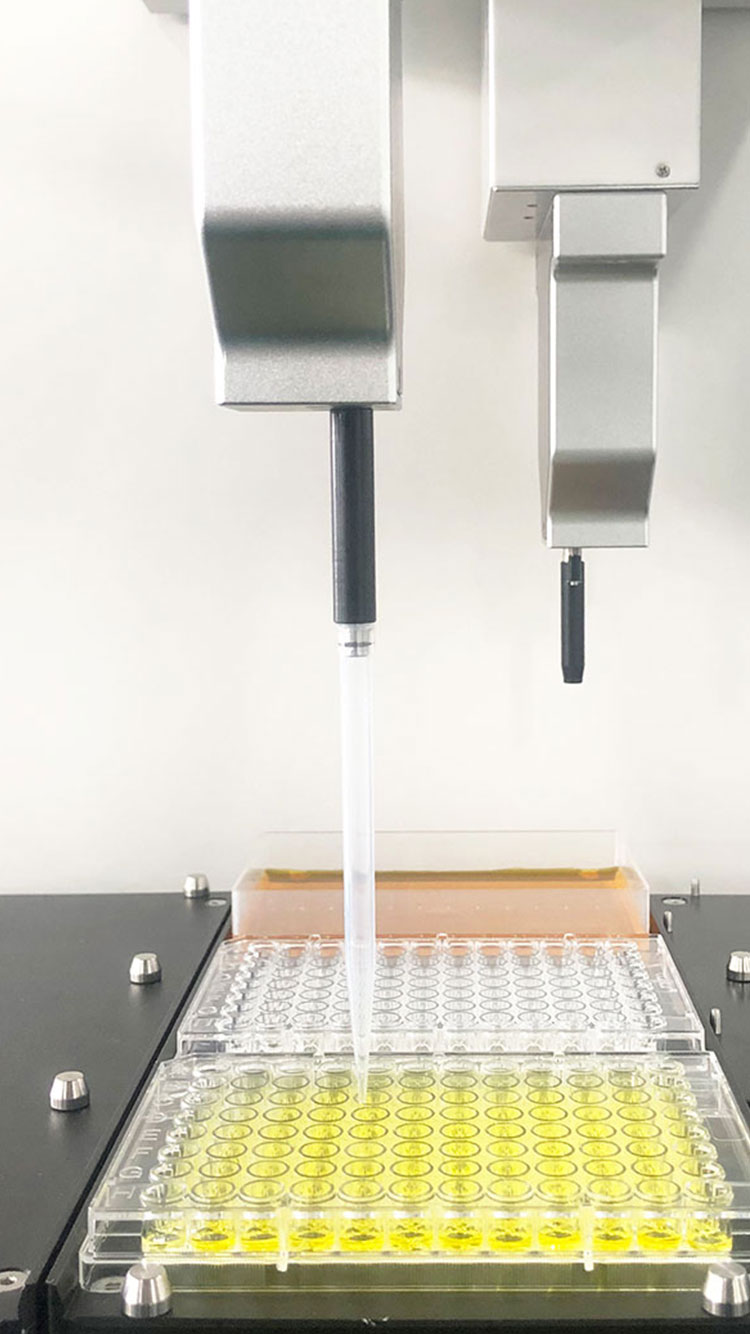

Precise pipetting

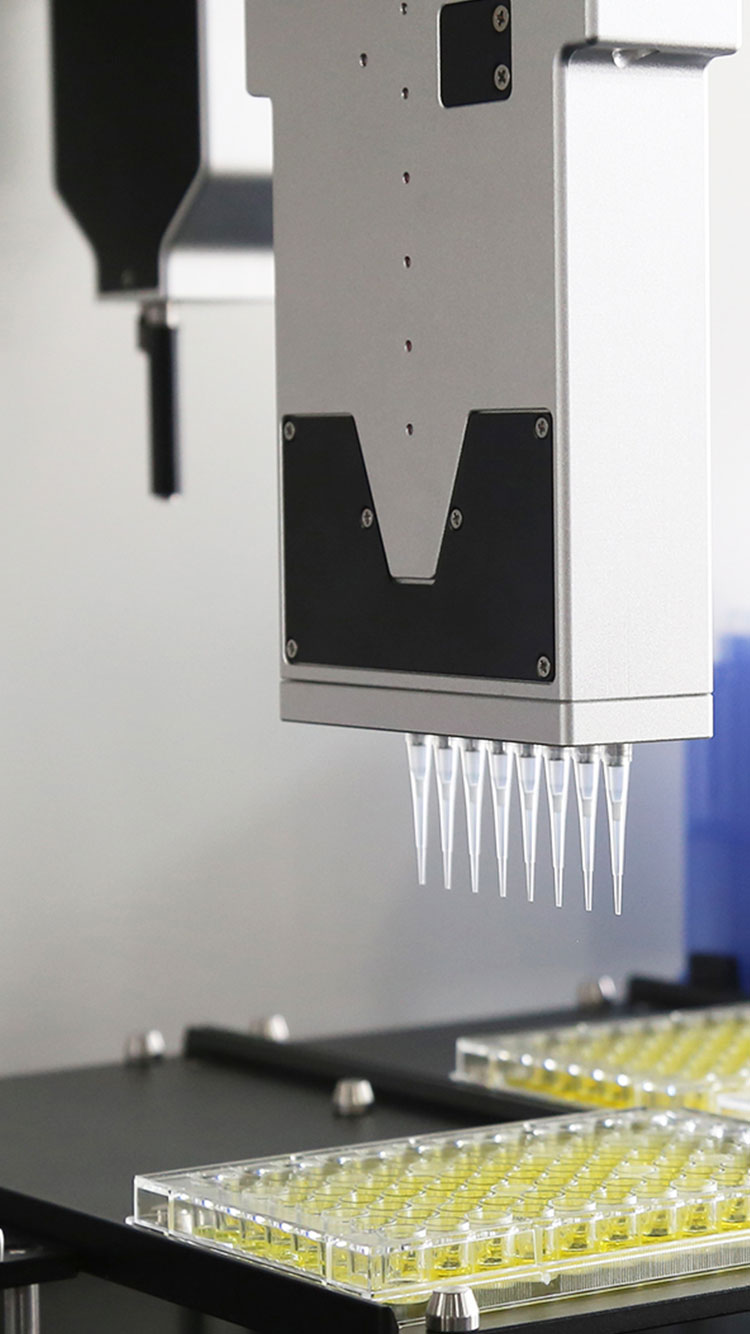

Equipped with tip sensor and liquid-level detection function to ensure efficient and precise pipetting performed in an automated manner
Easy operation

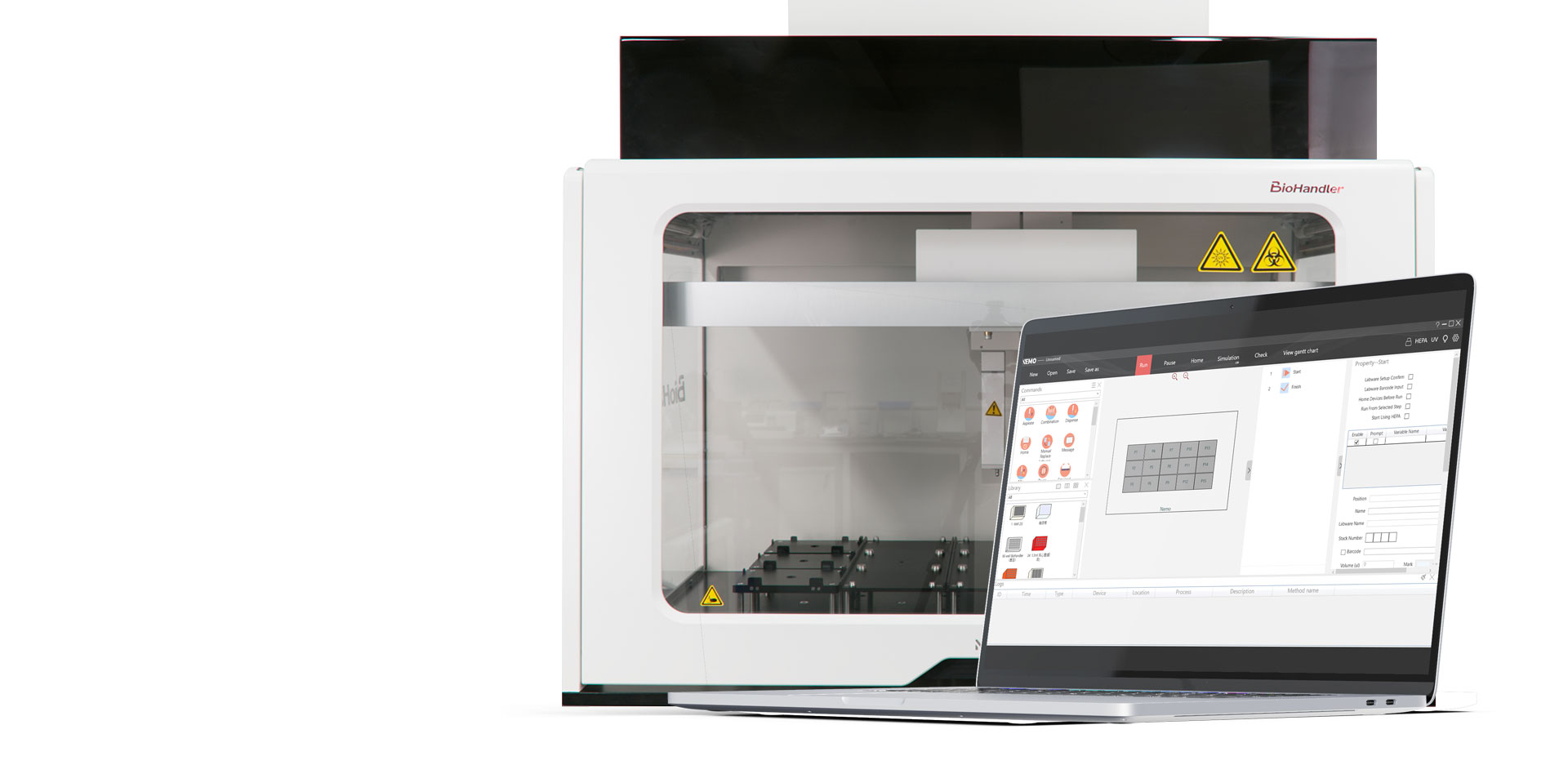

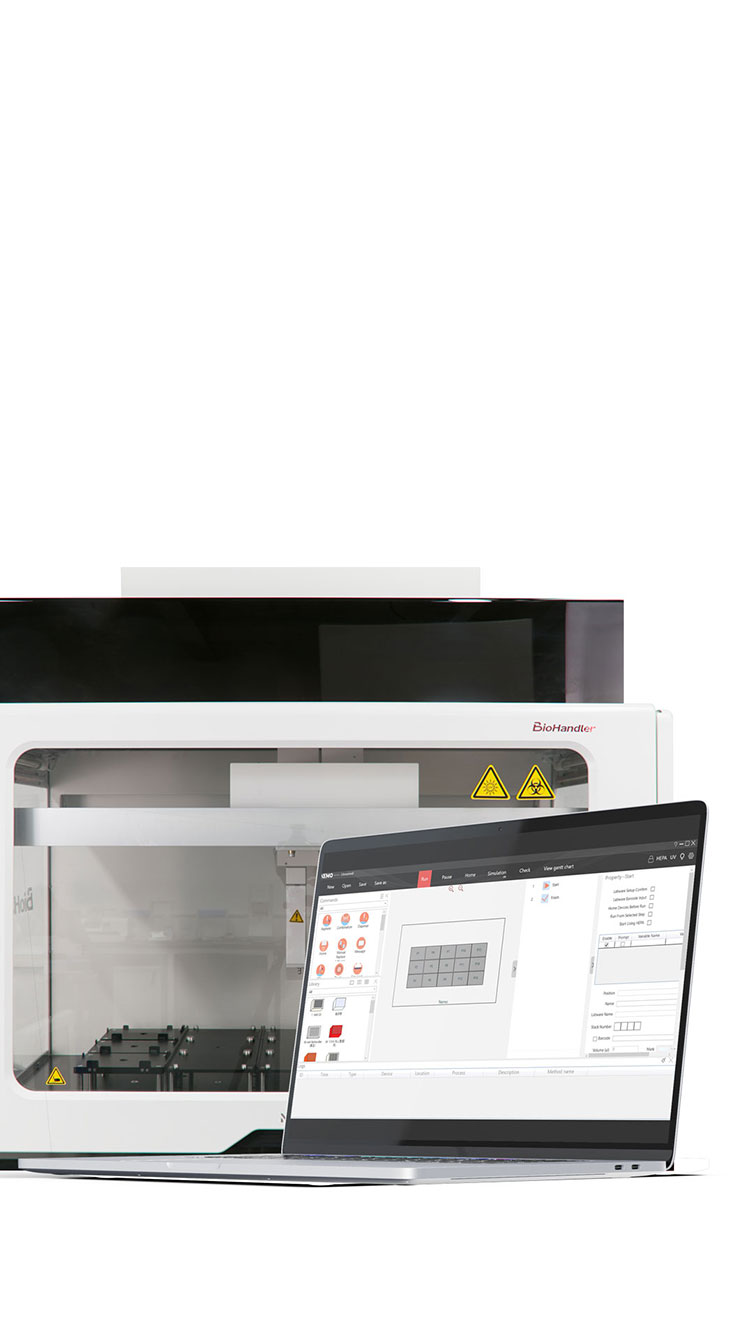

Easy-to-learn control software allows operators to get started within 30 minutes

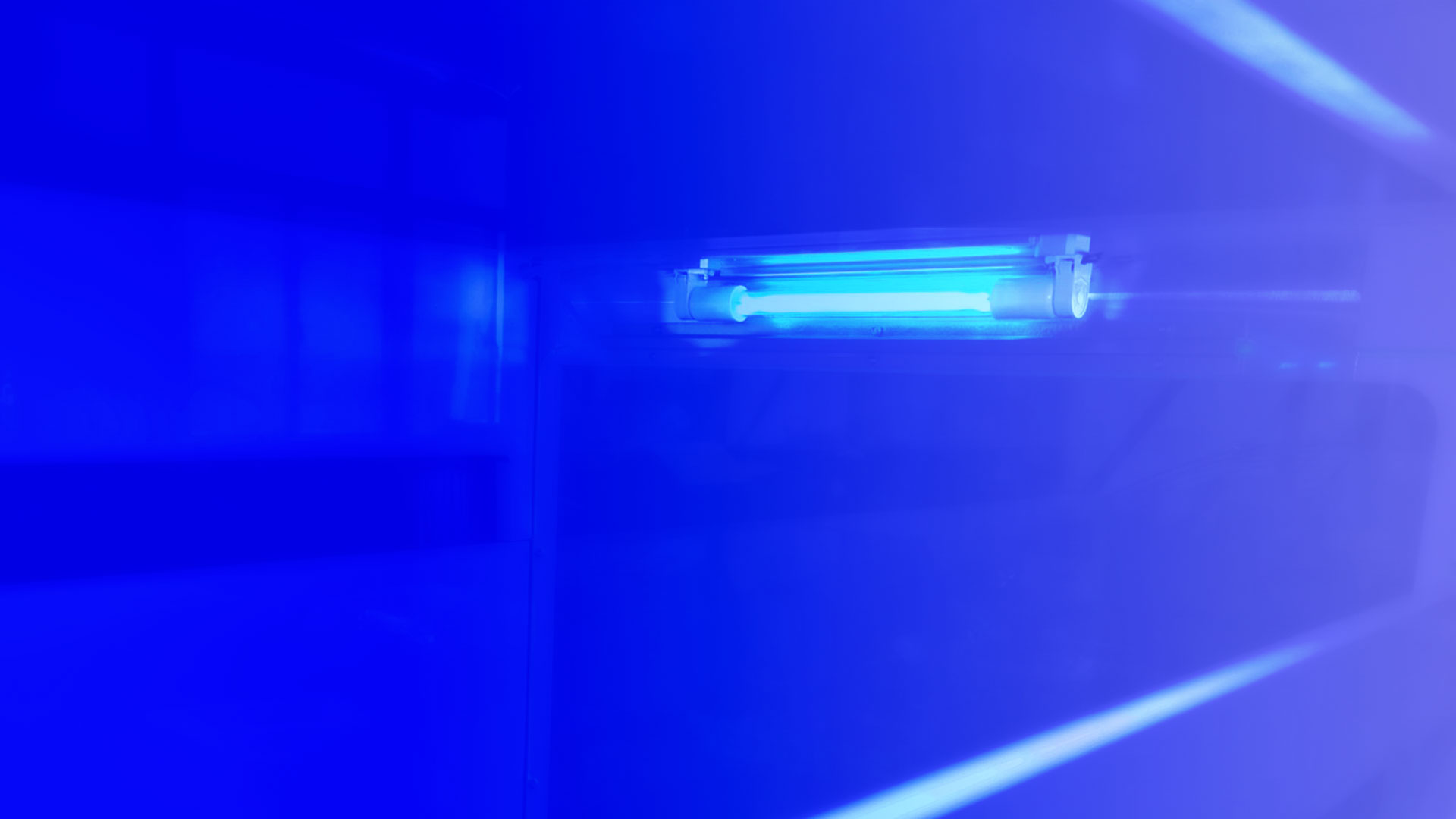

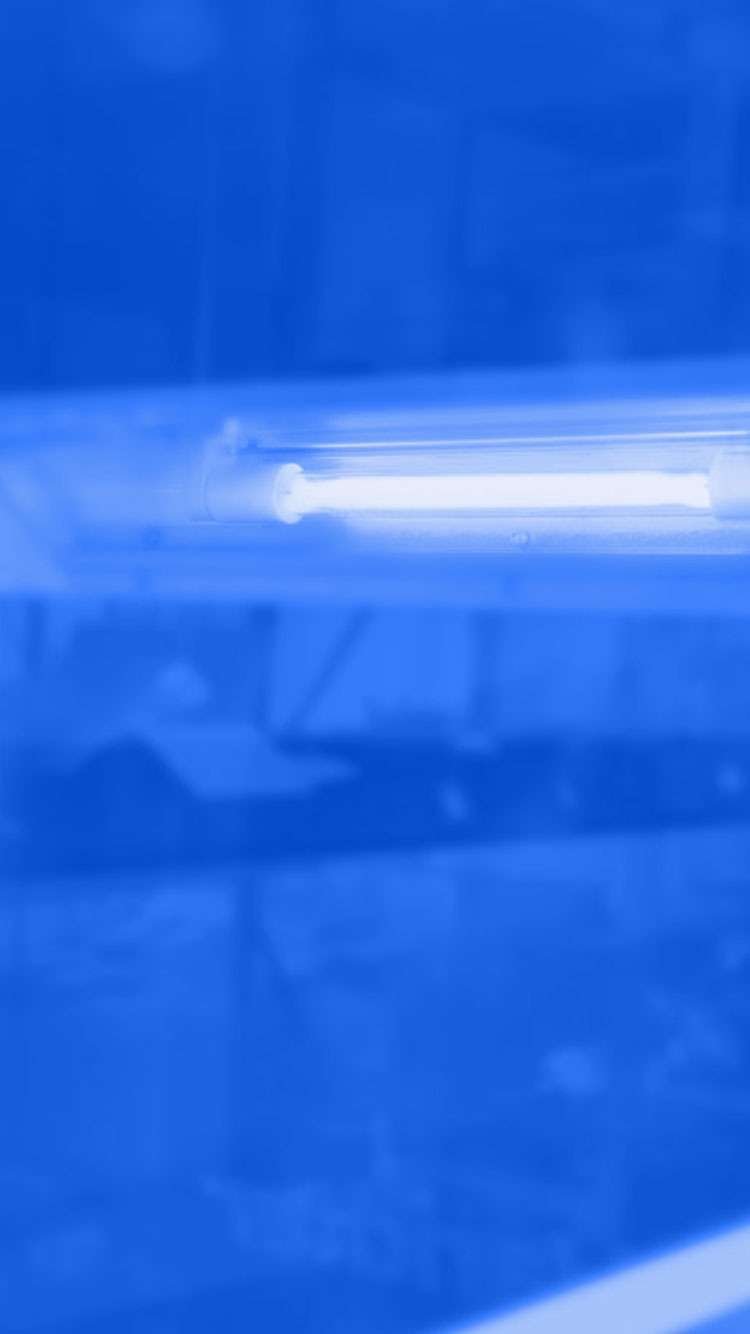

Safe and contamination-free
Optional UV and HEPA sterilization, protecting samples from contamination

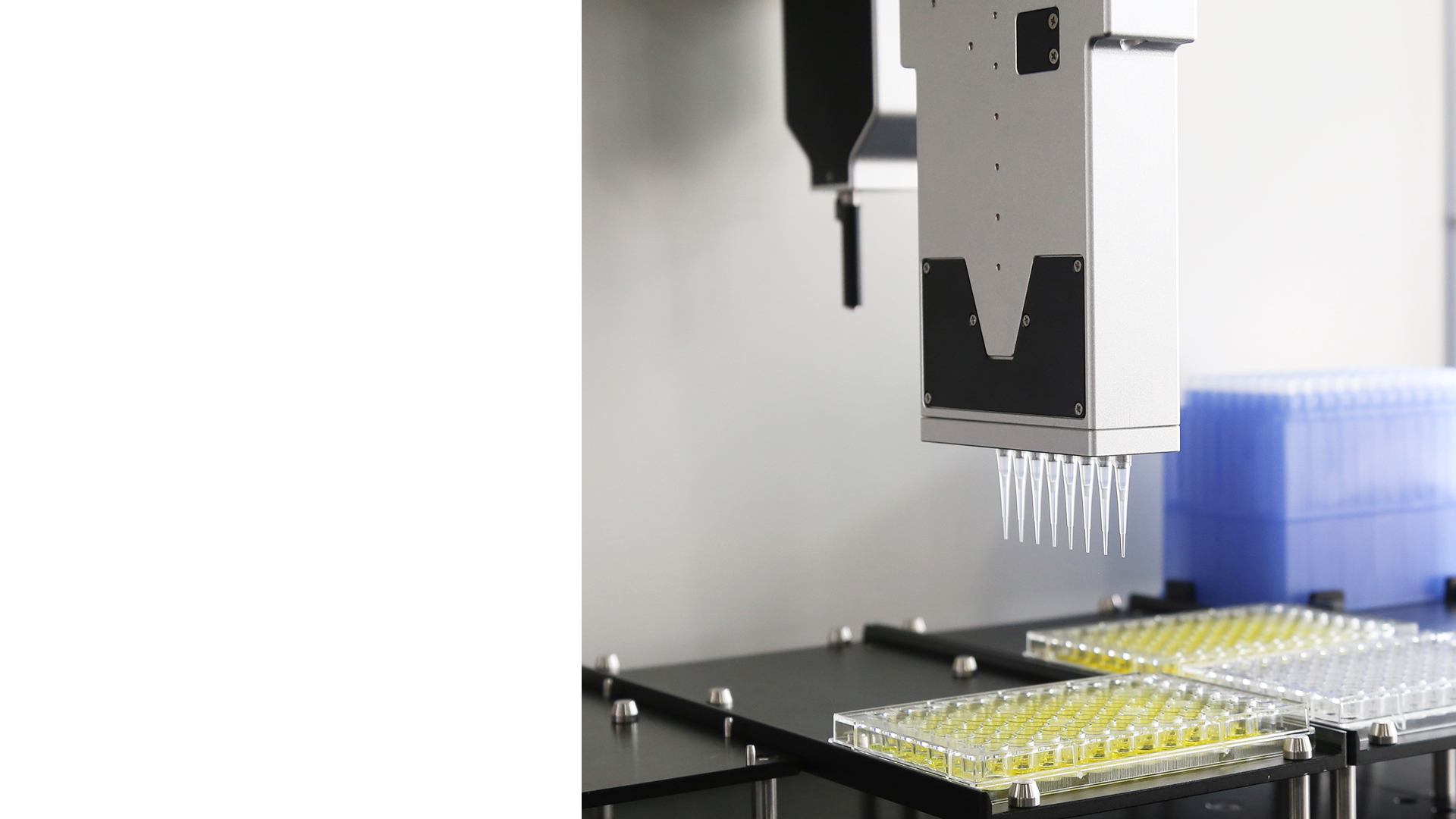

Precise pipetting

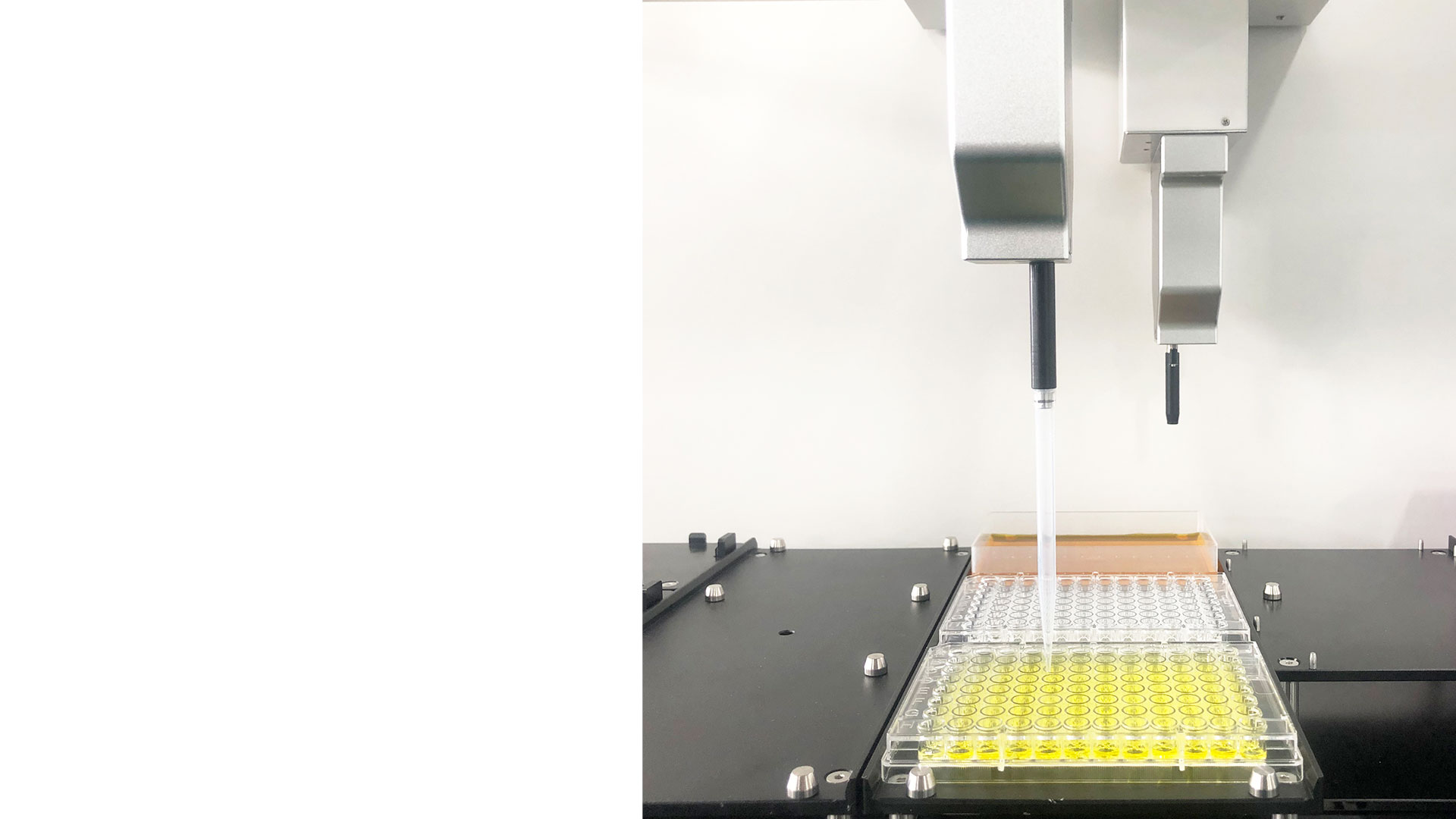

Equipped with tip sensor and liquid-level detection function to ensure efficient and precise pipetting performed in an automated manner
Application scenario
Reagent aliquoting
Serial dilution
Sample rearrangement
Technical Specifications
| Product name | NEMO Full-function Liquid Handling System |
| Volume range | 0.5-30μL, 1-50μL,1-70μL, 2-200μL, 5-1000μL |
| Pipetting head | 1/8-channel, customization is available, pressure-based liquid level detection |
| Compatible consumables | Blood tubes, EP tubes, SBS standard 96/384-well plates |
| Plate positions | 15/24个 |
| Dimensions (W×D×H) | 15-plate: 920×560×820mm 24-plate: 1090×750×820mm |
| Weight | 15-plate: 95kg 24-plate: 131kg |
| Power | AC100-240V, 50/60Hz, 450W |
| Operating environment | Operation ambient temperature: 10°C~40°C Relative humidity: 20%~80% |
| Tip | Volume (μL) | Precision (≤CV%) | Accuracy (±%) |
|---|---|---|---|
| 50μL | 1 | ≤5% | ±8% |
| 10 | ≤2% | ±3% | |
| 2000μL | 2 | ≤5% | ±6% |
| 50 | ≤1% | ±2% | |
| 1000μL | 100 | ≤1.5% | ±1% |
| 500 | ≤1% | ±1% |
