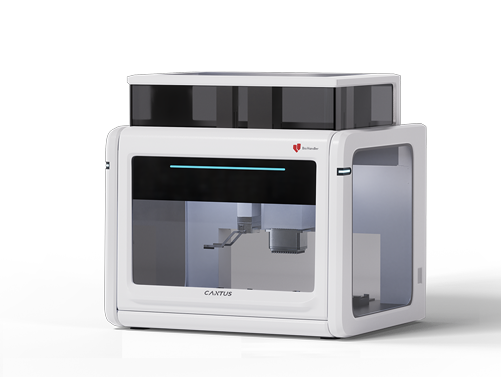

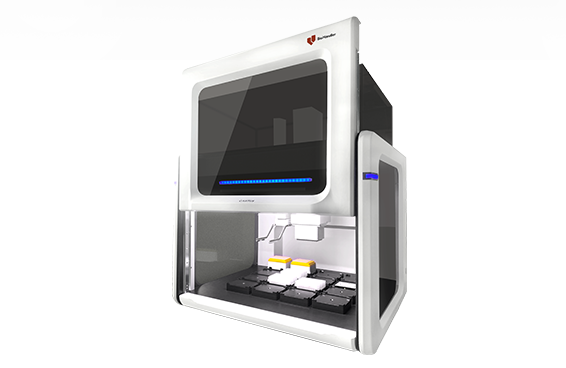

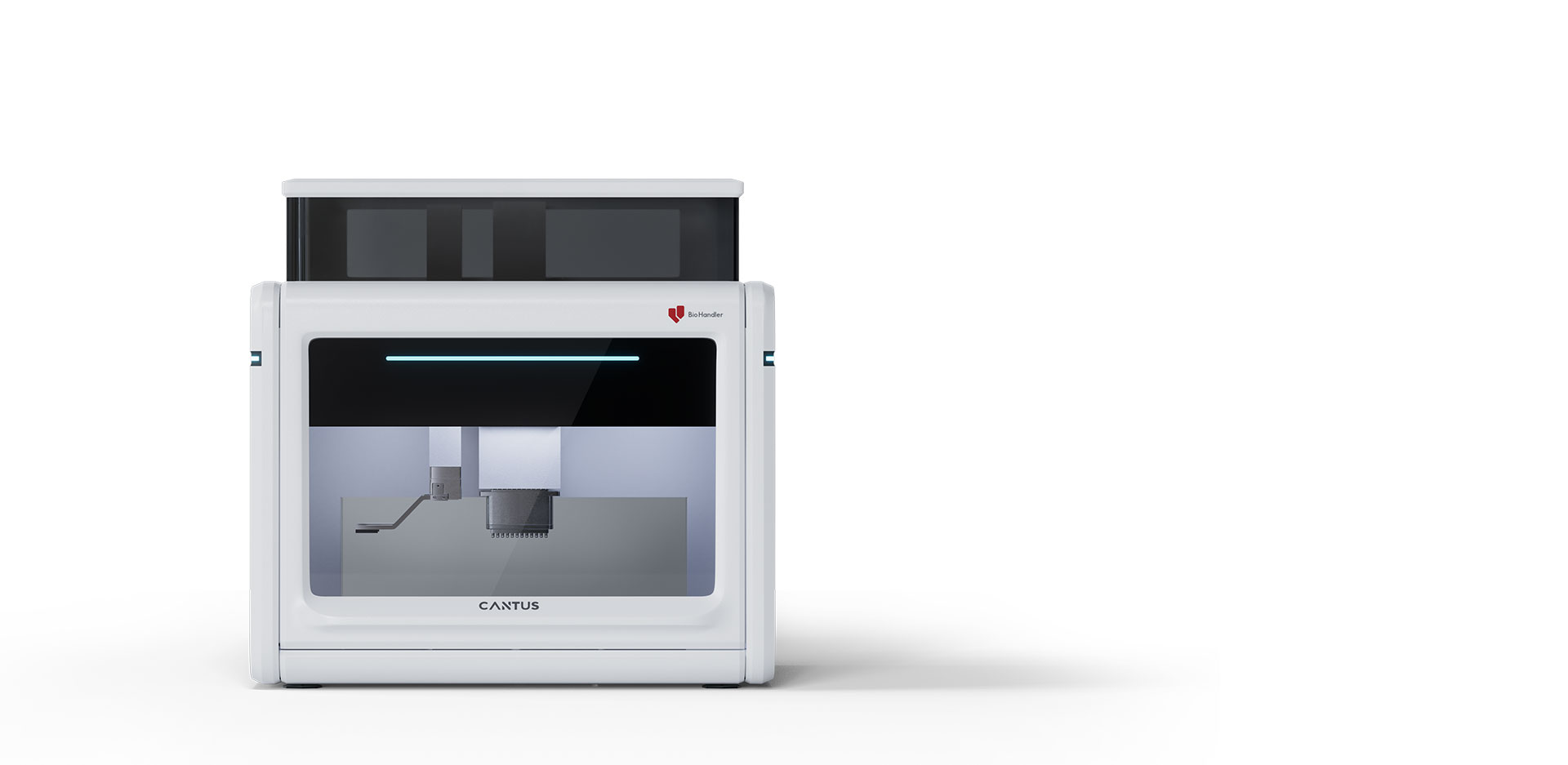

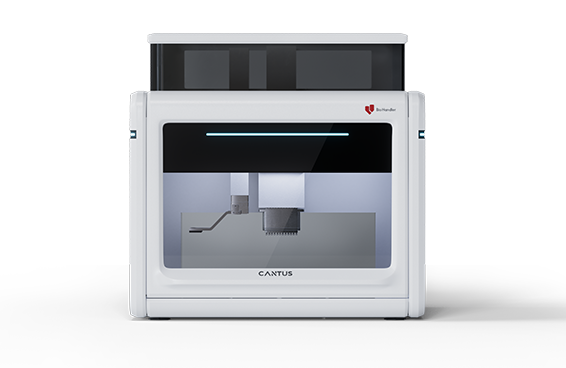

CANTUS SCREEN

High-throughput Liquid Handling System

CANTUS SCREEN high-through liquid handling system is a versatile benchtop liquid-handing system featuring multiple functions, fast move, easy and efficient operation, and precise pipetting. With its modular design, changeable deck layout, customizable pipetting head and gripper and regularly-updated software system, it helps to ensure reliable results in diverse applications. Its CANTUS control software with appealing interface makes it easy to create, edit and run automated programs.

CANTUS SCREEN

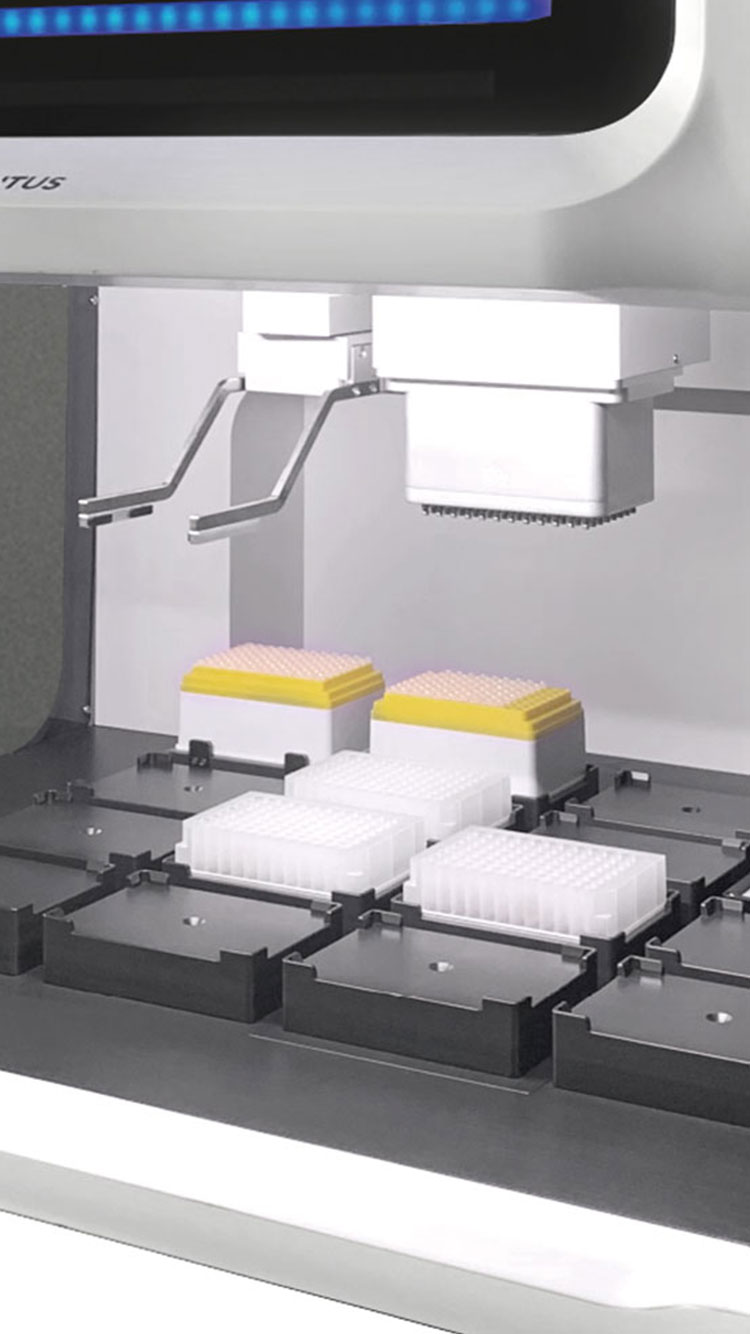

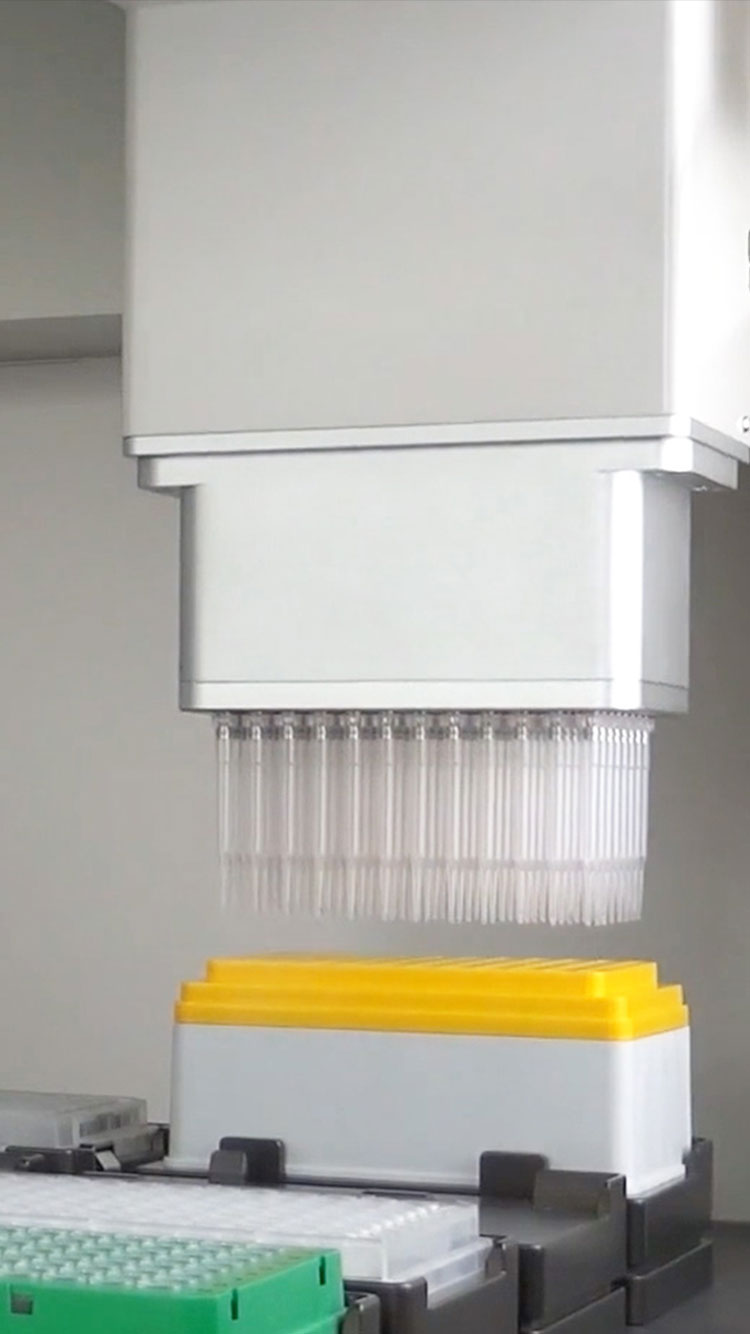

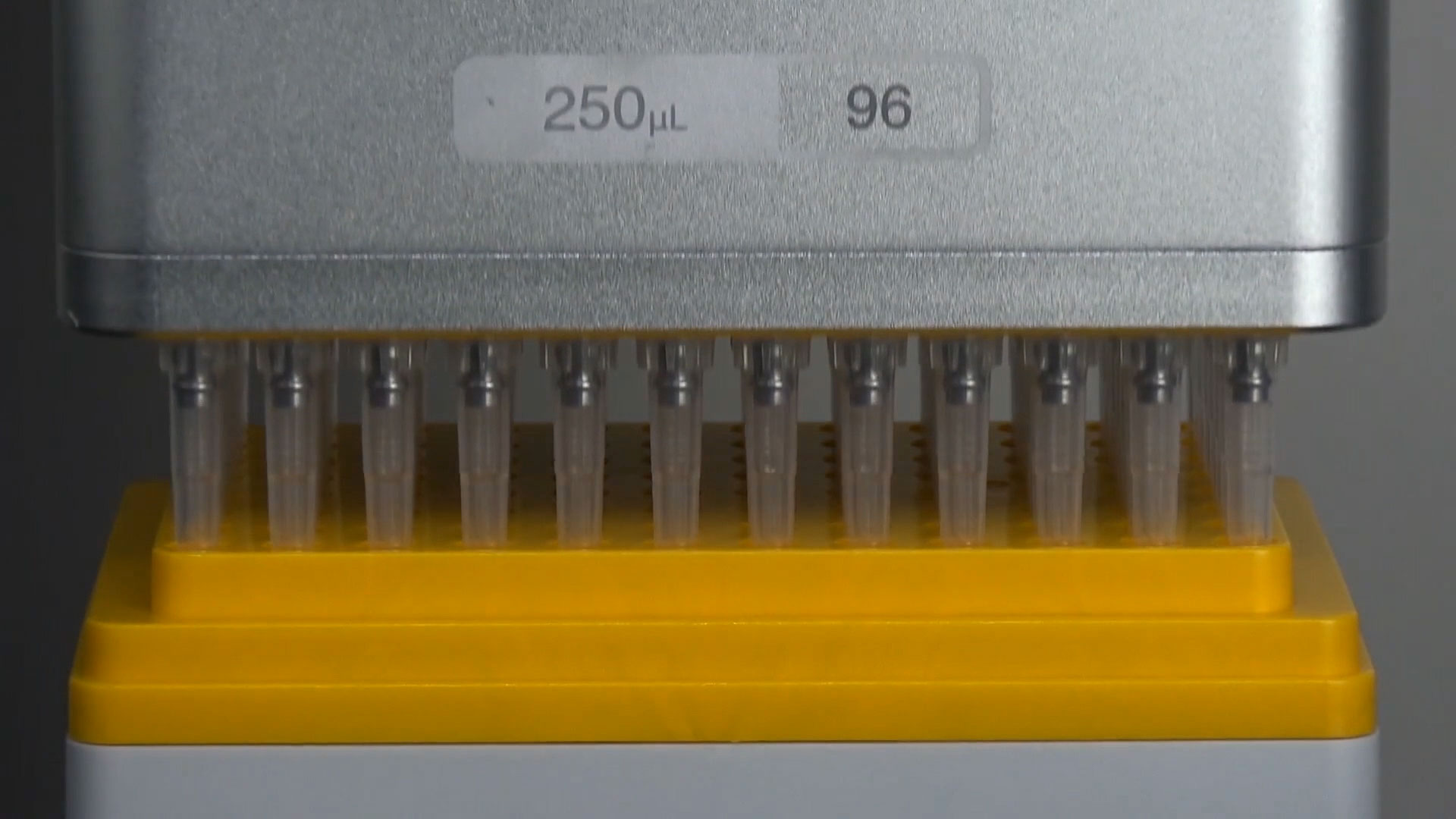

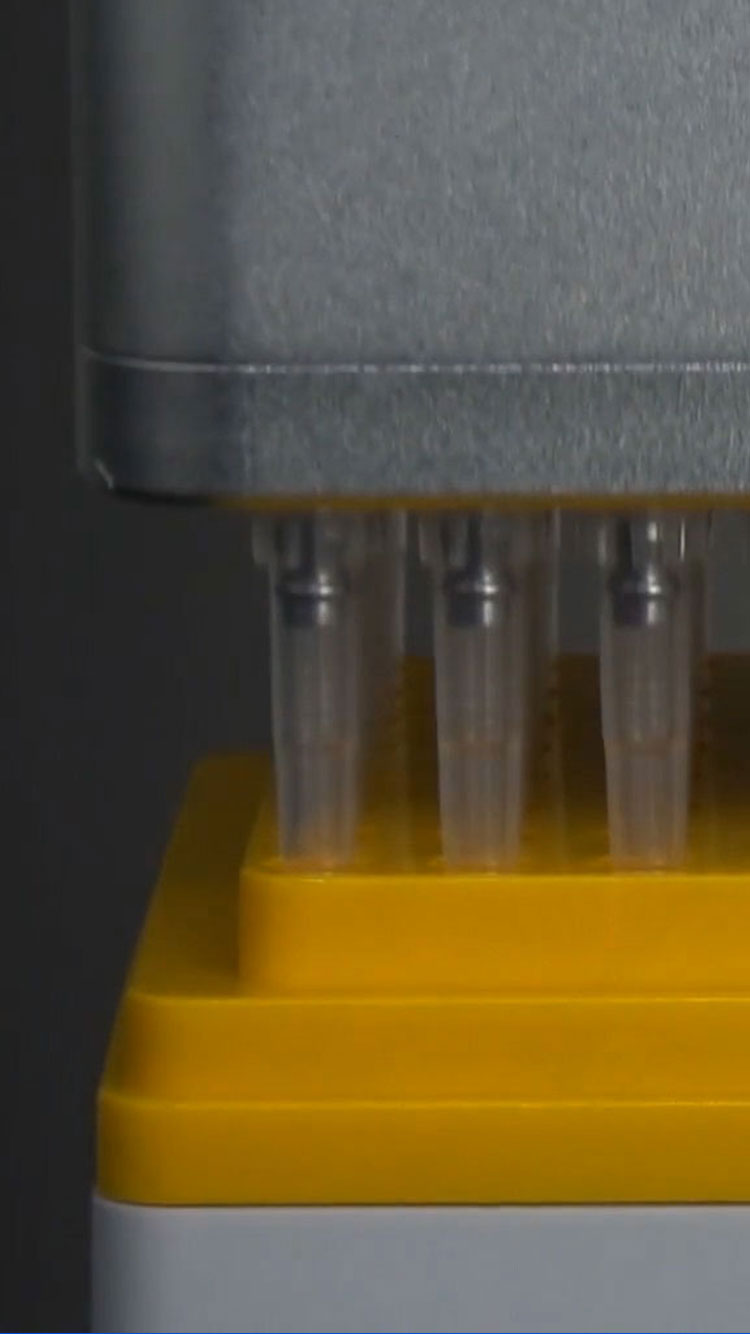

Precise pipetting

Pipetting heads are available in multiple formats, with pipetting volume of 0.5μL-1000μL; pipetting precision (CV) 1μL≤5%, 2μL≤5%, 50μL≤1%, 200μL≤1%

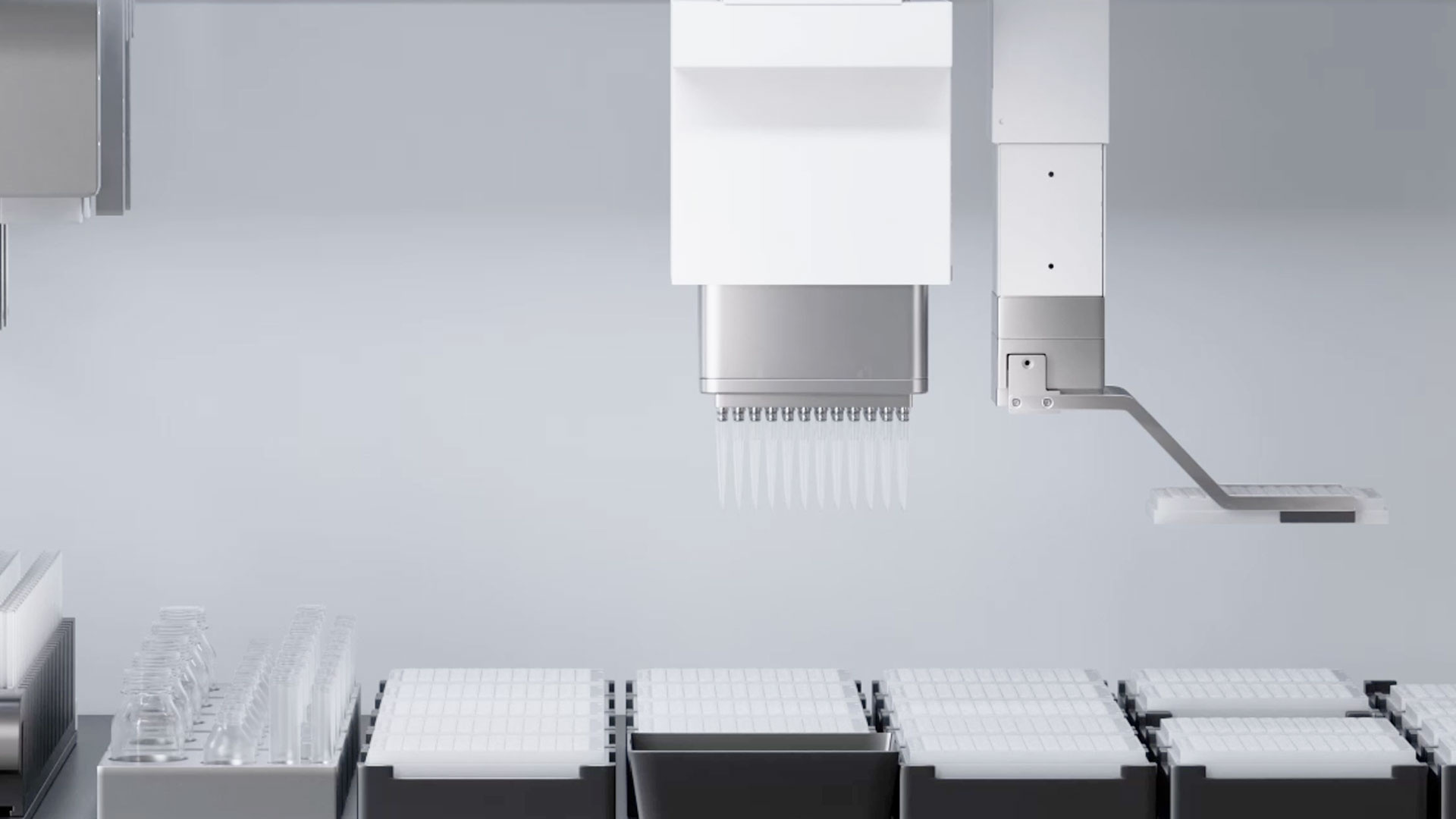

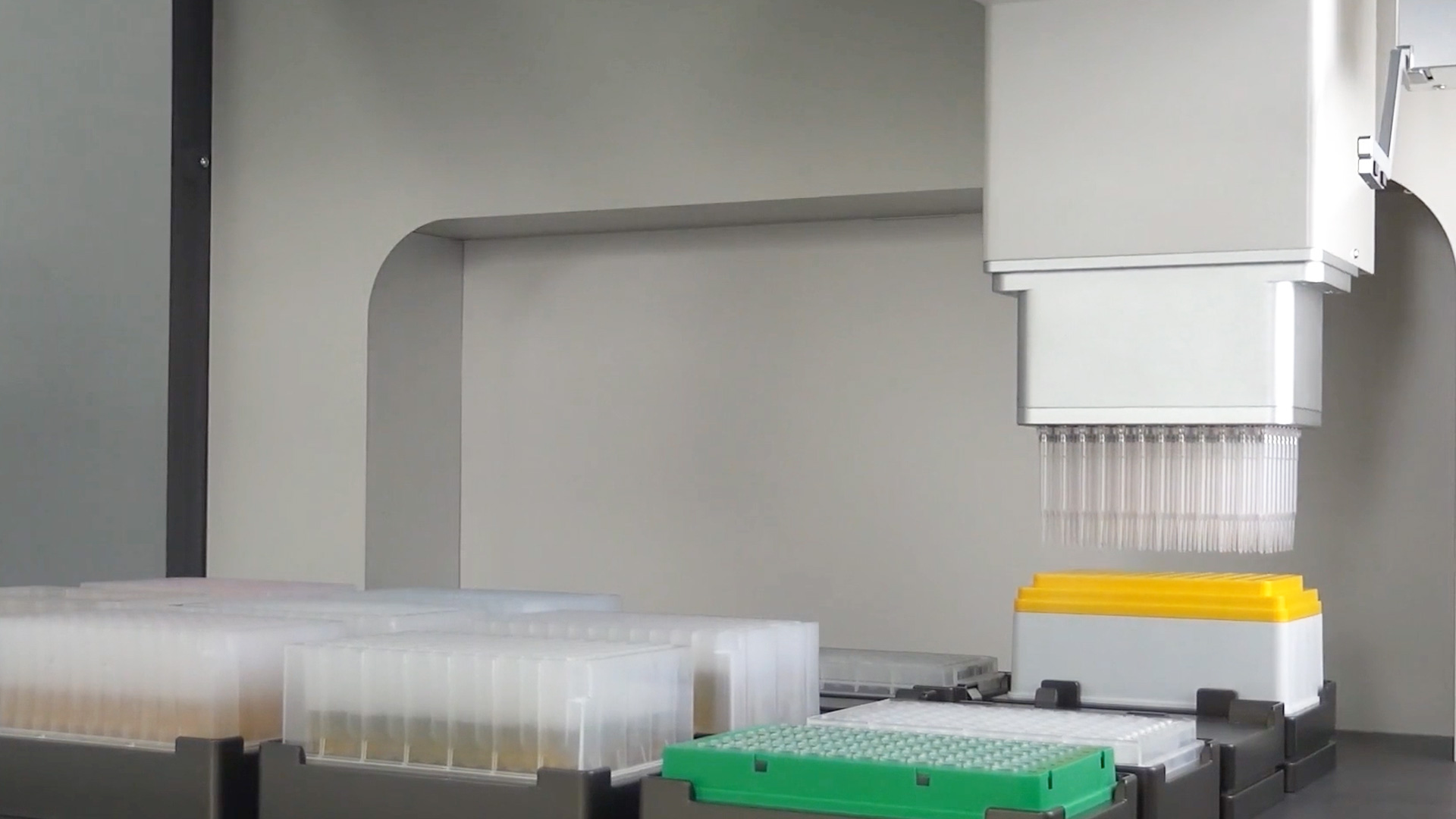

Flexible pipetting

Allows for single-channel, 8-channel, 12-channel, multi-row, multi-column and full-plate pipetting

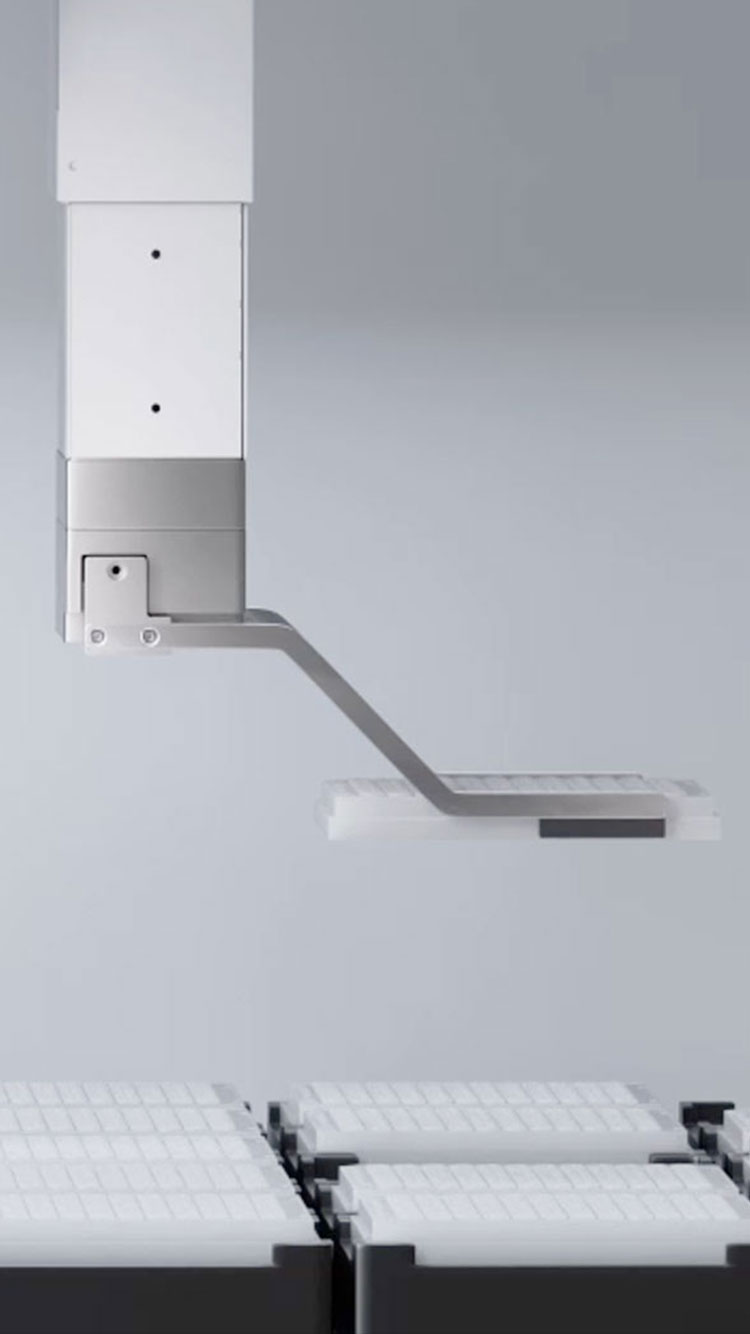

Rotatable gripper

360° rotatable, making it convenient for integration of third-party equipment

Optional modules

Various modules are available, such as magnetic stand, shaker and thermostat

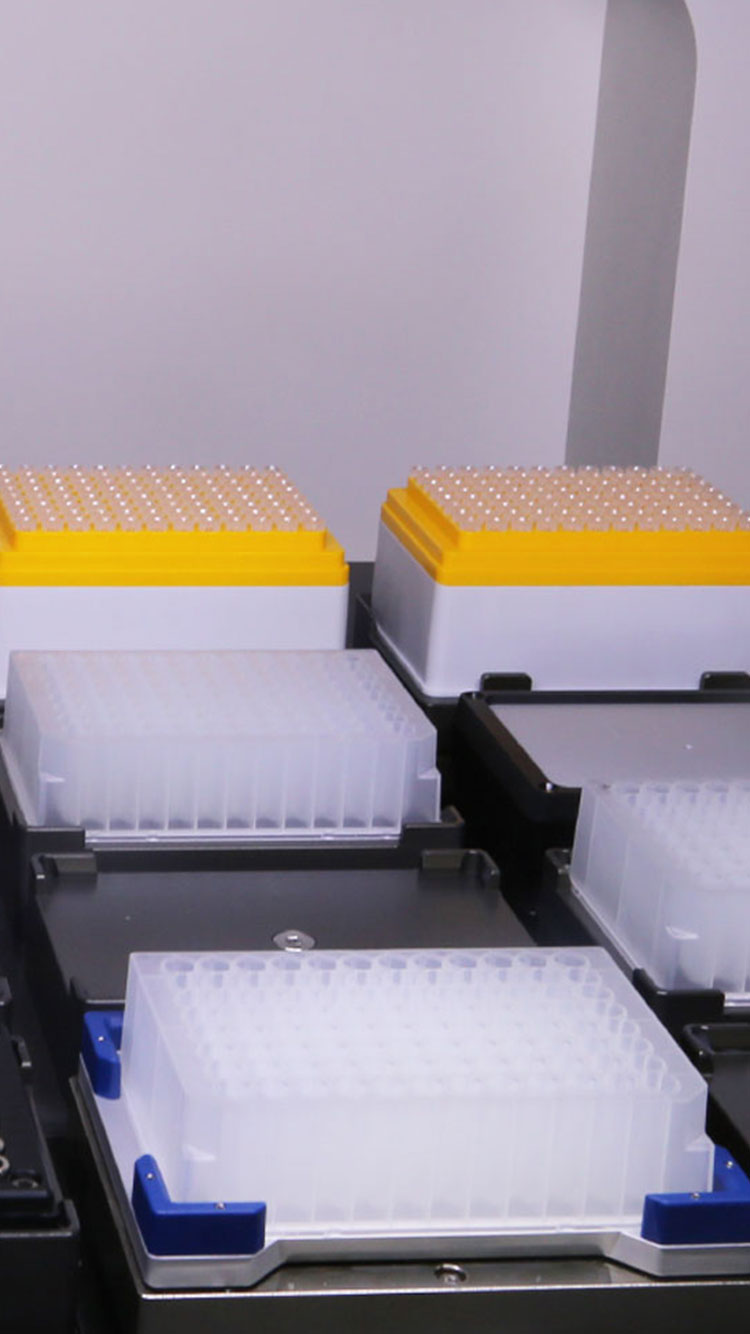

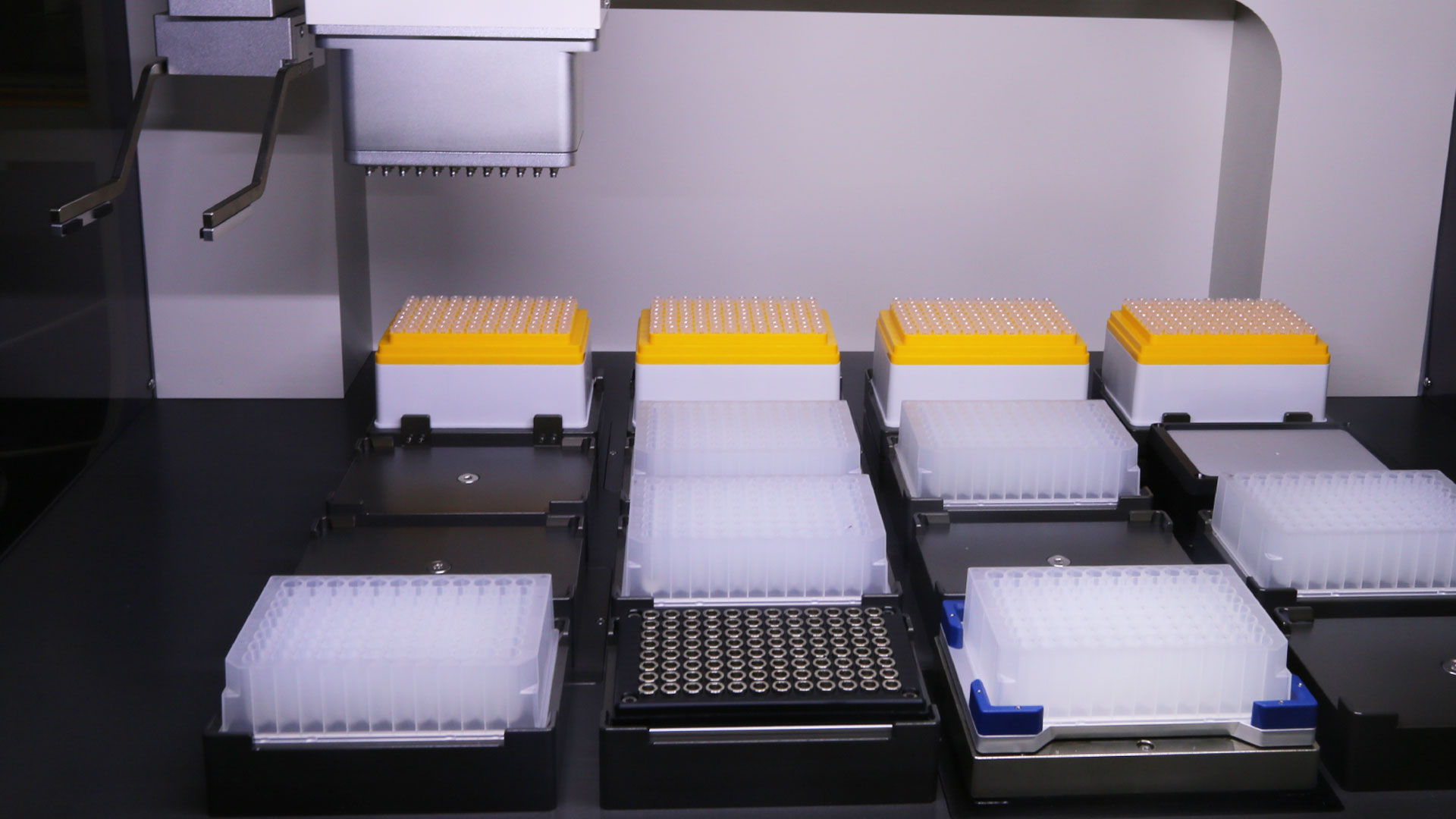

Plate positions

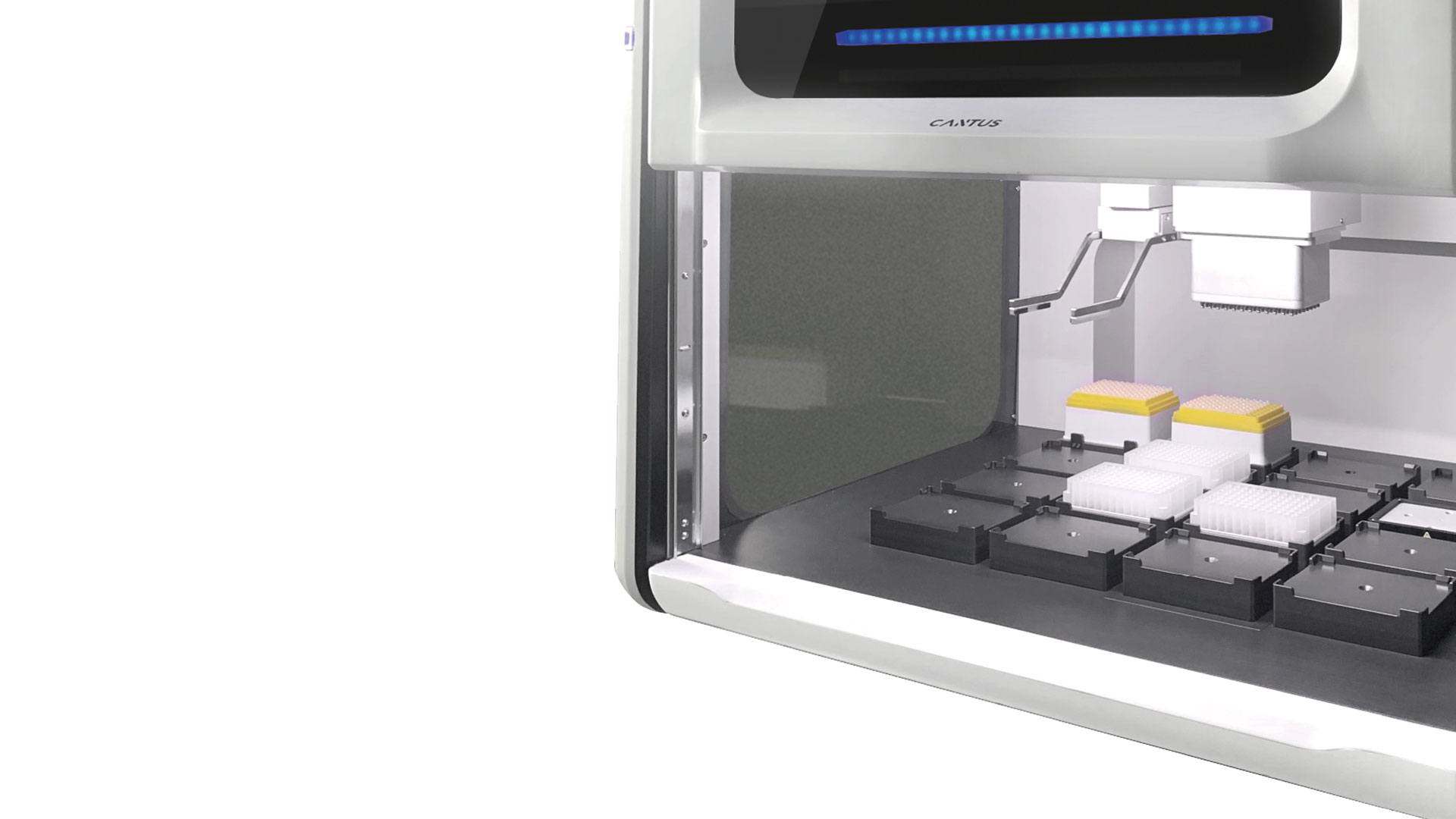

Large deck is capable of holding 16 or 28 plates, customization is available

Precise pipetting

Flexible pipetting

Rotatable gripper

Optional modules

Plate positions

Technical Specifications

Product name	CANTUS SCREEN High-throughput Liquid Handling System
Volume range	0.5-50μL, 1-70μL, 2-200μL, 5-1000μL
Pipetting head	50μL, 70μL, 200μL, 1000μL
Pipetting accuracy (≤CV%)	1μL: 5% 2μL: 5% 50μL: 1% 200μL: 1%
Plate positions	16/28, customization is available
Modules	Various modules such as magnetic stand, shaker and thermostat can be integrated
Pipetting channel	96/384 channels, customization is available
Gripper	360° rotatable
Indicator lights	Four-red, orange, blue and green
Emergency stop button	Offers greater real-time protection to operators
Dimensions (W×D×H)	16-plate: 940×800×1010mm 28-plate: 1250×800×1010mm
Weight	16-plate: 157kg 28-plate: 233kg
Power	AC100-240V, 50/60Hz, 450W
