VOLA 96
Nucleic Acid Extractor
Watch the full video

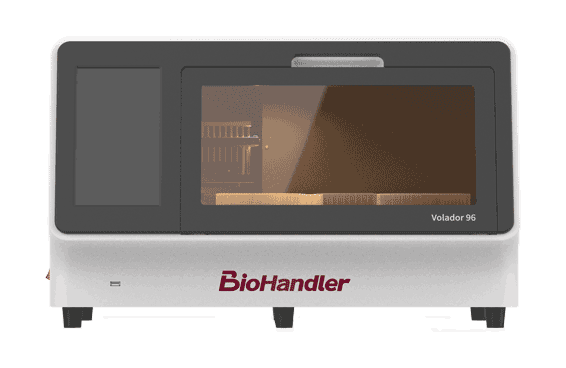

VOLA 96
Nucleic Acid Extractor

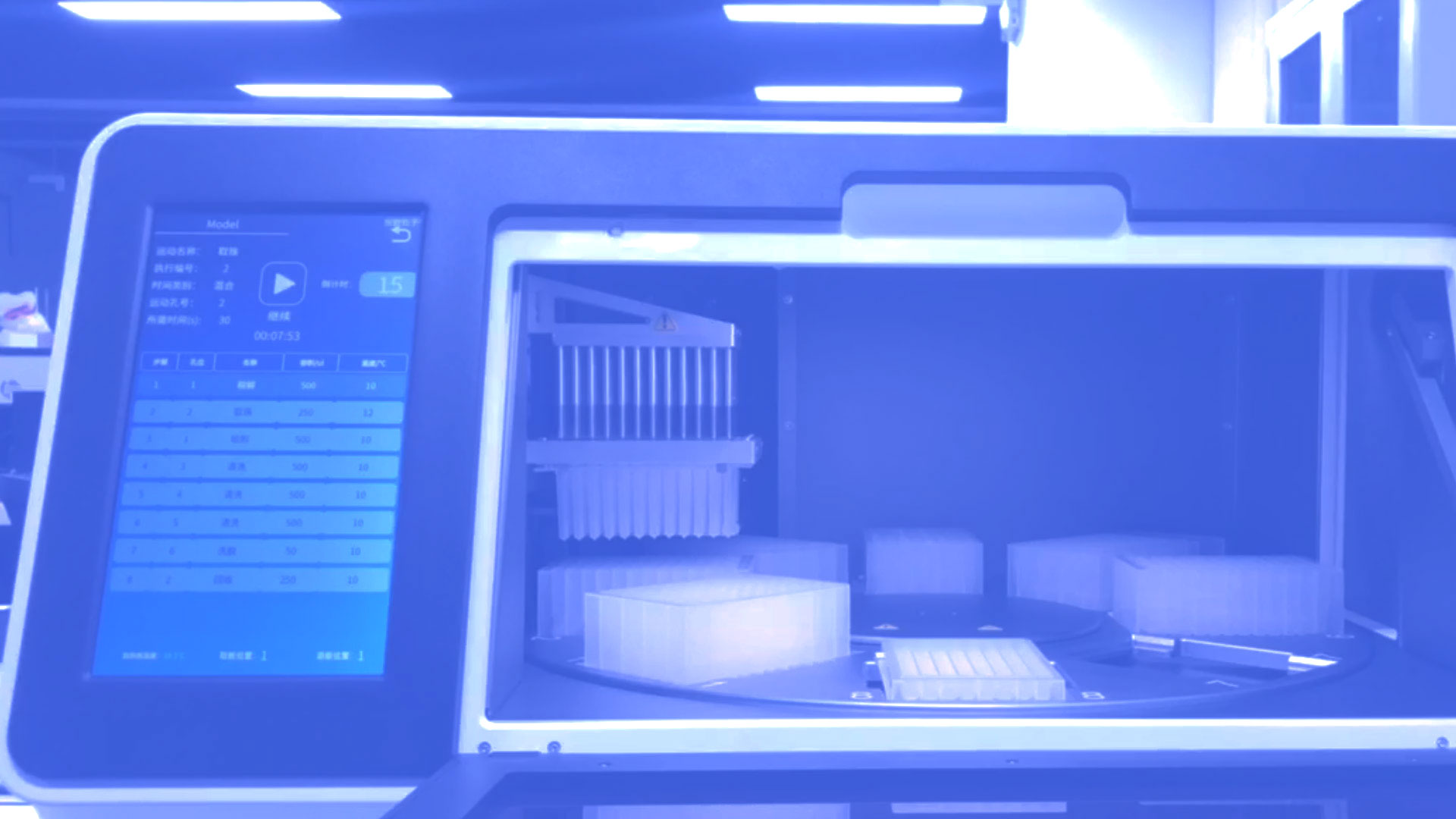

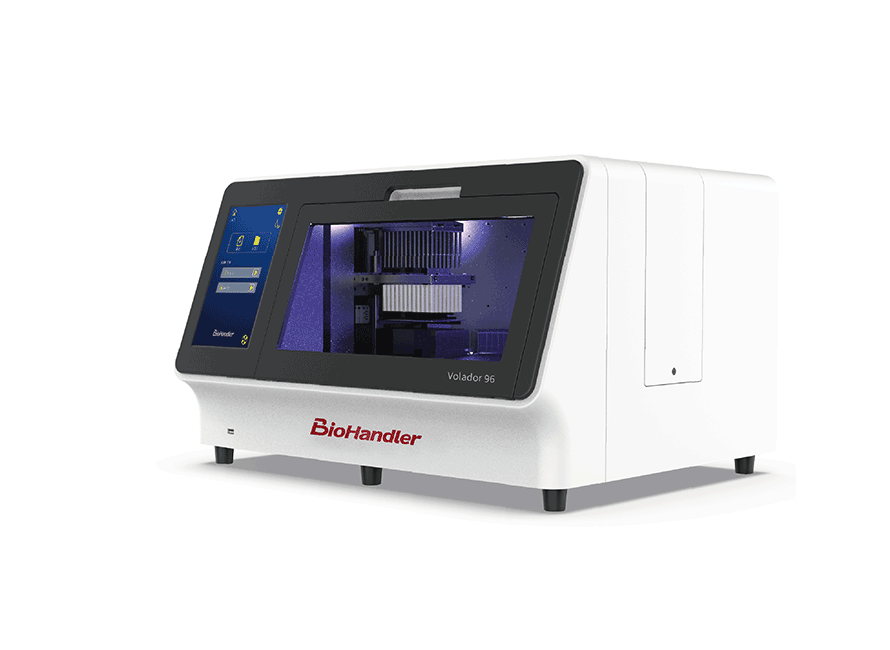

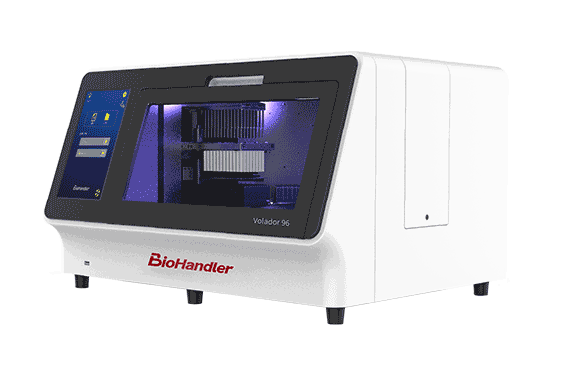

VOLA 96 nucleic acid extractor is an improvement over VOLA 32, offering higher sample throughput. Key features include smart structural design, UV sterilization, heating functions and easy operation. It enables separation and purification of nucleic acid from a wide variety of sample types (blood, animal and plant tissues, cells, etc.) using the corresponding magnetic bead-based kits, making it a powerful tool for clinical molecular testing and molecular biology research.
Flexible and efficient

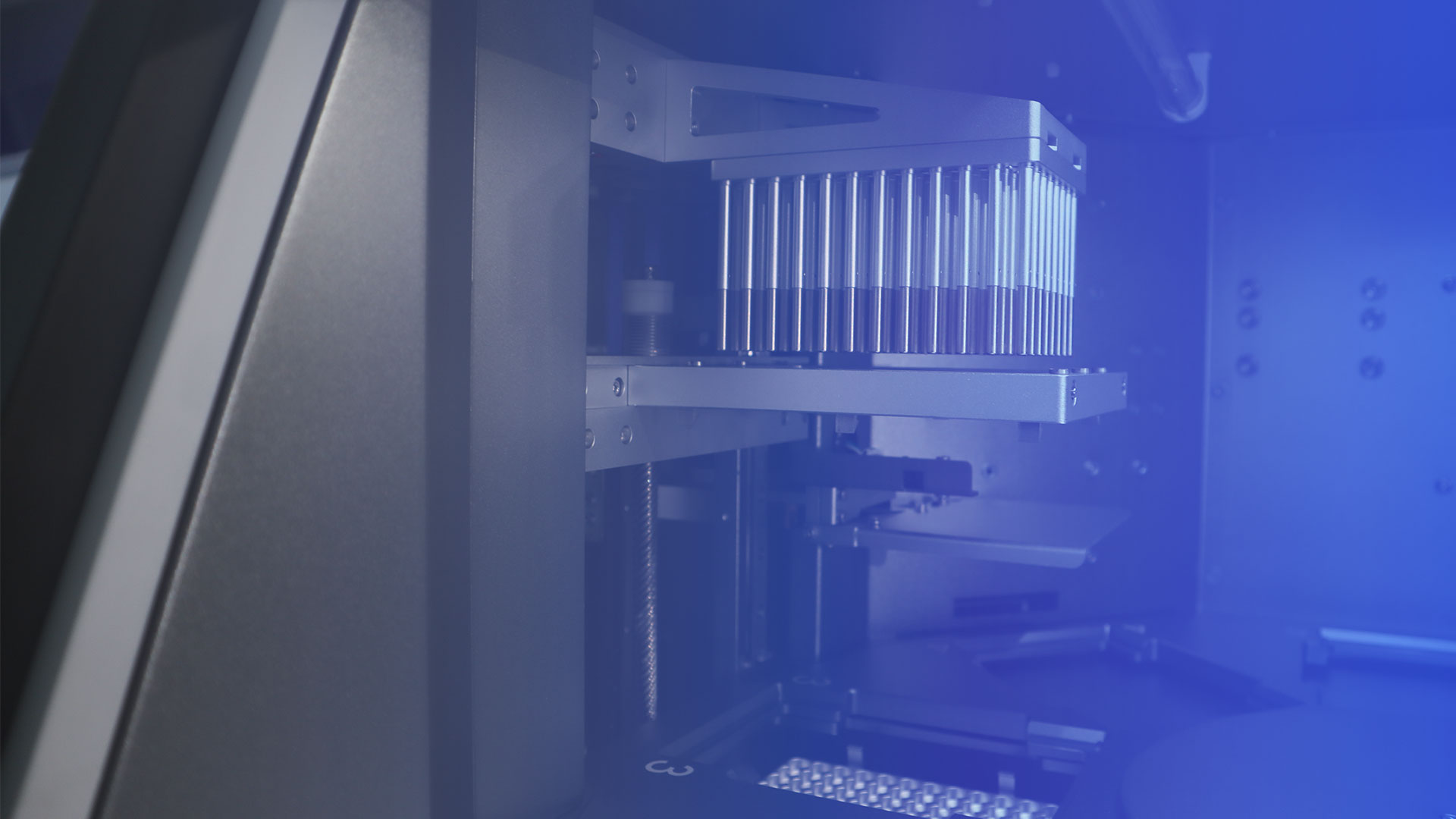

Capable of simultaneously handling 1-96 samples within 10-40 minutes; multi-mode, multi-position magnetic methods with higher extraction and purification efficiency
Easy to use and control

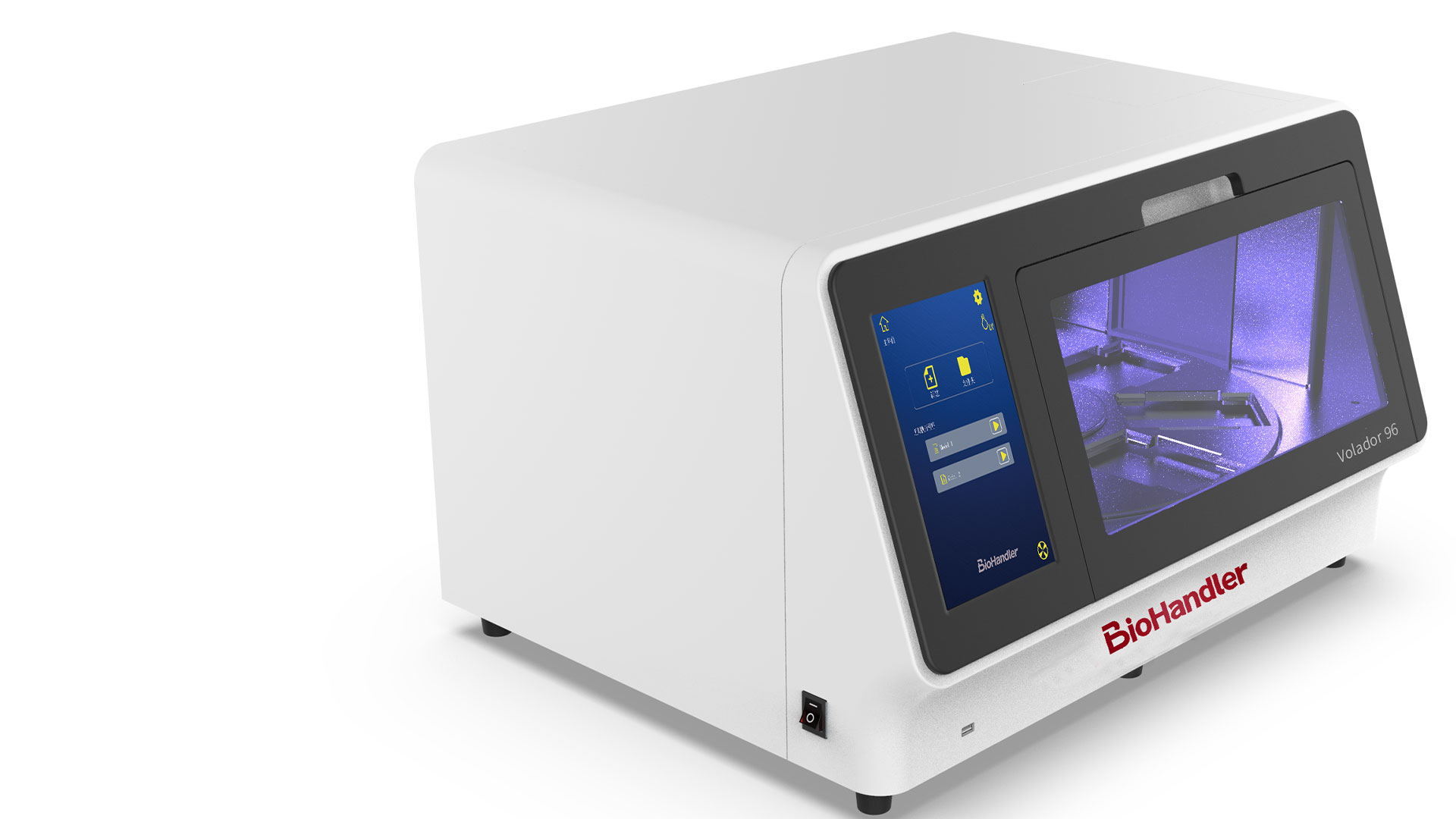

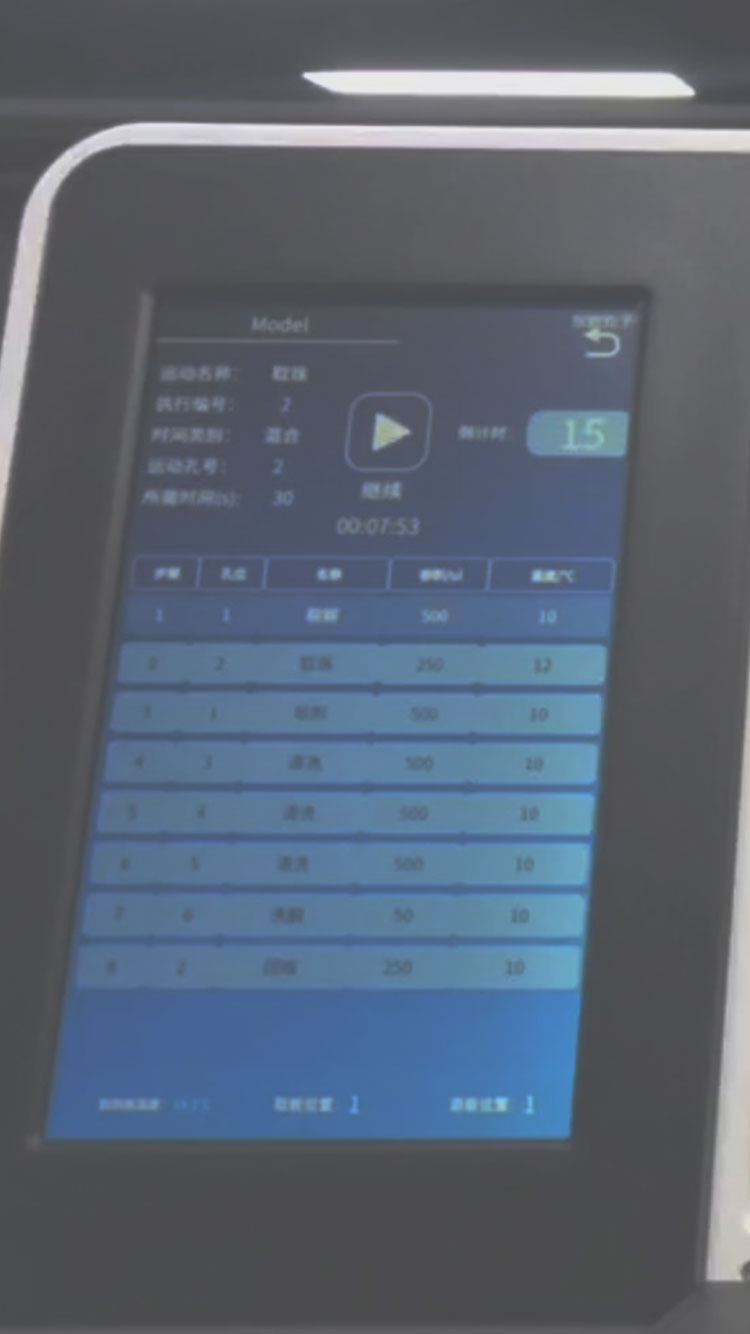

Large full-color touchscreen display without the need for connection to computer; easy to use; get started quickly
Safe and reliable

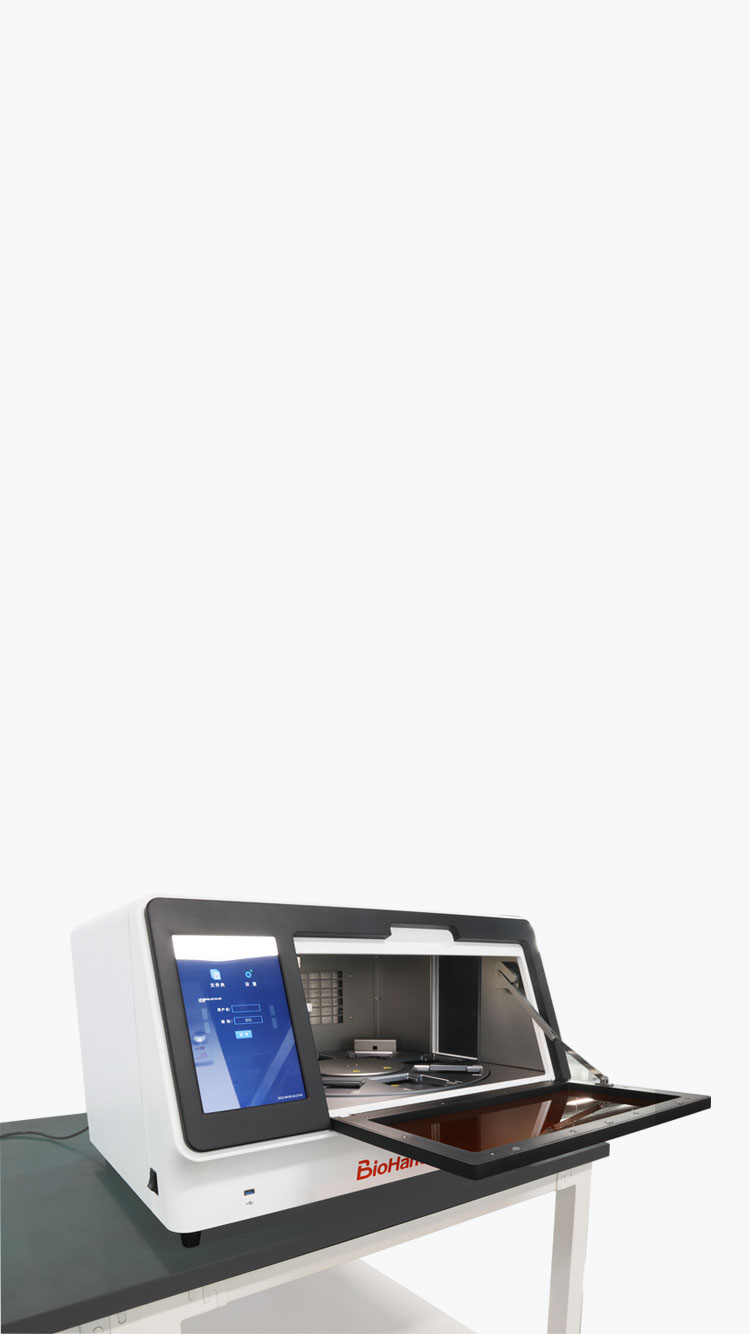

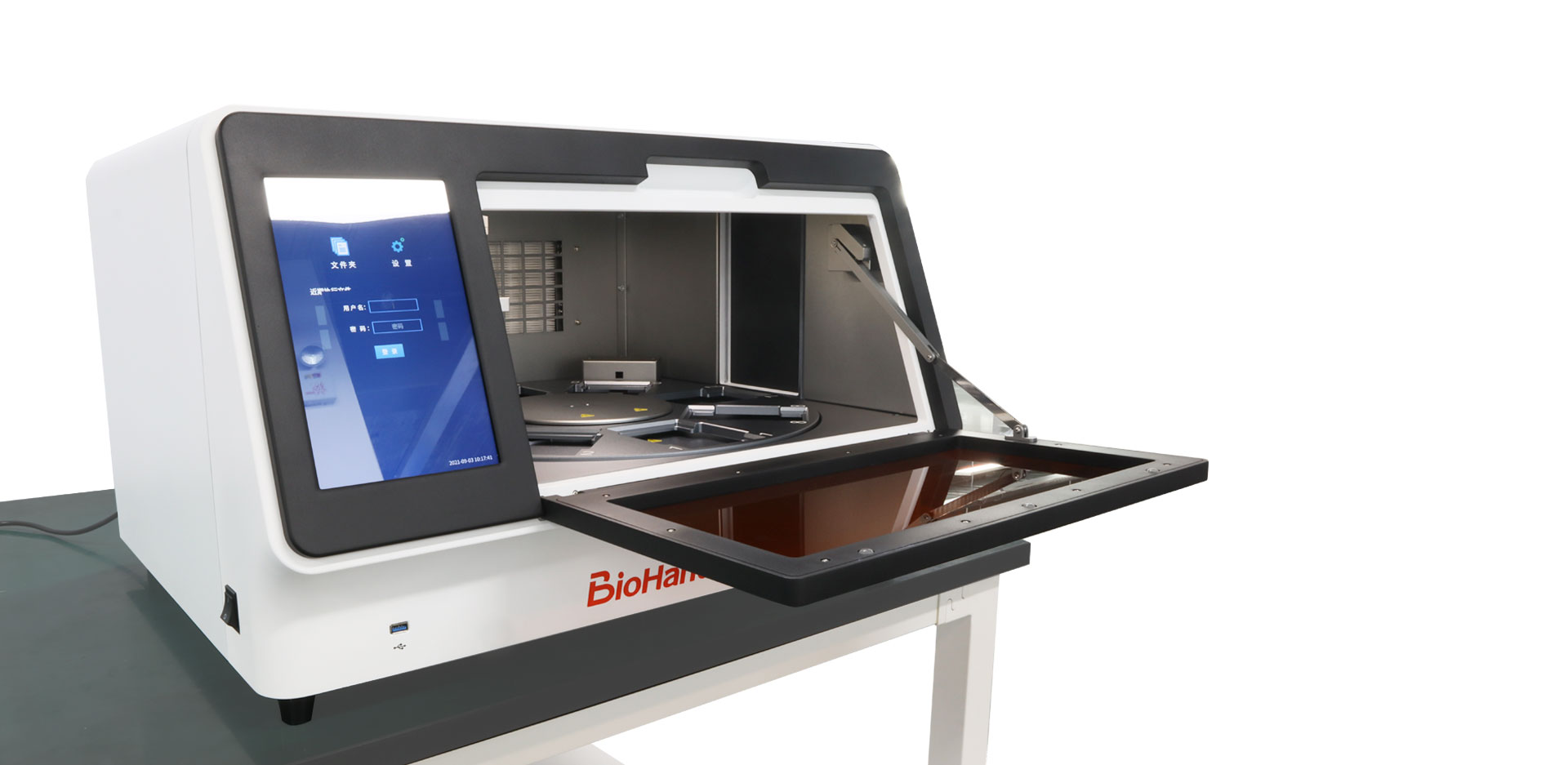

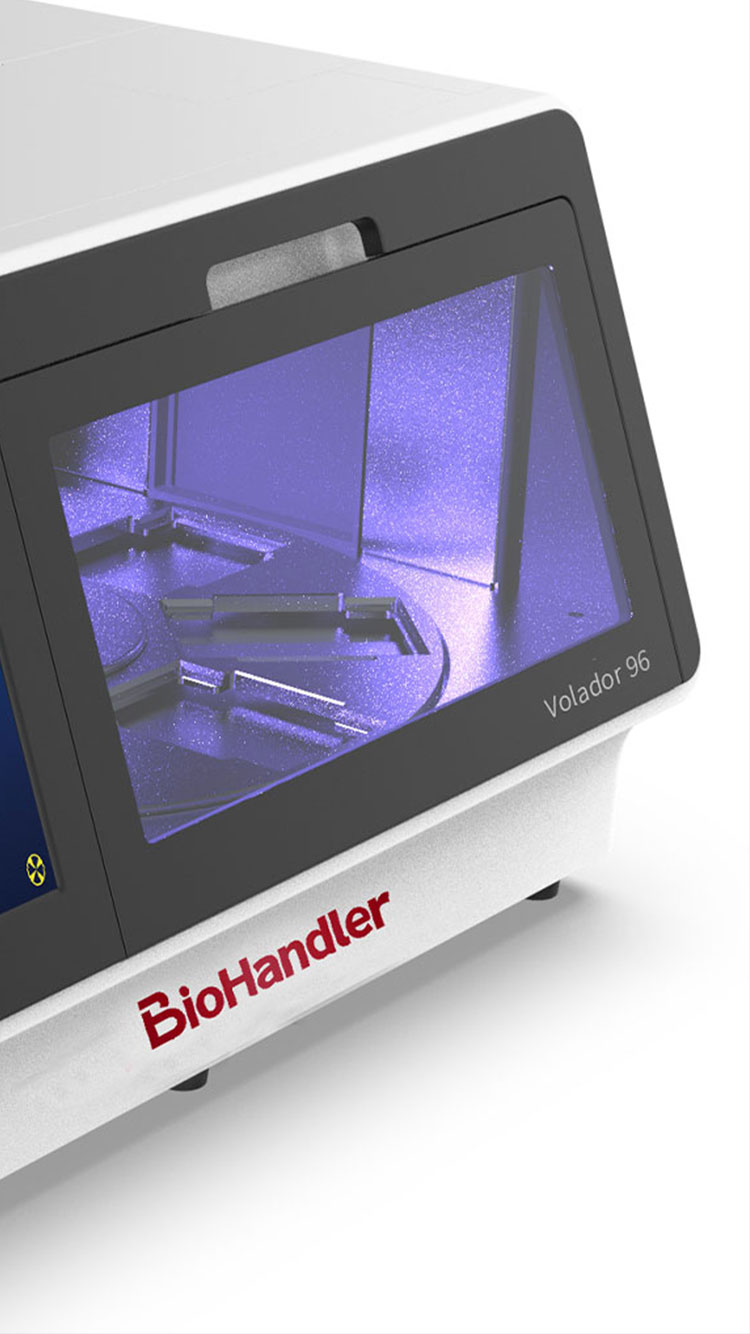

Uses timer mode to precisely control program duration. Run time is visible and controllable. Anti-drip design and UV sterilization help avoid cross-contamination
Open and free

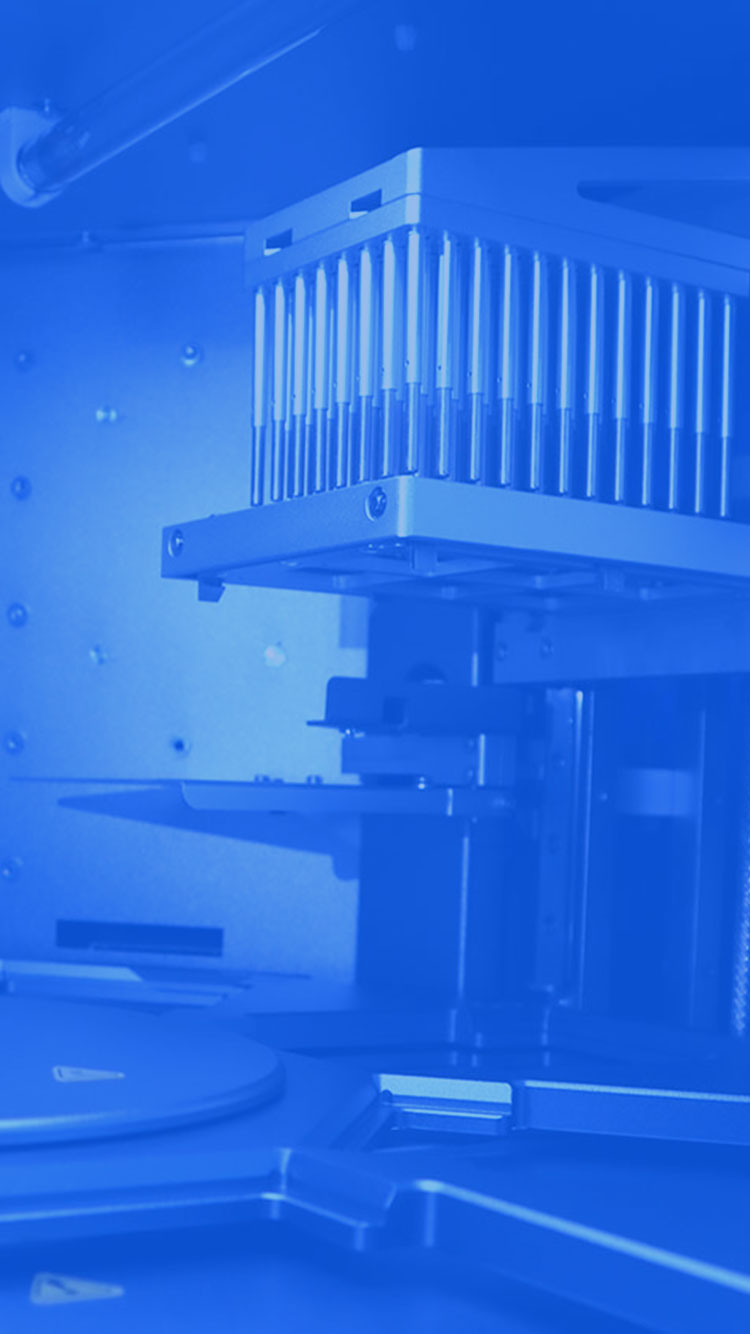

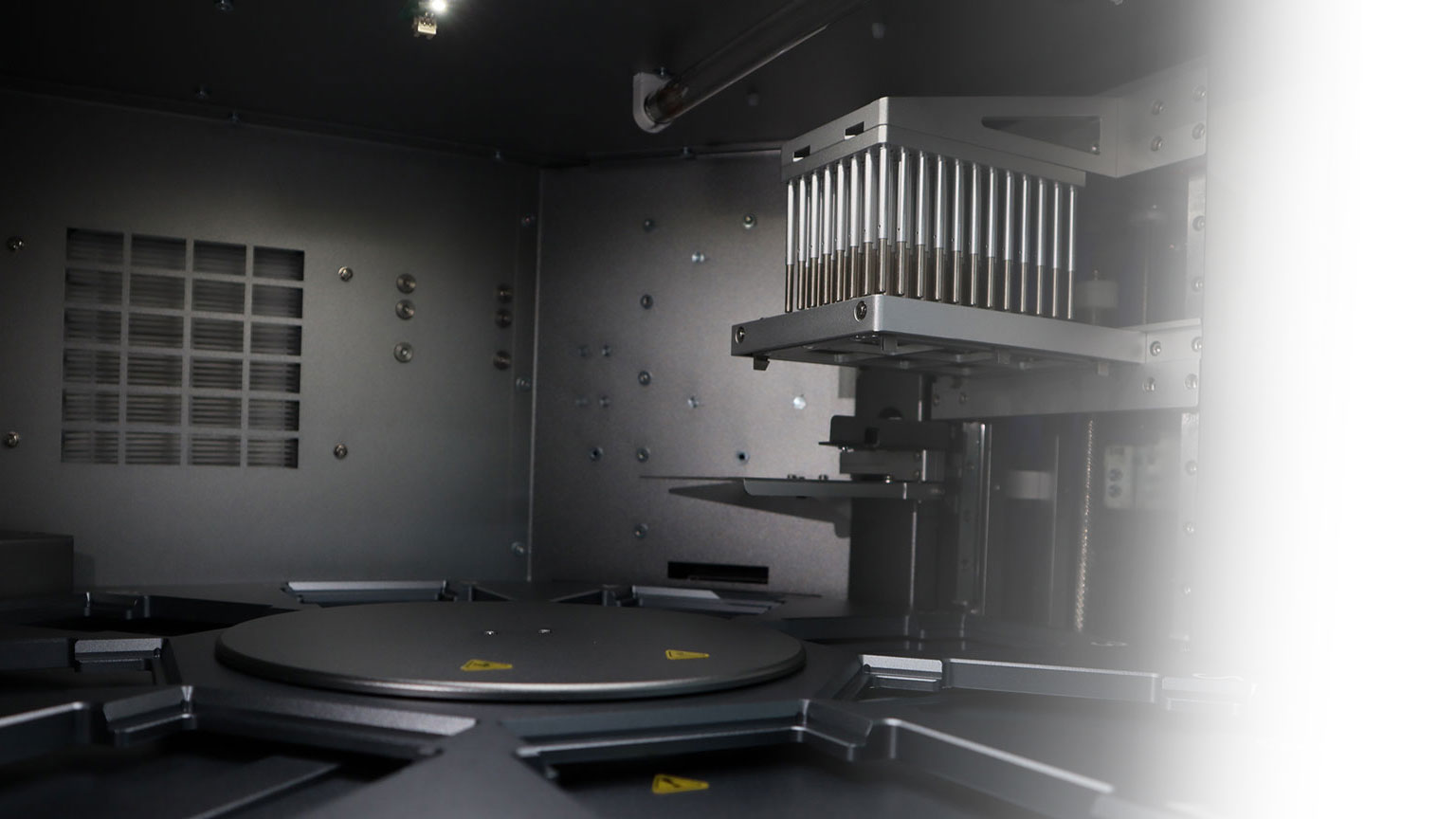

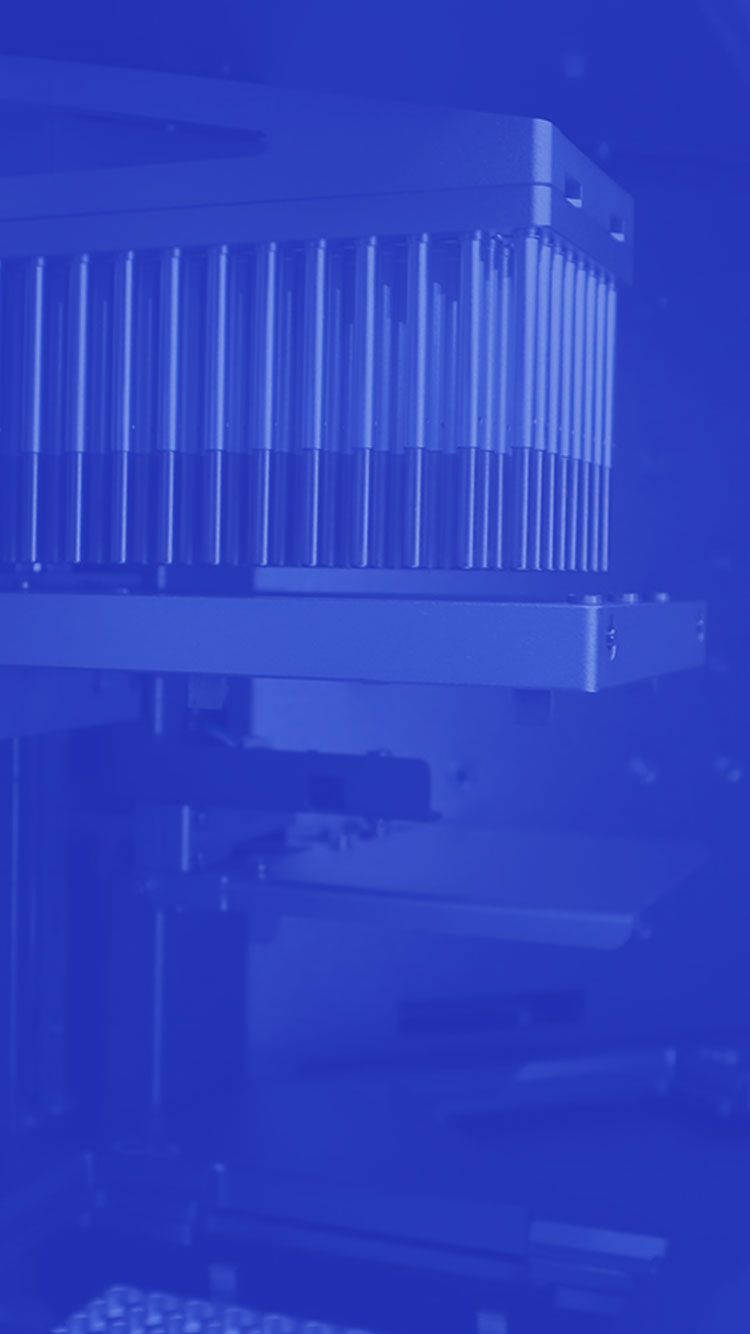

Open reagent, compatible with a wide range of magnetic-bead based kits. Rotatable plate position design with automatic access to tip combs. Free programming allows for customizable workflows
Technical Specifications
| Product name | VOLA 96 Nucleic Acid Extractor |
| Process volume | 20μL-1000μL |
| Sample throughput | 1-96 |
| Magnetic bead recovery | ≥98% |
| Plate positions | 8 (standard plates) |
| Temperature range | Room temperature ~ 110°C |
| Operation ambient temperature | 10°C~30°C |
| Compatible consumables | 96-well plates, 96-tip combs |
| Shaking and mixing | Multi-mode, multi-speed adjustment |
| Barcode scanner | Optional |
| User interface | 10.1-inch color touchscreen |
| Internal program | Can store up to 200 programs |
| Program management | New, editing, delete, save as |
| Sterilization | UV light |
| Computer interface | USB |
| Dimensions (W×D×H) | 700×550×450mm |
| Weight | 45kg |
| Power | AC110-240V, 50/60Hz, 500W |
