NEMO E9
Pipetting Workstation
Watch the full video

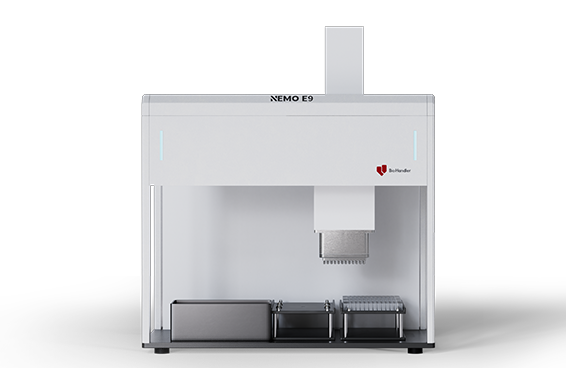

NEMO E9
Pipetting Workstation

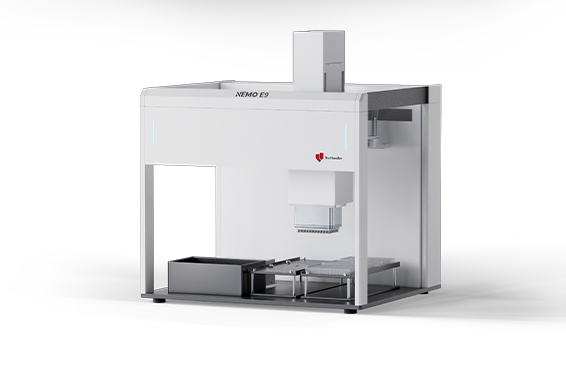

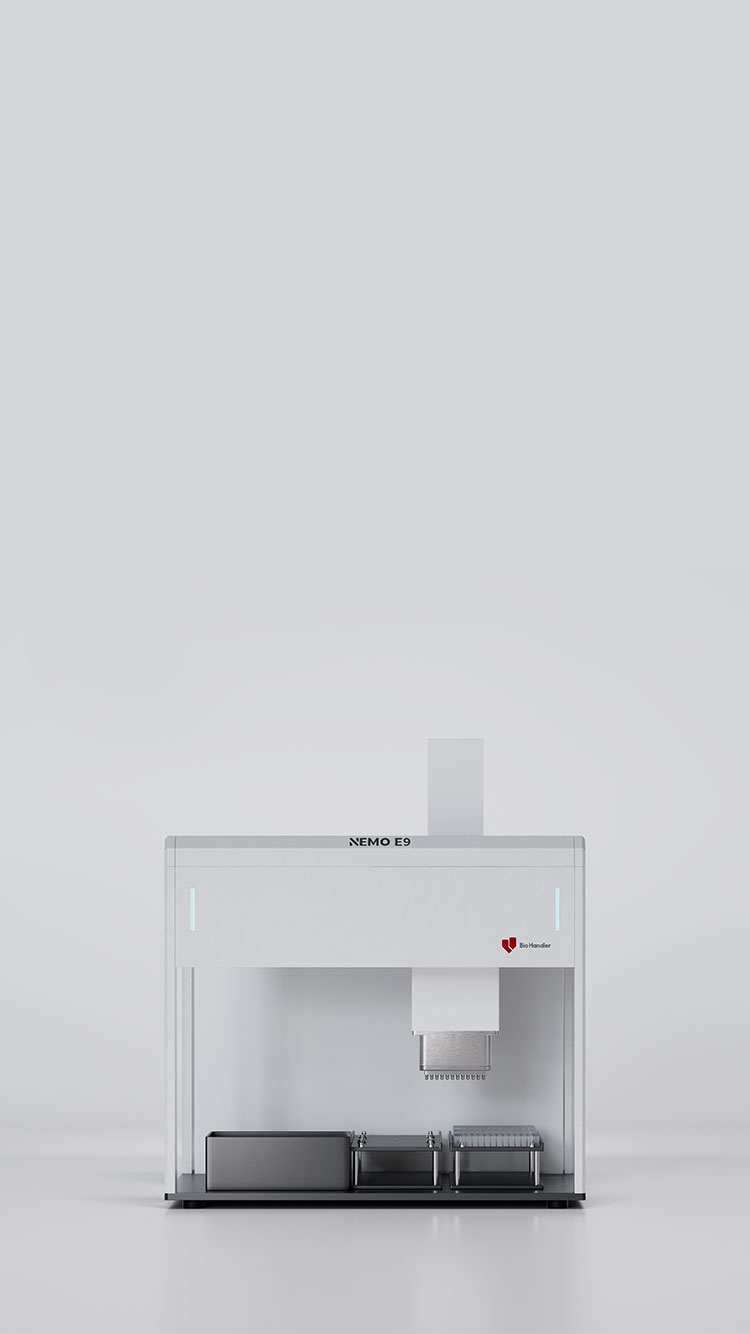

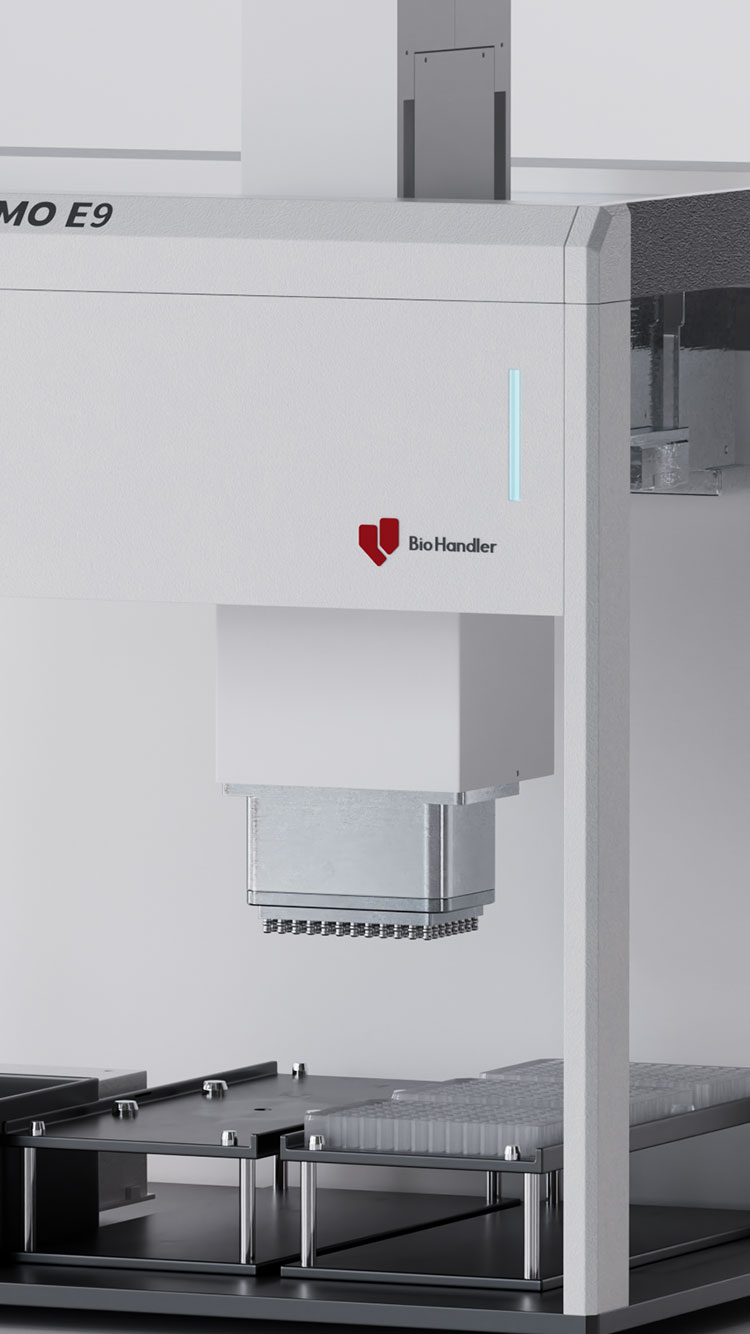

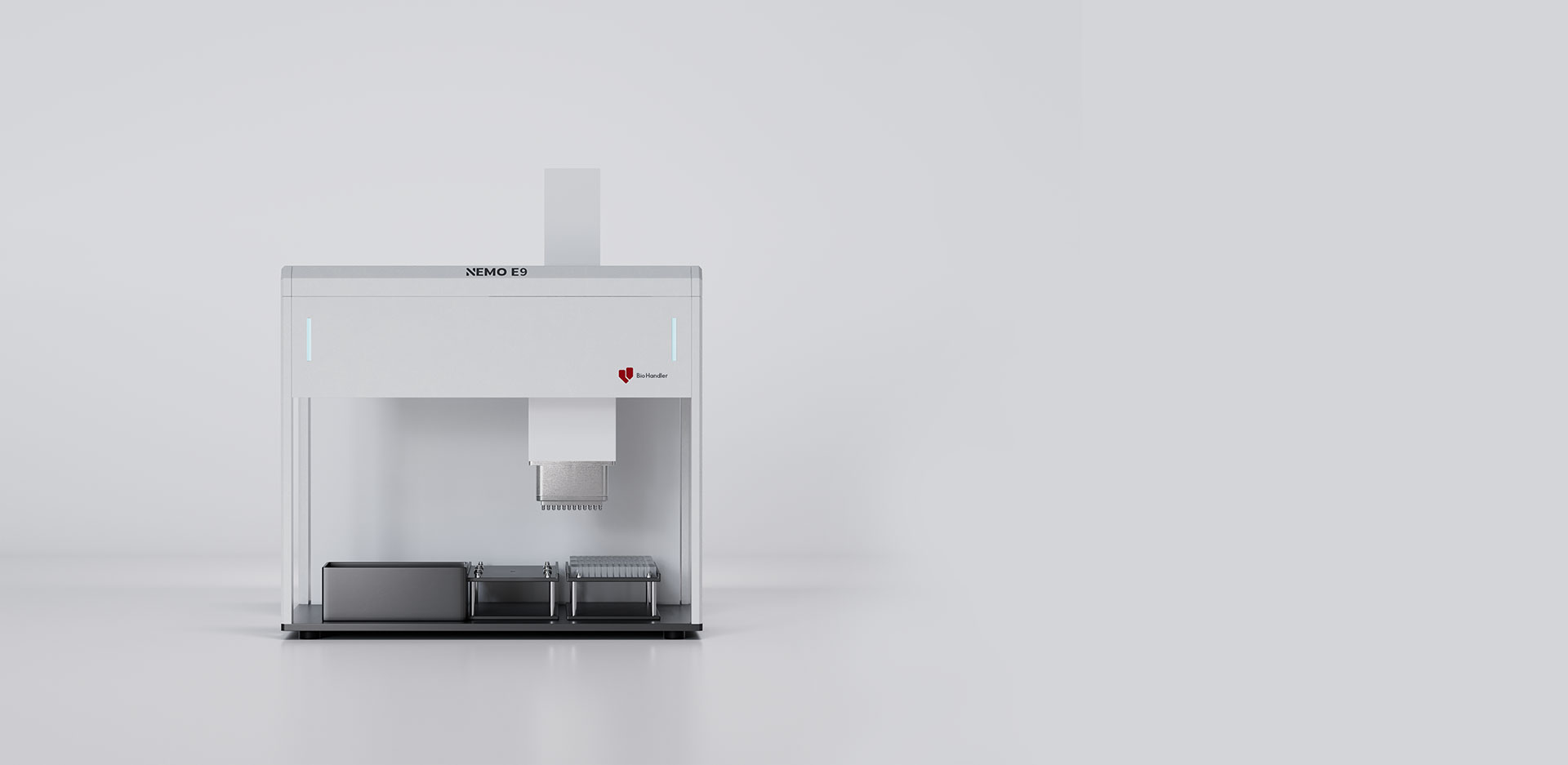

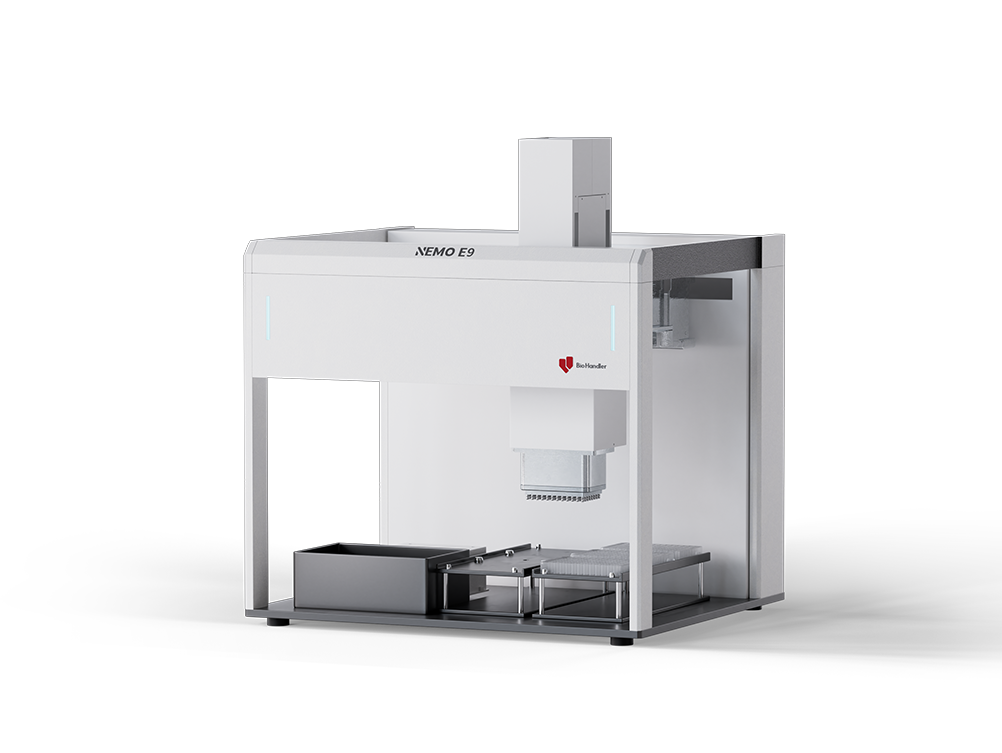

NEMO E9 is an automated pipetting workstation with significant flexibility, high performance and high throughput, which can hold 9 plates. Its small footprint makes it space-efficient – it can be placed in fume hood, biosafety cabinet and clean bench. The software is easy to use without the need for complex programming or special training. Its 96-channel head can be used for plate replication, as well as for aliquoting, transferring and dilution of samples or reagents. As such it can release lab personnel from heavy, repetitive pipetting work. The workstation can be widely used in third-party medical test centers, blood bank laboratories, hospital laboratories, disease control centers, animal quarantine centers, food and drug administrations, research institutions and biopharmaceutical companies.
Flexible operations

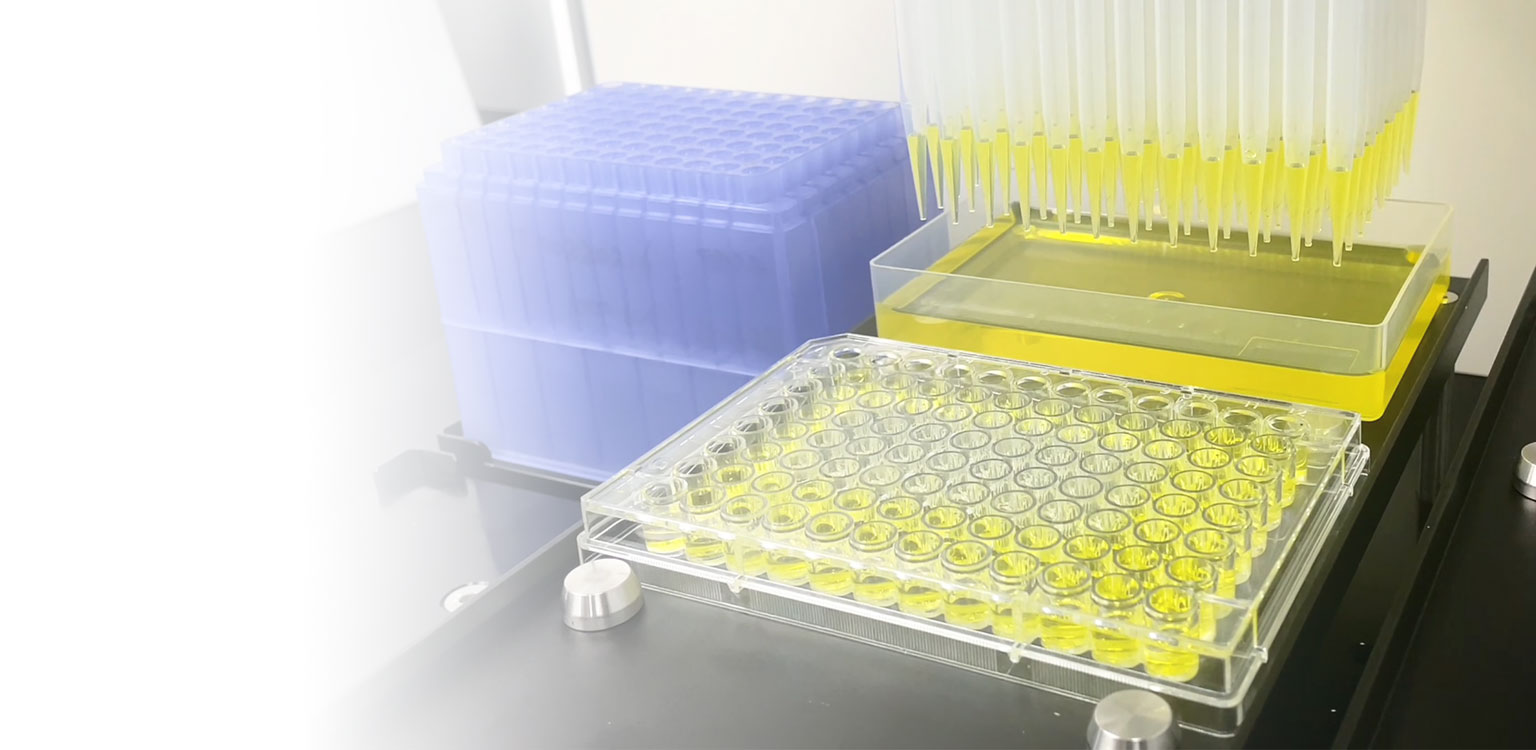

Independent X-, Y- and Z-axis movement; automatic retrieval and discarding of tips; single-column, multi-column and full-plate filling; 96- to 384-well plate filling
Precise pipetting

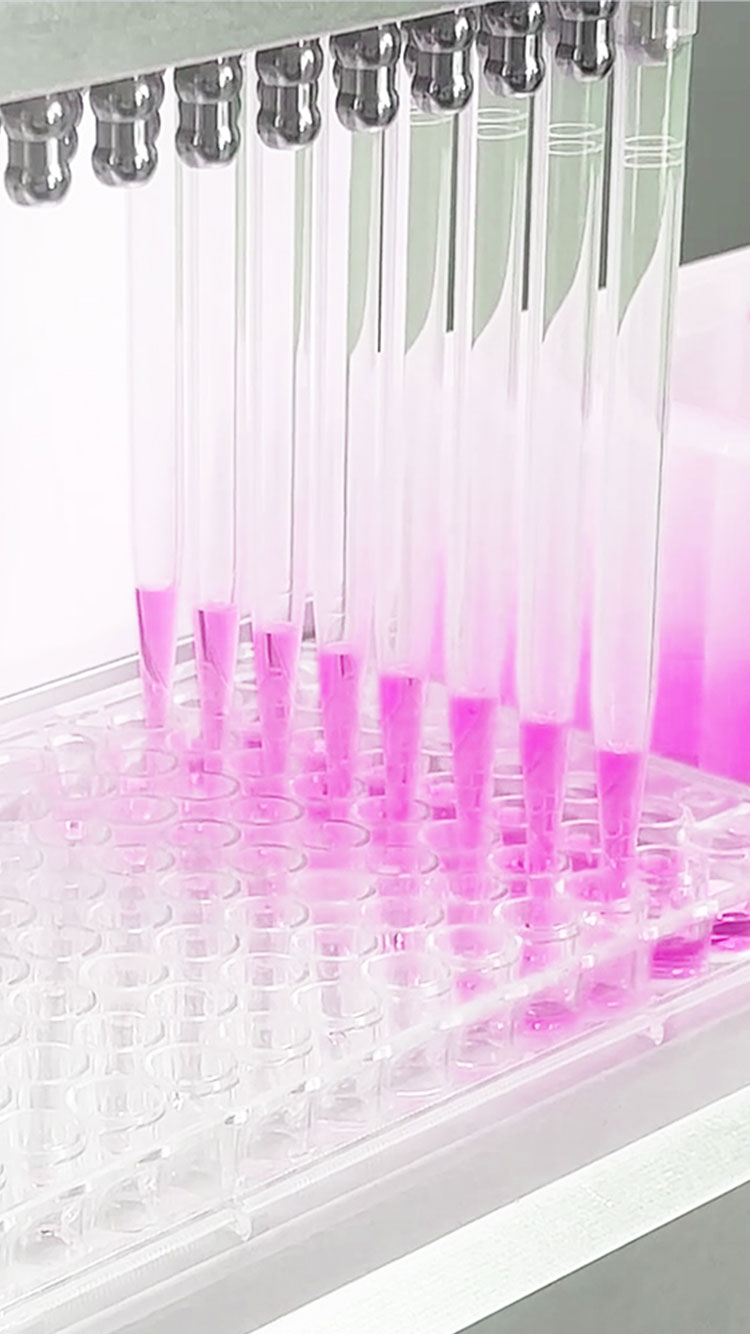

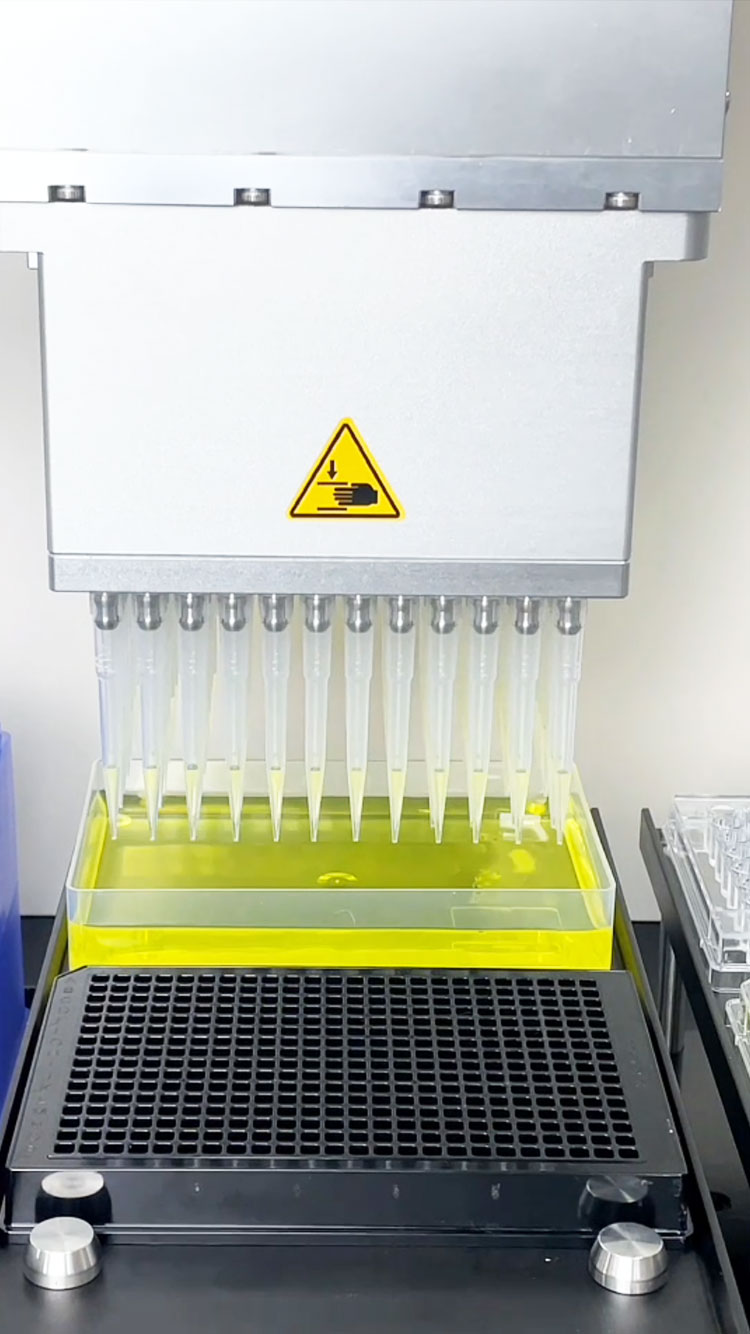

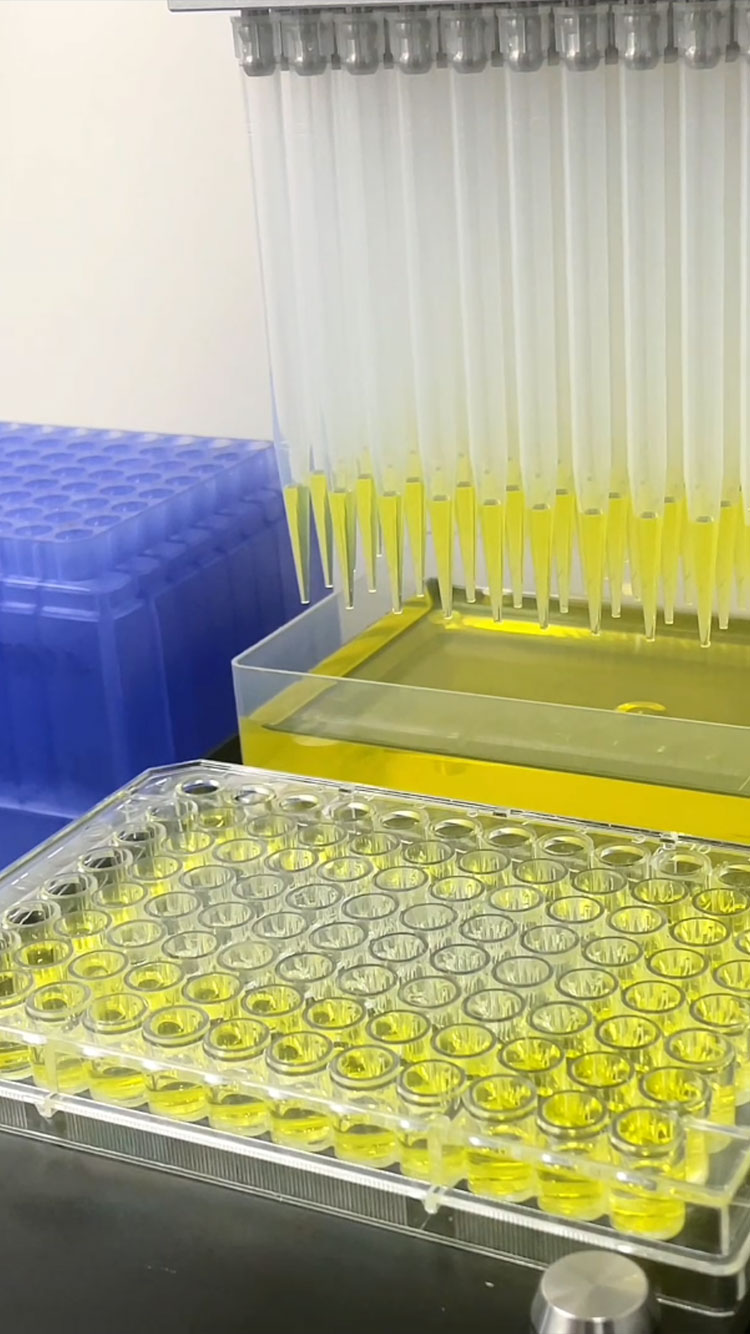

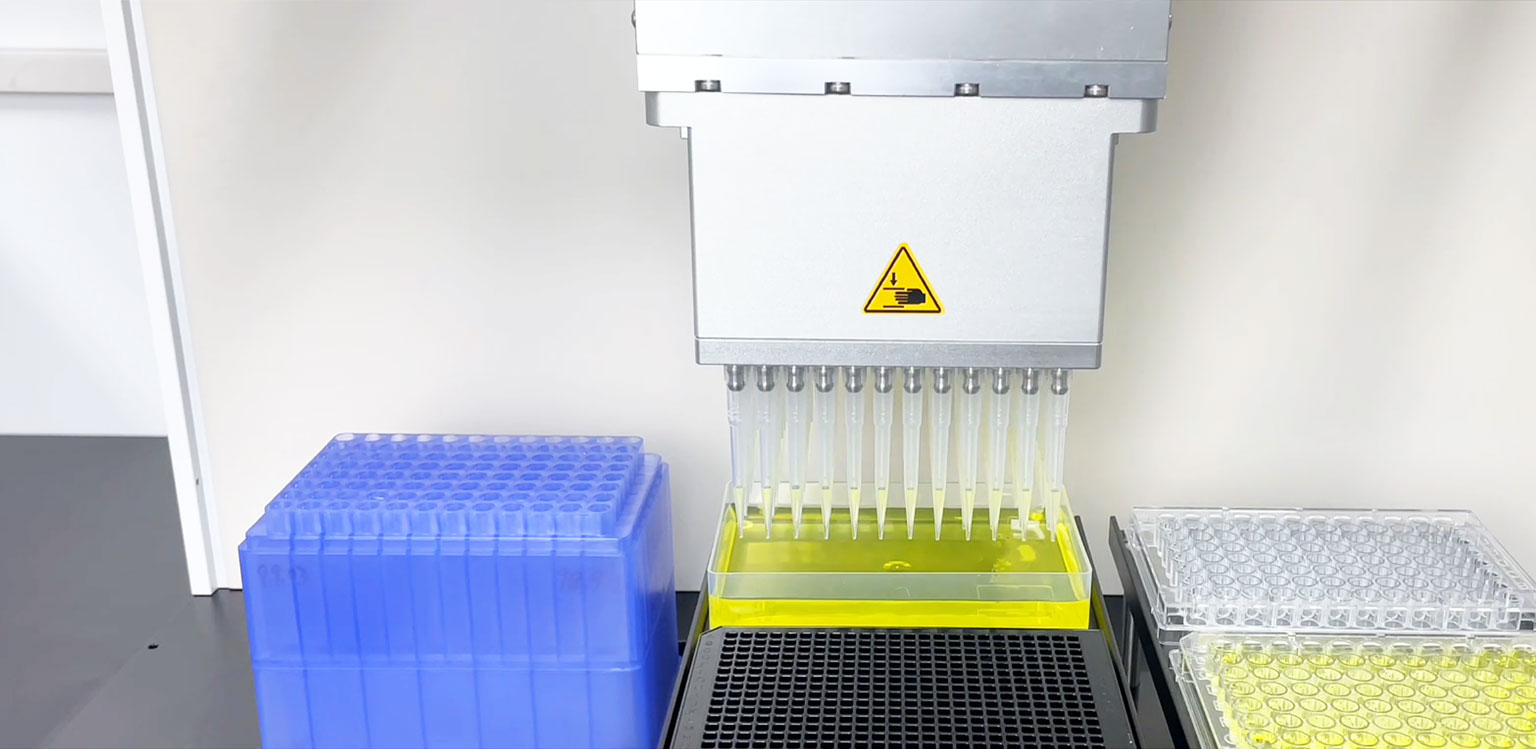

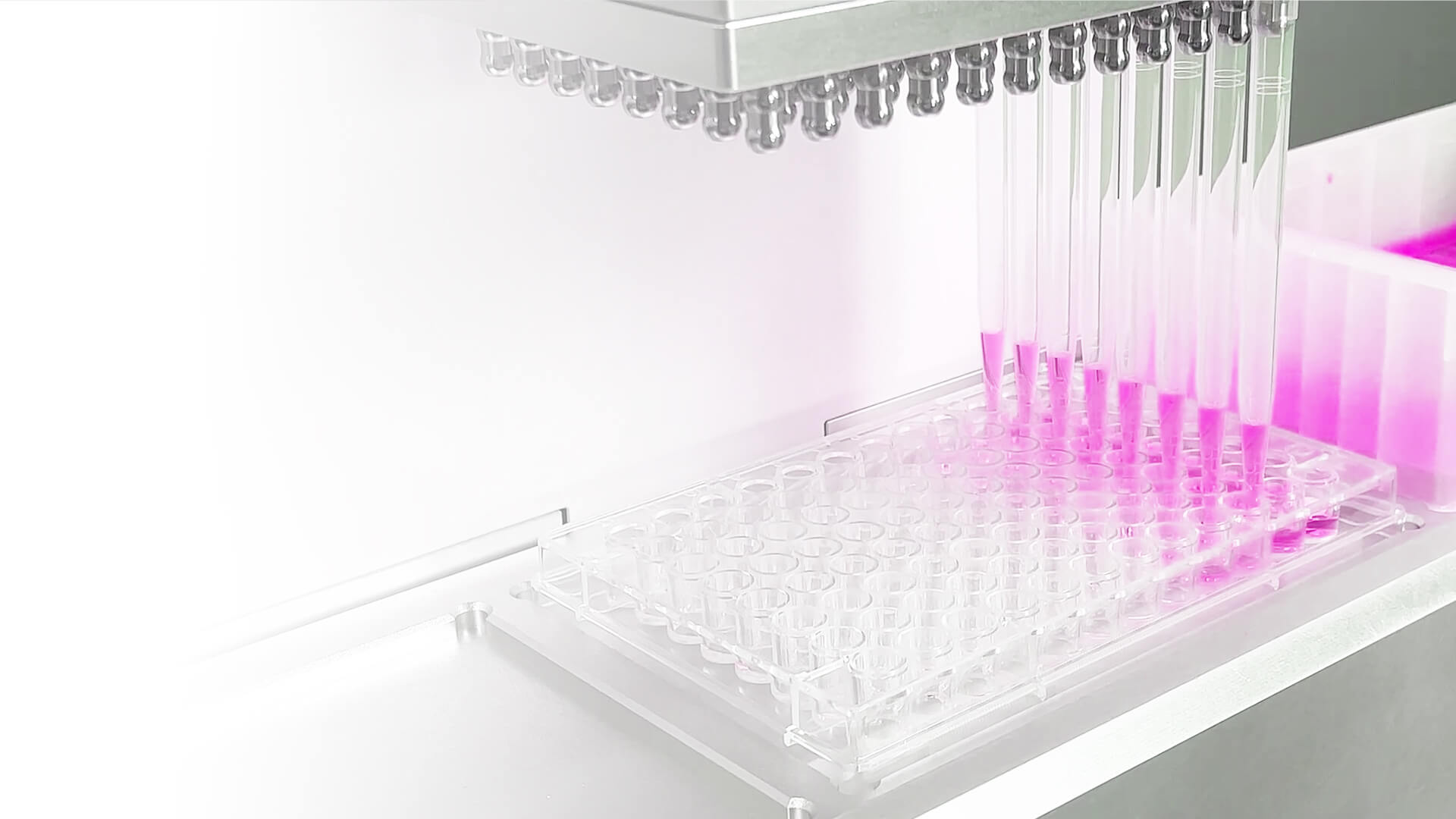

96-channel head allows efficient pipetting. Three different heads cater to different volumes, enabling high degree of precision
Easy programming

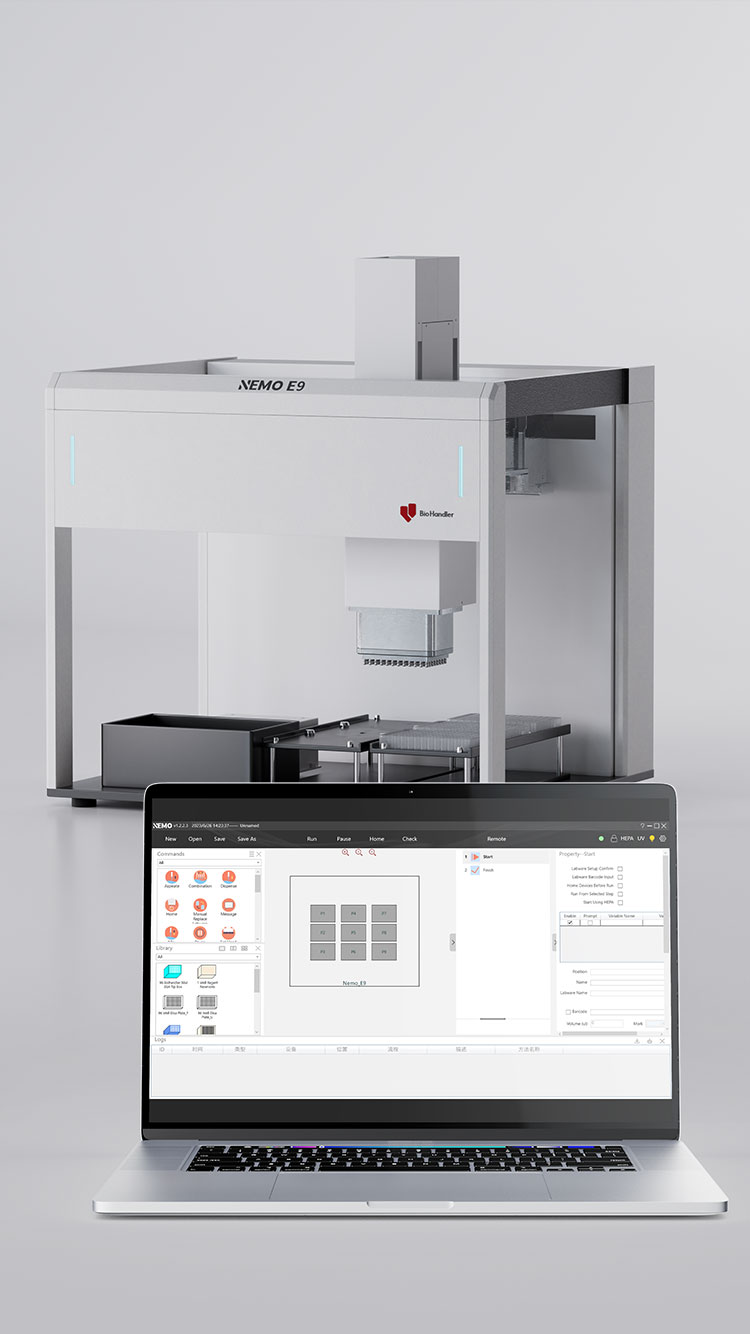

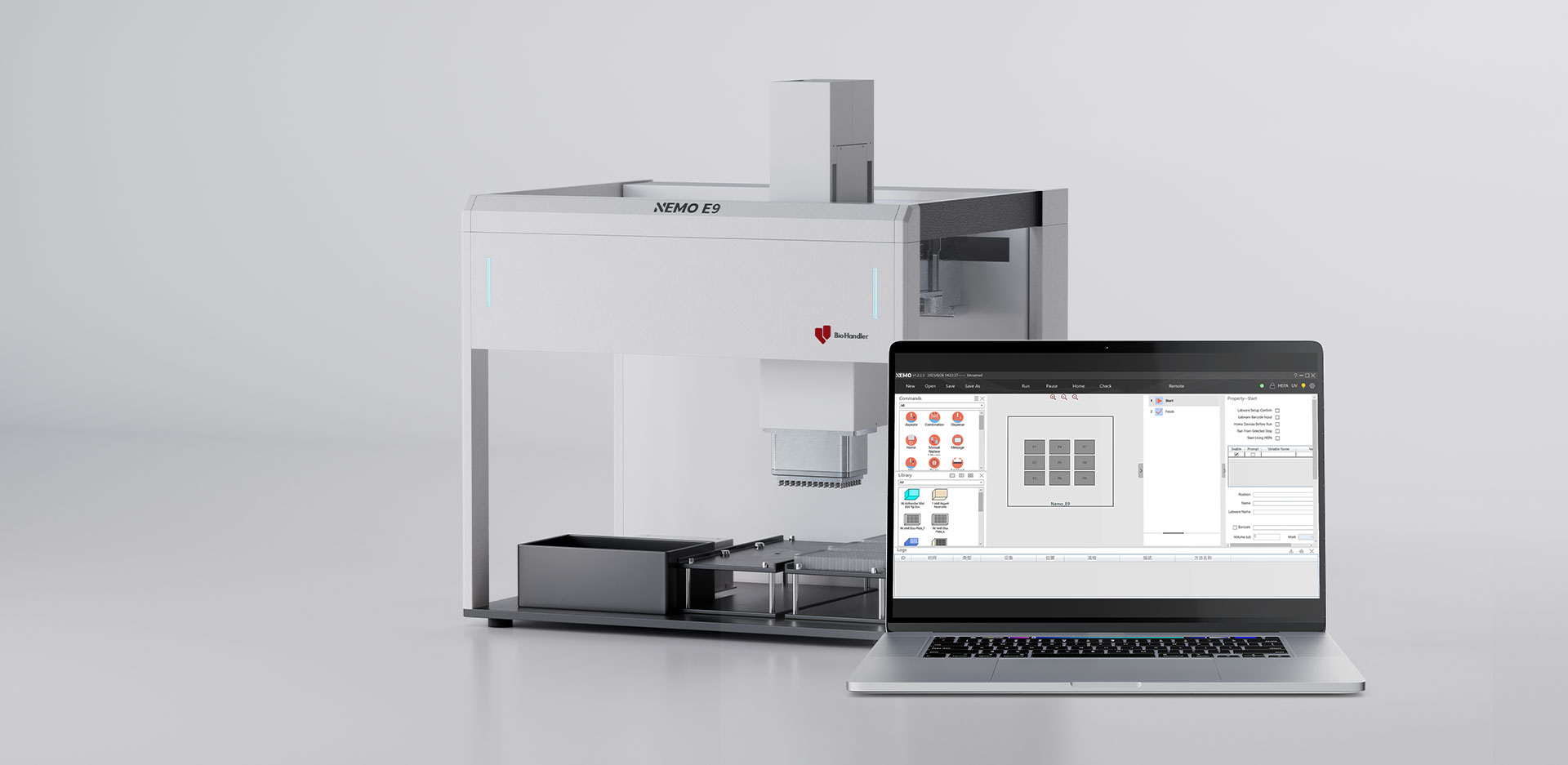

User-friendly software interface; drag-and-drop programming; built-in default filling programs
Stable and convenient

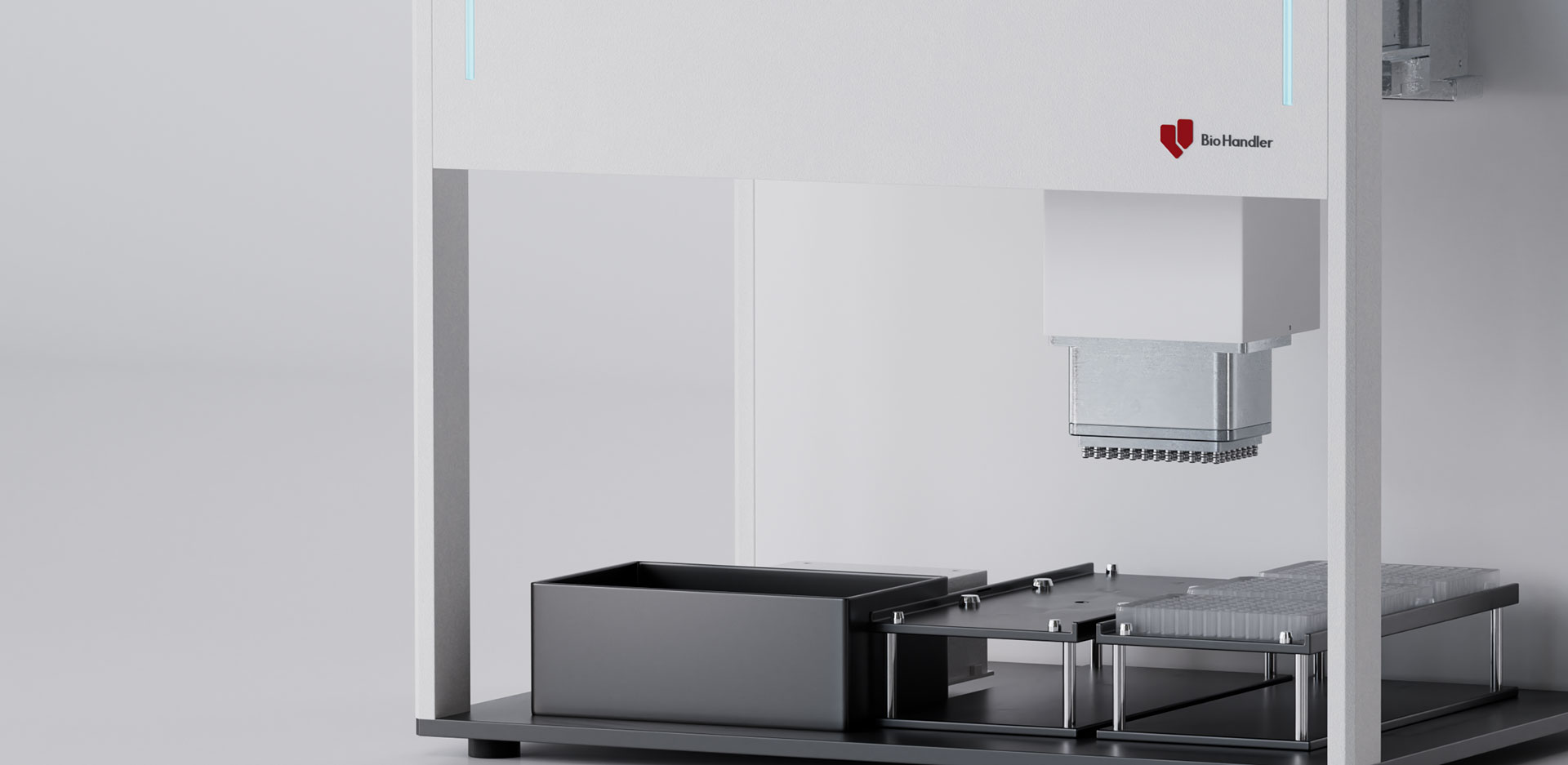

Wi-Fi connection; air-displacement pipetting; compact size allowing it to be placed in safety cabinets
Integration
Open to third-party integration; supports various modules including thermostat and shaker
Application scenario
Plate replication
Plate format rearrangement
Reagent addition
Compound addition
Serial dilution
PCR reaction setup
ELISA sample dilution
Cell culture medium aliquoting
Nucleic acid and protein purification
Technical Specifications
| Product name | NEMO E9 Pipetting Workstation |
| Volume range | 1-50μL, 2-200μL, 5-1000μL |
| Pipetting head | 96 channels, customization is available |
| Compatible tips | Automation tips |
| Compatible consumables | SBS standard 96/384-well plates |
| Plate positions | 9 |
| Dimensions (W×D×H) | 605×520×755mm |
| Weight | 60kg |
| Power | AC100-240V, 50/60Hz, 450W |
| Operating environment | Operation ambient temperature: 10°C~40°C Relative humidity: 20%~80% |
| Tip | Volume (μL) | Precision (≤CV%) | Accuracy (±%) |
|---|---|---|---|
| 50μL | 1 | ≤5% | ±8% |
| 10 | ≤2% | ±3% | |
| 2000μL | 2 | ≤5% | ±6% |
| 50 | ≤1% | ±2% | |
| 1000μL | 100 | ≤1.5% | ±1% |
| 500 | ≤1% | ±1% |
