NEMO E4
Pipetting Workstation
Watch the full video
NEMO E4
Pipetting Workstation

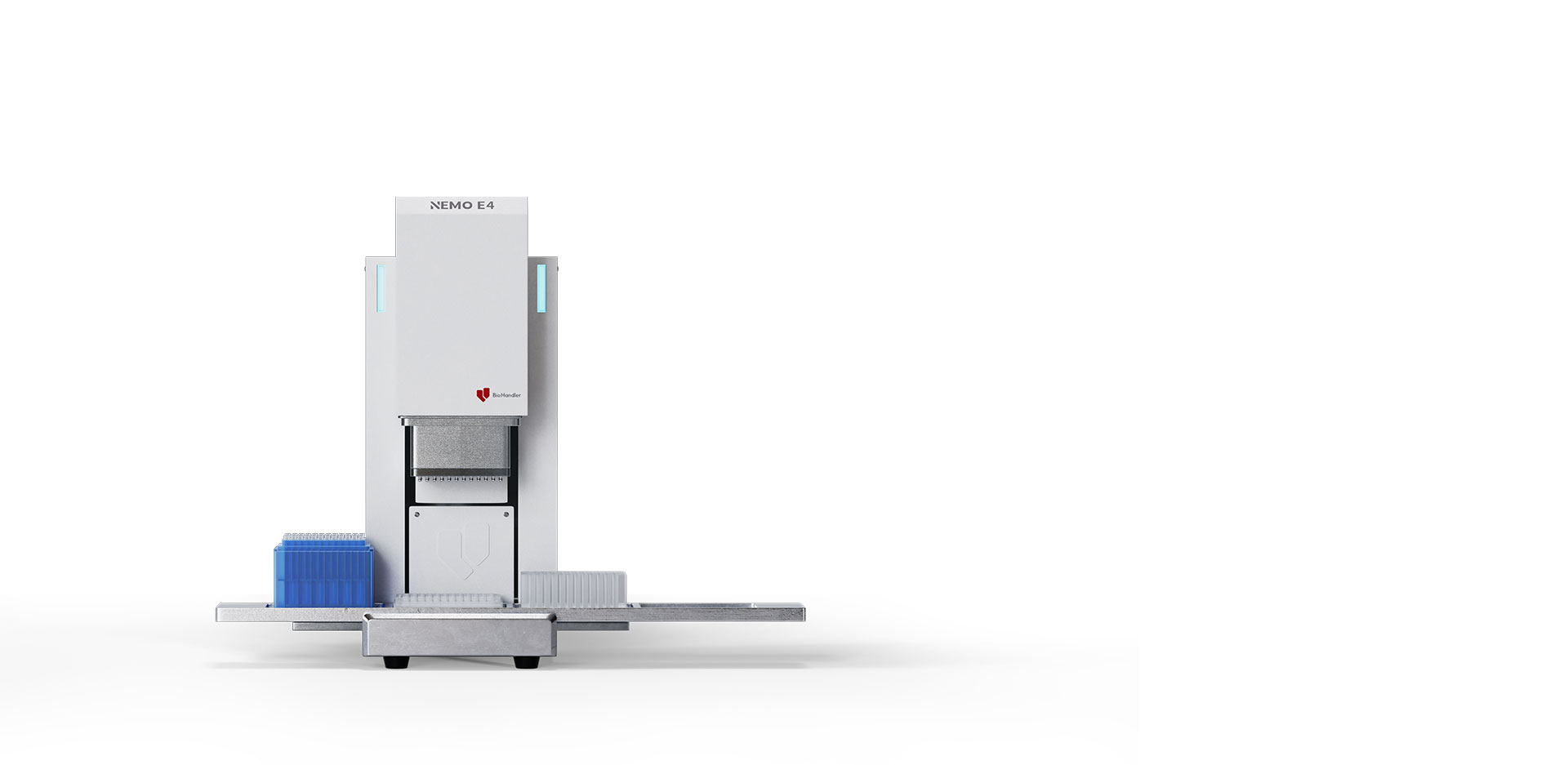

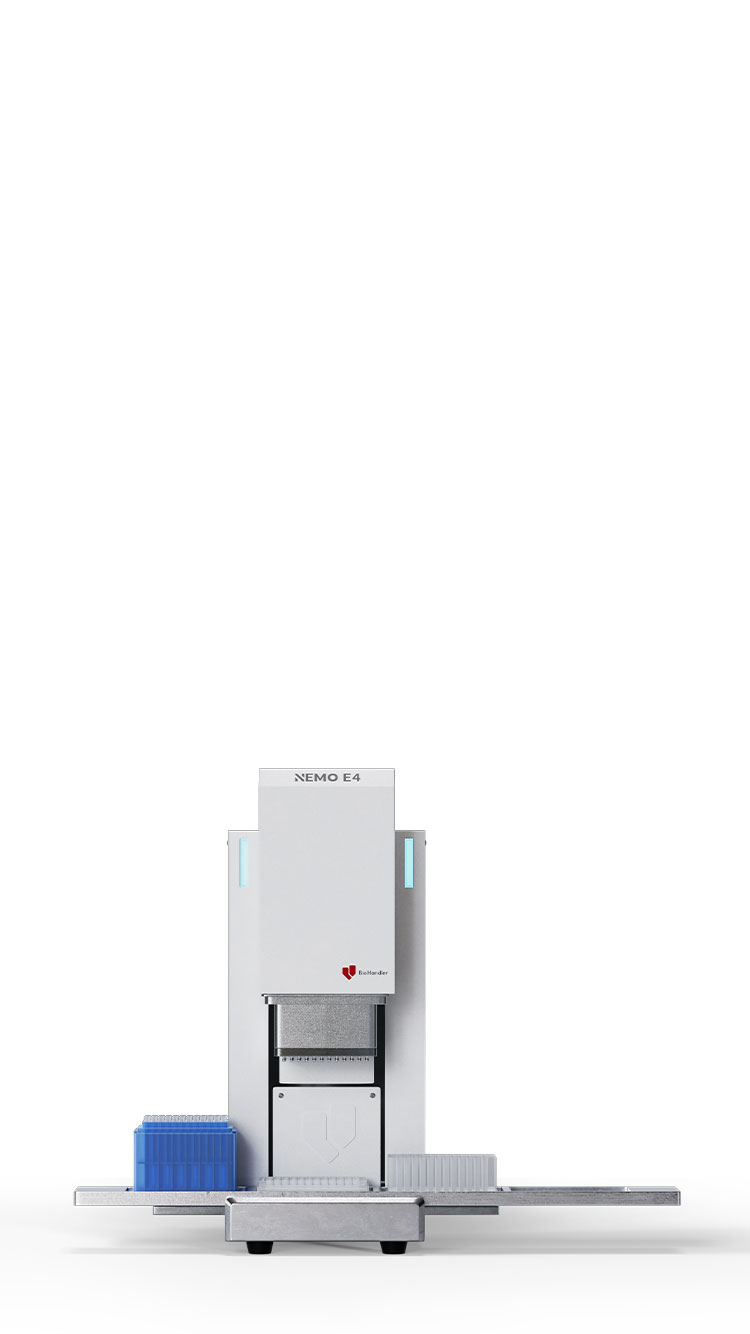

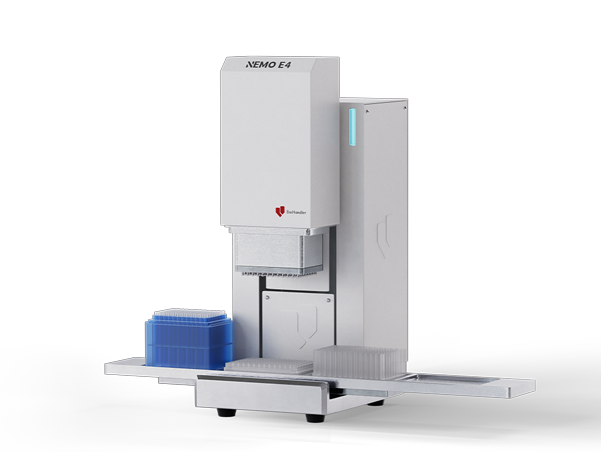

NEMO E4 is an automated pipetting workstation with significant flexibility, high-performance and high-throughput, which can hold 4 plates. Its small footprint makes it space-efficient . It can be placed in fume hood, biosafety cabinet and clean bench. The software is easy to use without the need for complex programming or special training. Its 96-channel head can be used for plate replication, as well as for aliquoting, transferring and dilution of samples or reagents. As such it can release lab personnel from heavy, repetitive pipetting work. The workstation can be widely used in third-party medical test centers, blood bank laboratories, hospital laboratories, disease control centers, animal quarantine centers, food and drug administrations, research institutions and biopharmaceutical companies.
Flexible operations

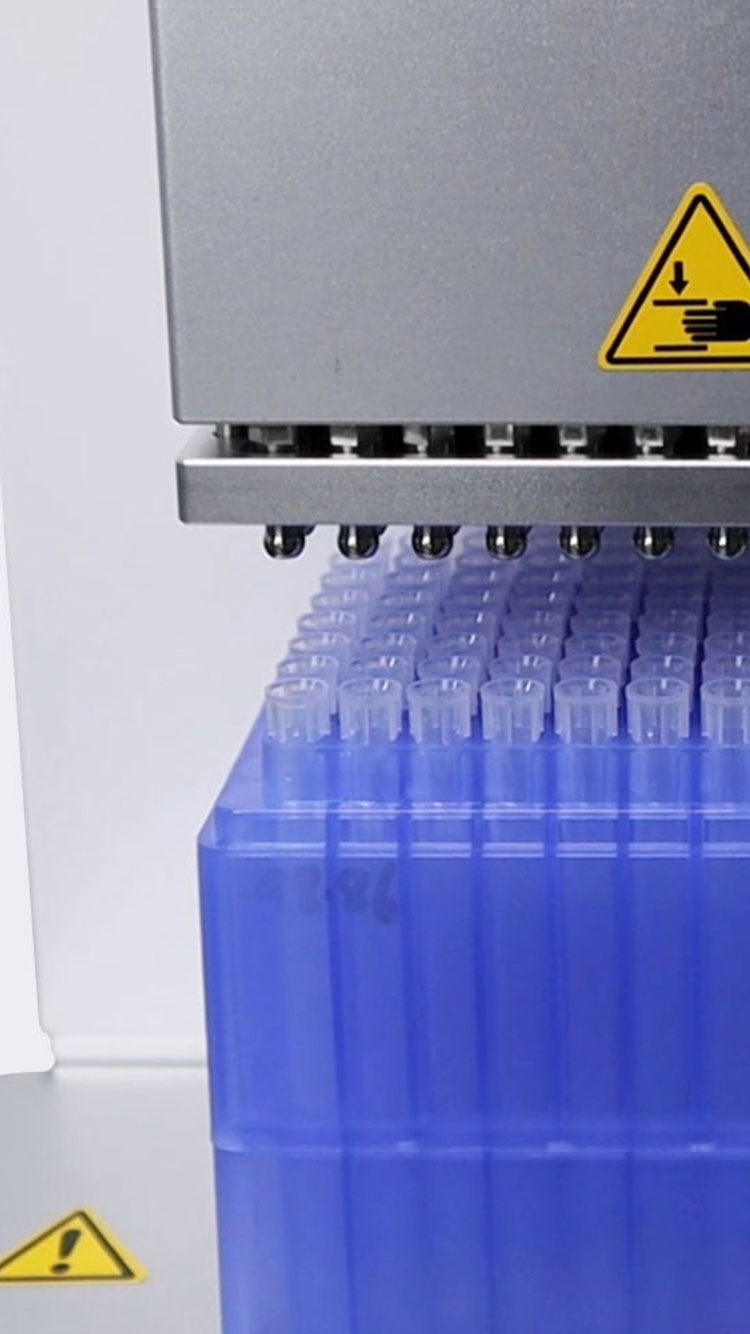

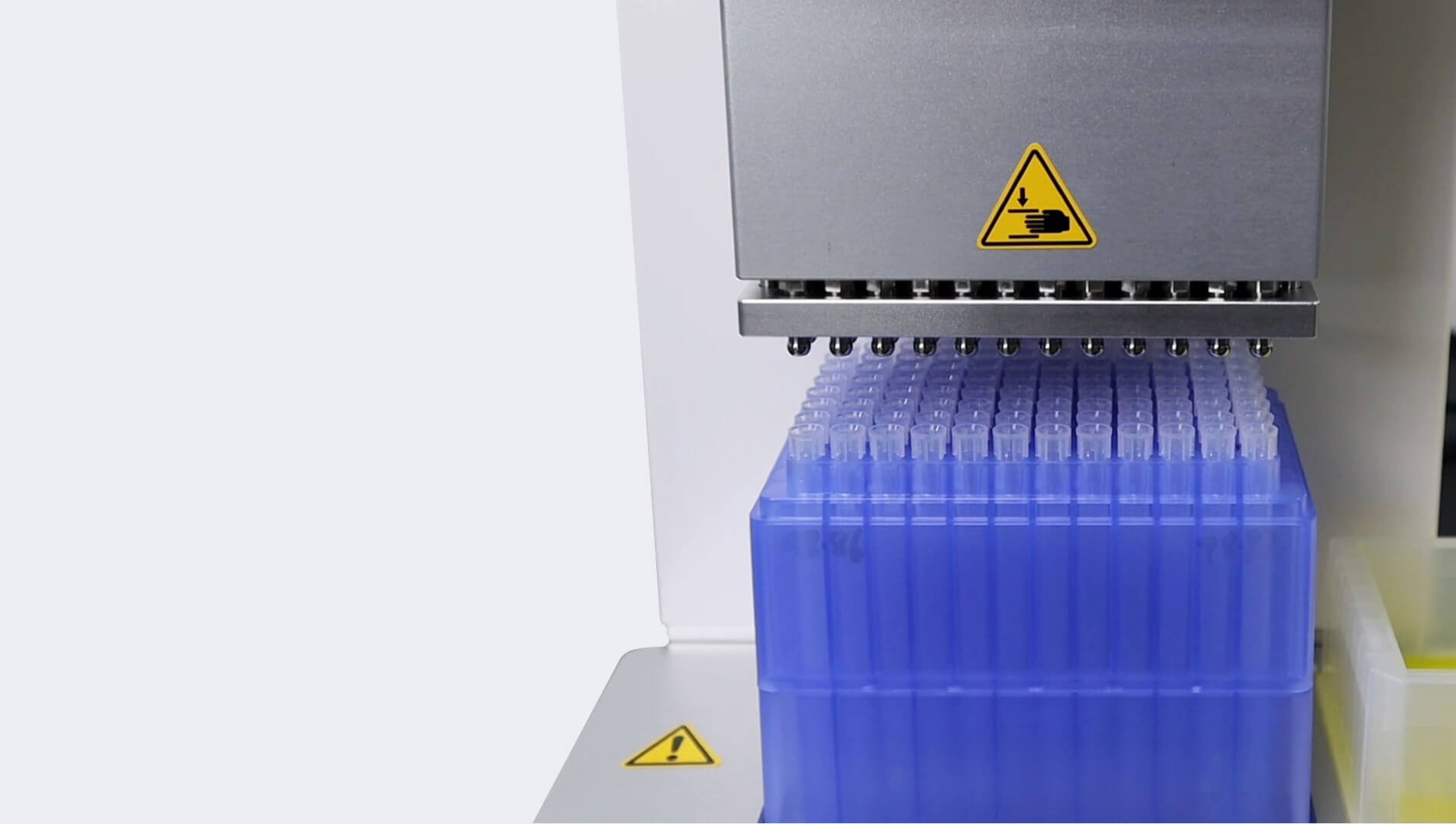

Independent X-, Y- and Z-axis movement; automatic retrieval and discarding of tips; single-column, multi-column and full-plate filling; 96- to 384-well plate filling

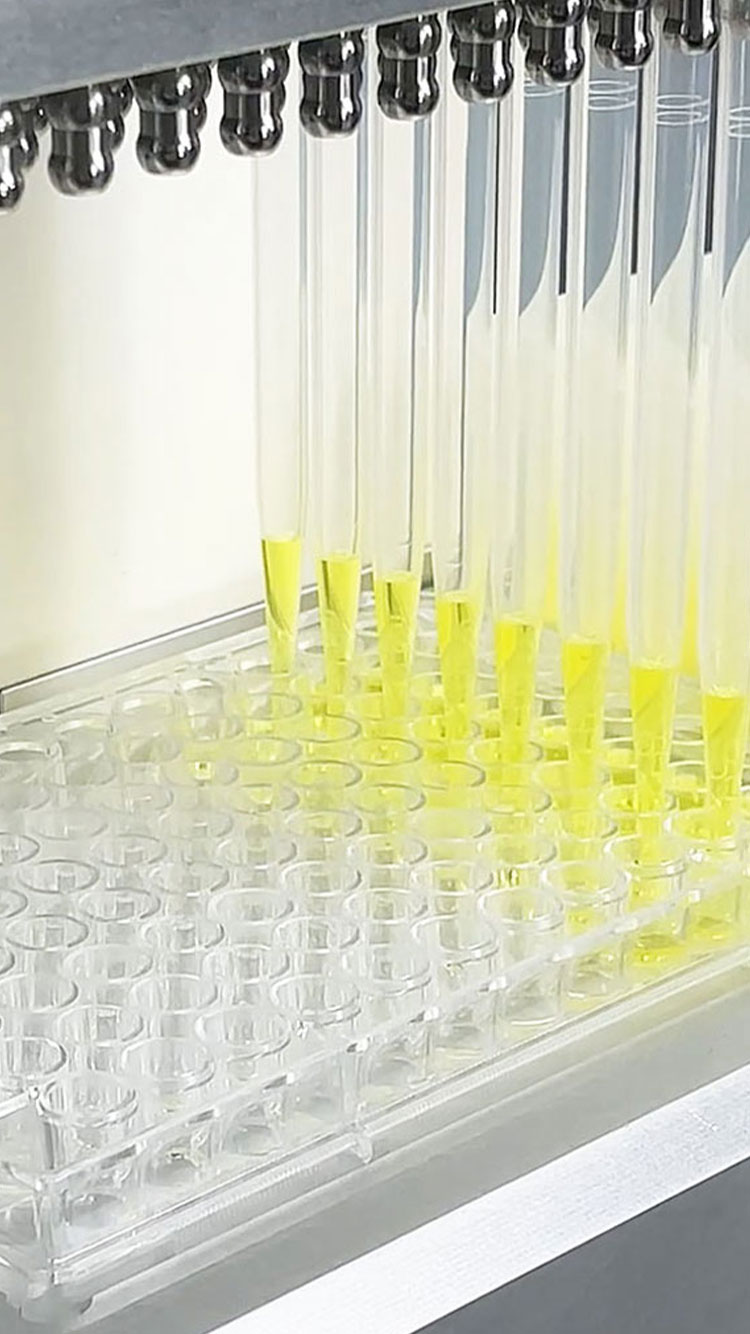

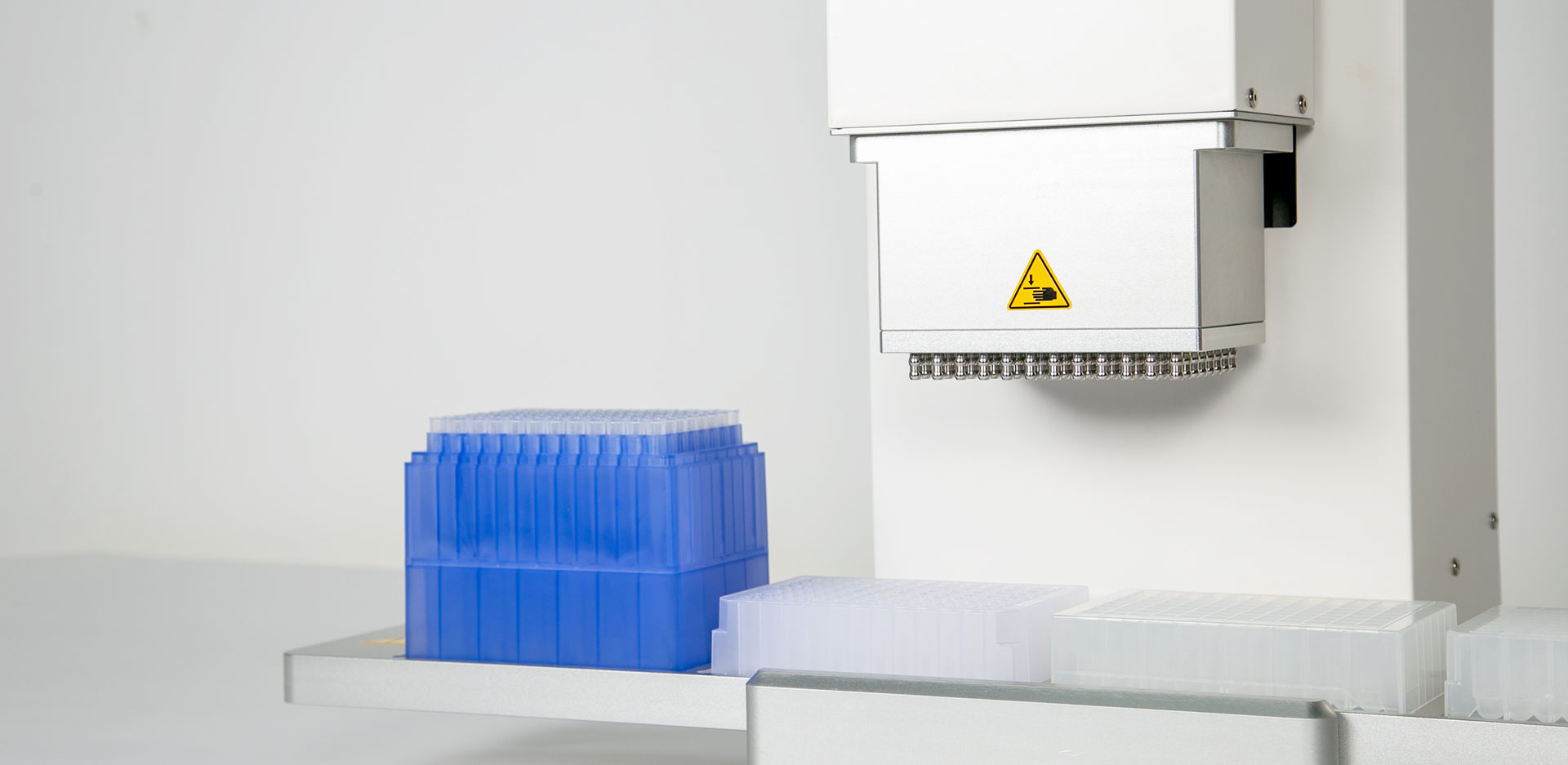

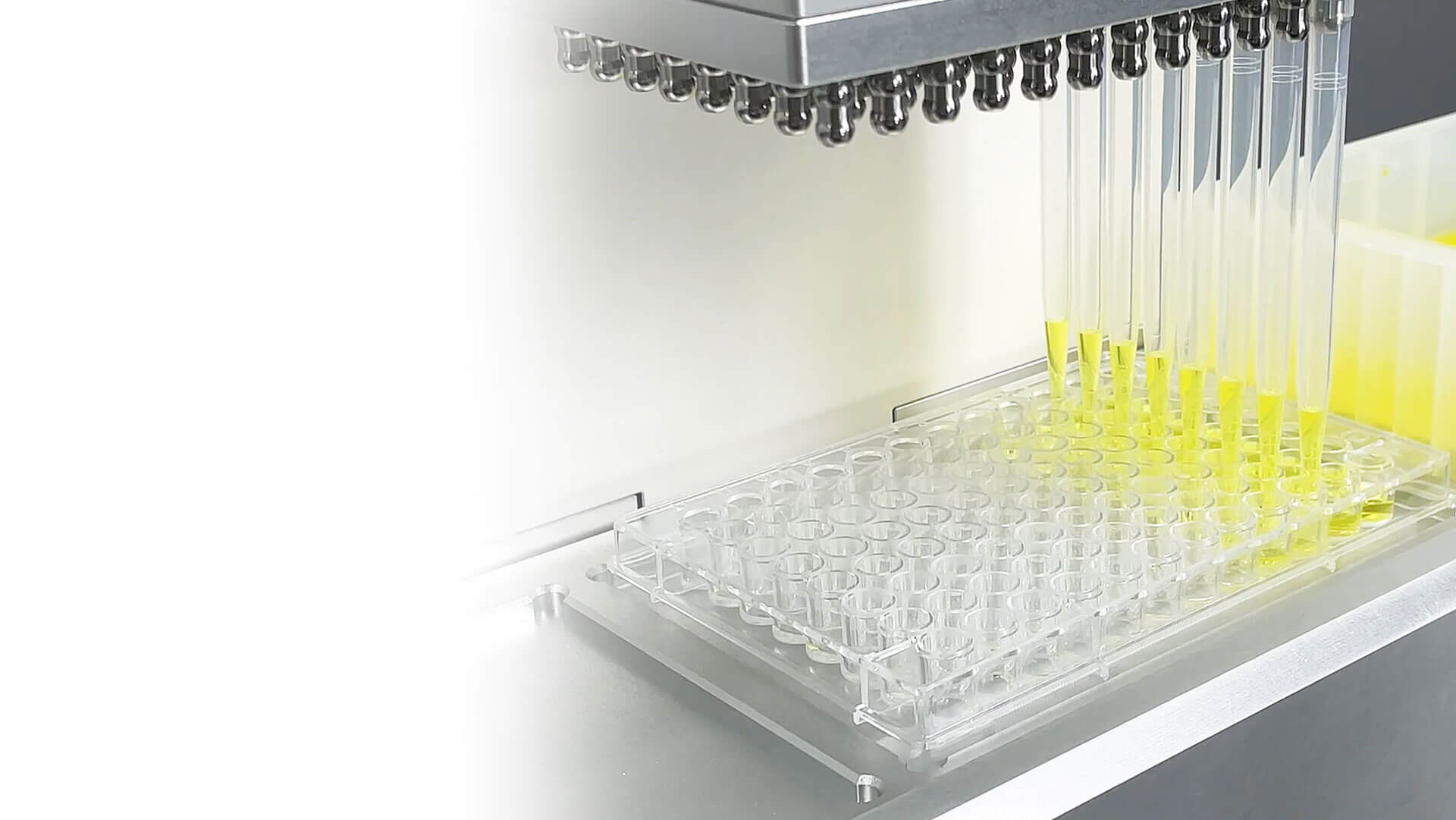

Precise pipetting

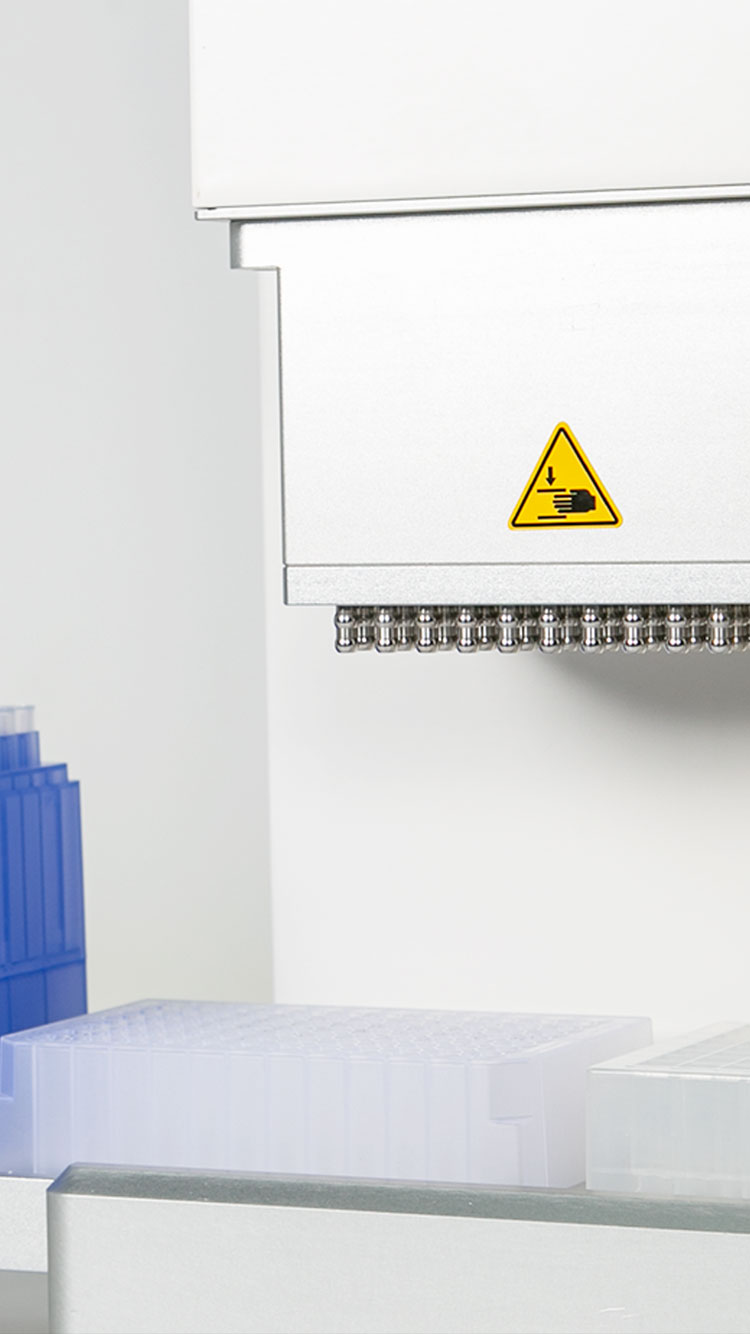

96-channel head allows efficient pipetting. Three different heads cater to different volumes, enabling high degree of precision

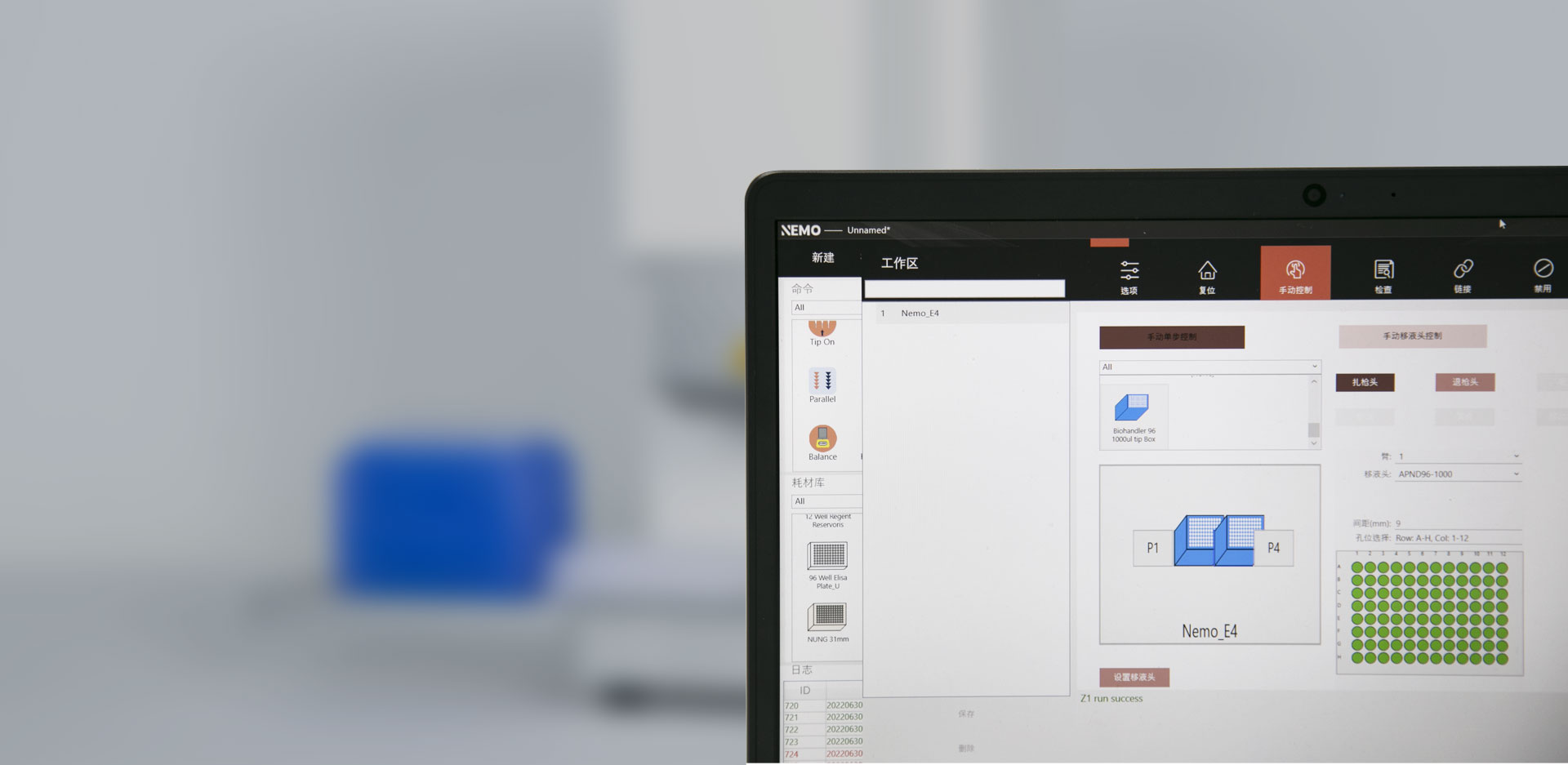

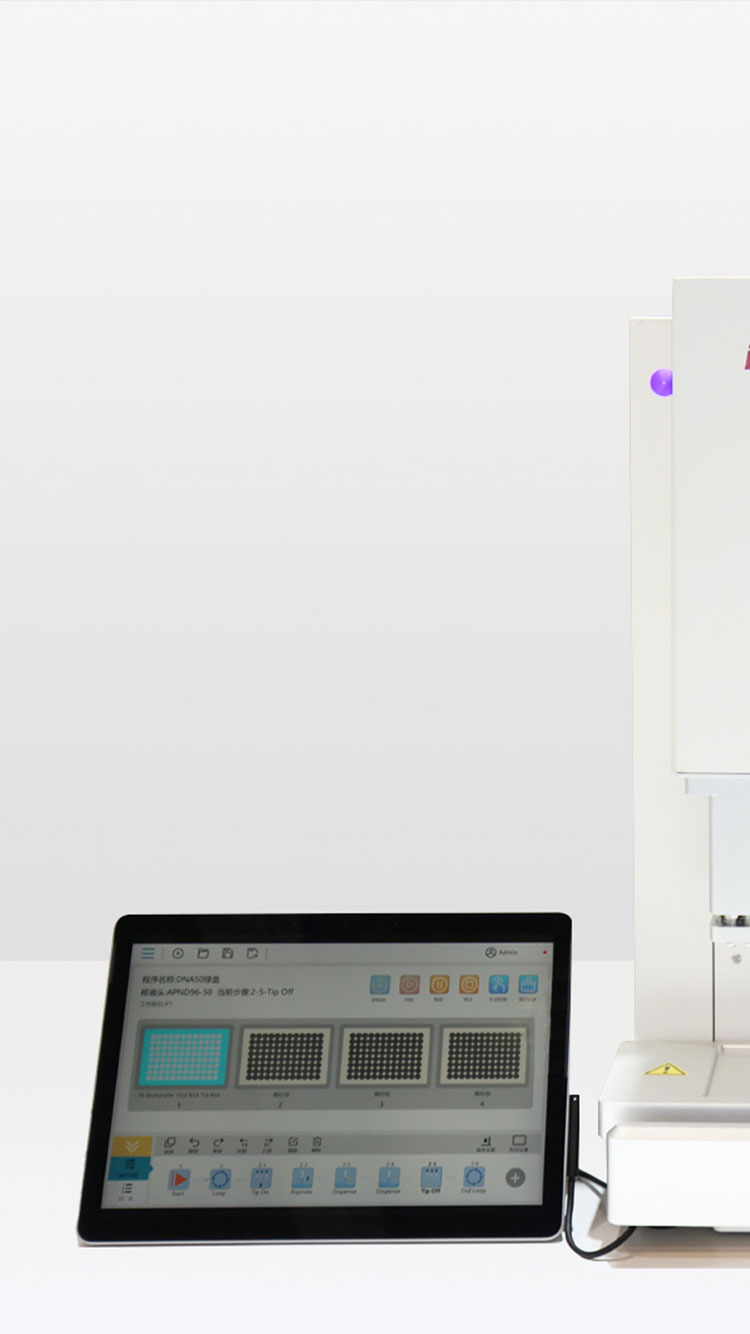

Easy programming
User-friendly software interface with built-in default filling programs
Stable and convenient
Wi-Fi connection; air-displacement pipetting; compact size allowing it to be placed in safety cabinets
Application scenario
Plate format rearrangement
Reagent addition
Compound addition
Single-column serial dilution
PCR reaction setup
ELISA
Cell culture medium aliquoting
Technical Specifications
| Product name | NEMO E4 Pipetting Workstation |
| Pipetting head | 96 channels, customization is available |
| Volume range | 1-50μL, 2-200μL, 5-1000μL |
| Plate positions | 4 |
| Compatible tips | Automation tips |
| Compatible consumables | SBS standard 96/384-well plates |
| Software | Visual interface |
| Operating environment | Operation ambient temperature: 10°C~40°C Relative humidity: 20%~80% |
| Dimensions (W×D×H) | 750×270×495mm |
| Weight | 25kg |
| Power | AC100-240V, 50/60Hz, 450W |
| Tip | Volume (μL) | Precision (≤CV%) | Accuracy (±%) |
|---|---|---|---|
| 50μL | 1 | ≤5% | ±8% |
| 10 | ≤2% | ±3% | |
| 2000μL | 2 | ≤5% | ±6% |
| 50 | ≤1% | ±2% | |
| 1000μL | 100 | ≤1.5% | ±1% |
| 500 | ≤1% | ±1% |
