ARCO Pro
High-accuracy Microliter Dispenser
Watch the full video
ARCO Pro
High-accuracy Microliter Dispenser

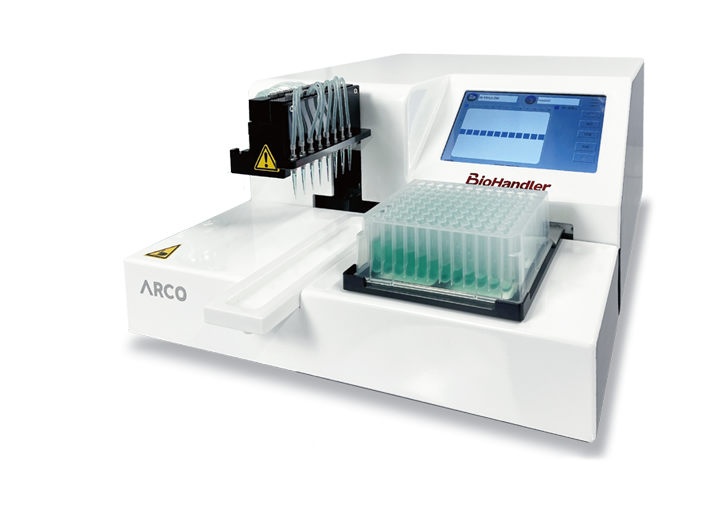

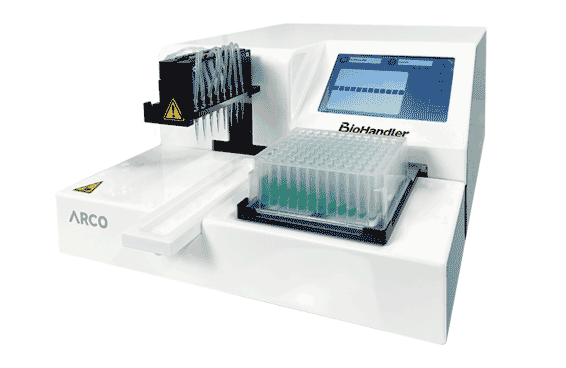

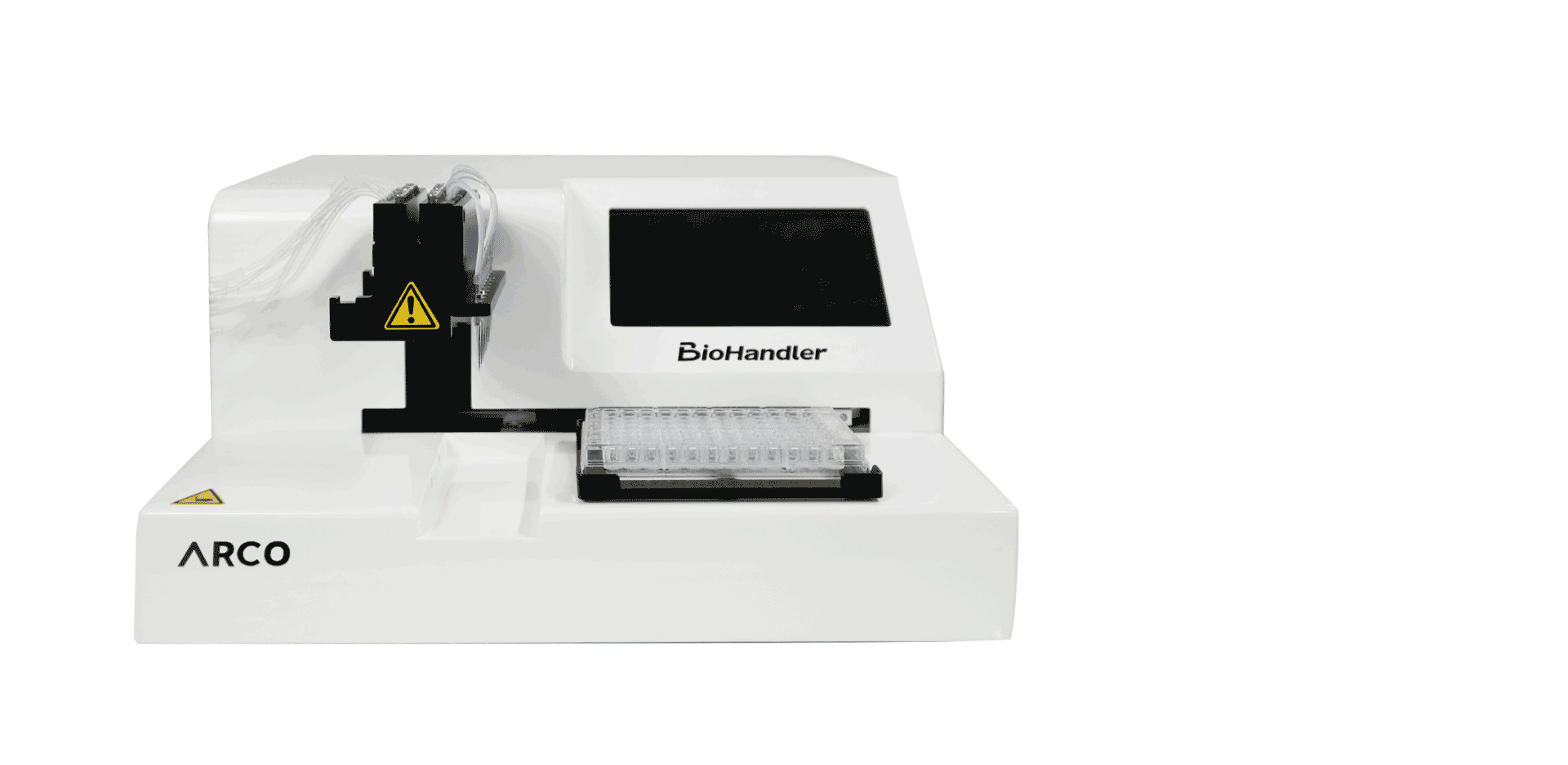

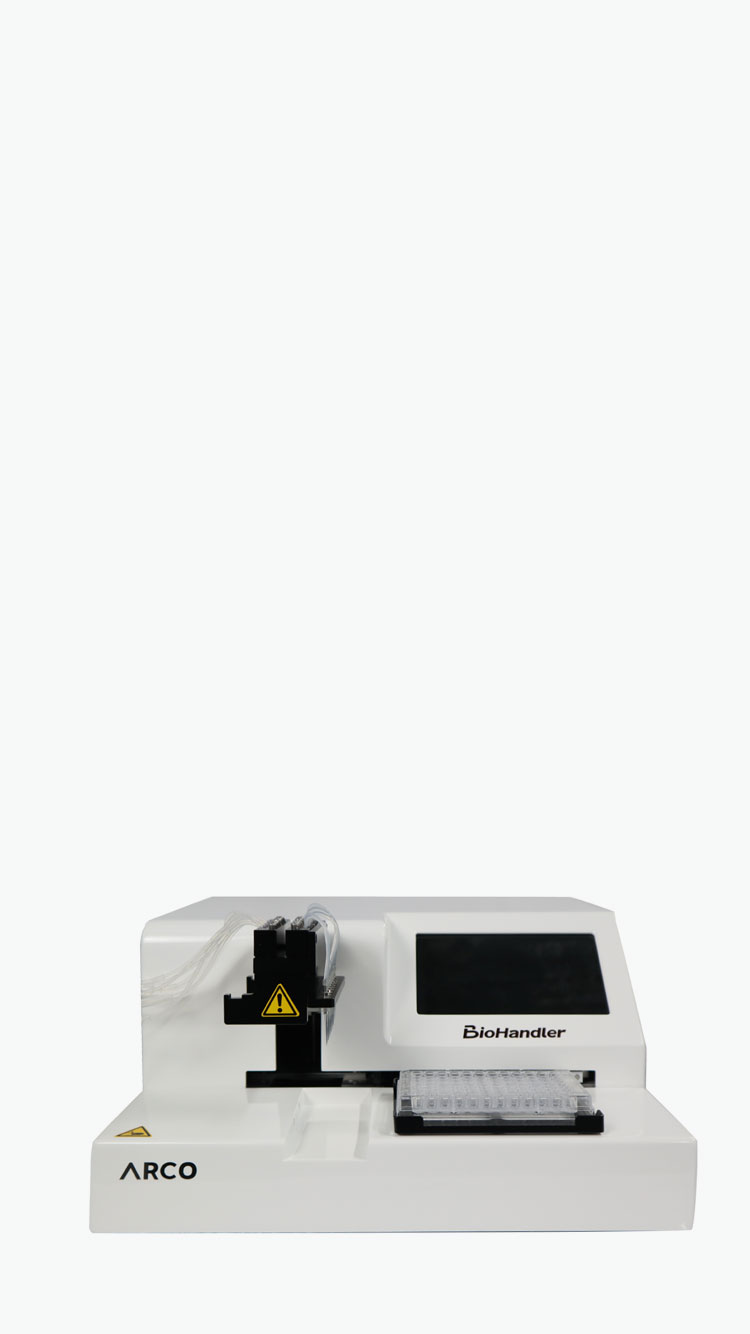

ARCO PRO high-accuracy microliter dispenser is a benchtop device that enables you to dispense microliter volumes of liquids. It offers great flexibility and performance with high precision and is easy to use, suitable for drug research and biotechnology labs. These dispensers are widely used in many applications, including drug research, life science research, food safety testing, nucleic acid extraction and proteomics, among others.
Flexible and versatile

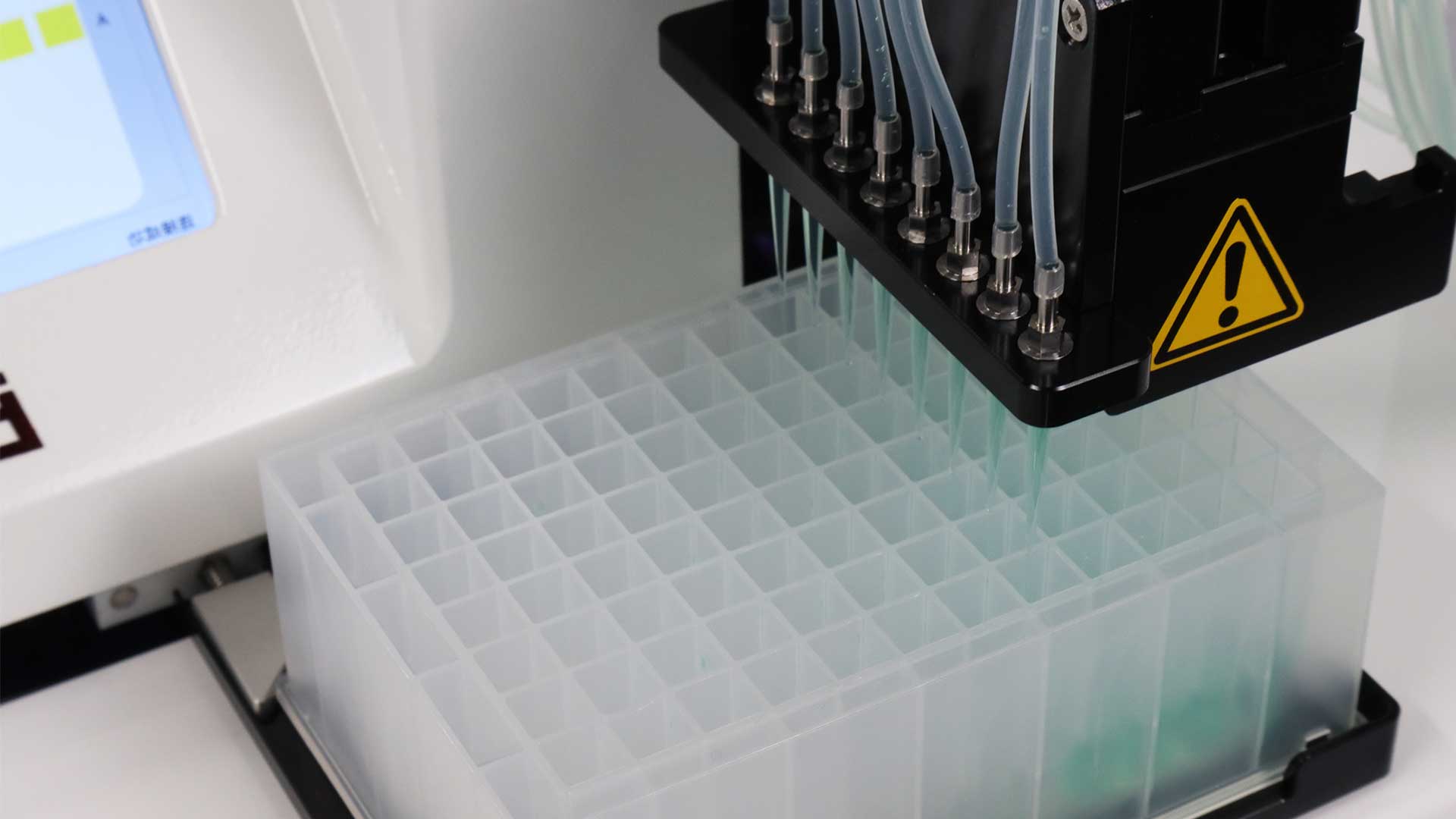

Suitable for 6- to 384-well plates, with dispensing volume of 5μL to 2500μL. Quickly and intuitively selects volume and column; sets different volumes for different columns; supports quick gradient dispensing
Rapid and precise

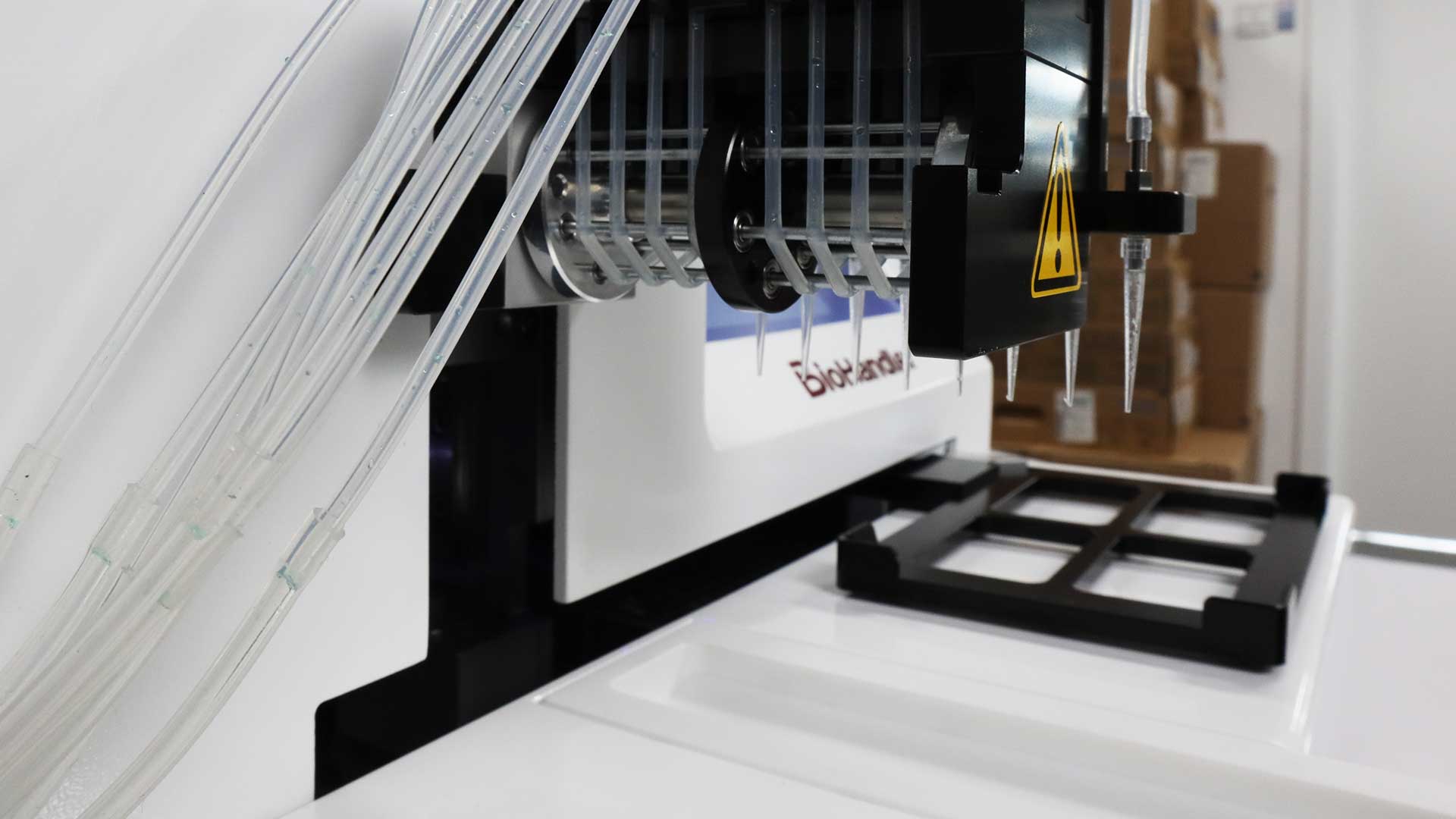

Supports emptying of the tubing and liquid backflow. High dispensing speed (less than 7 seconds for 96-well plate at 20μL/well) allows for substantial reduction in time and higher throughput
Compact footprint and convenient
Compact footprint allows for its placement inside a clean bench or a biosafety cabinet. Tubing set is easy to replace and autoclavable. Simple and intuitive interface makes operation easy and convenient
Integration
Fully integrated with automated system via RS232 port. Specially designed plate rack allows its robot arm to access plates easily
Technical Specifications

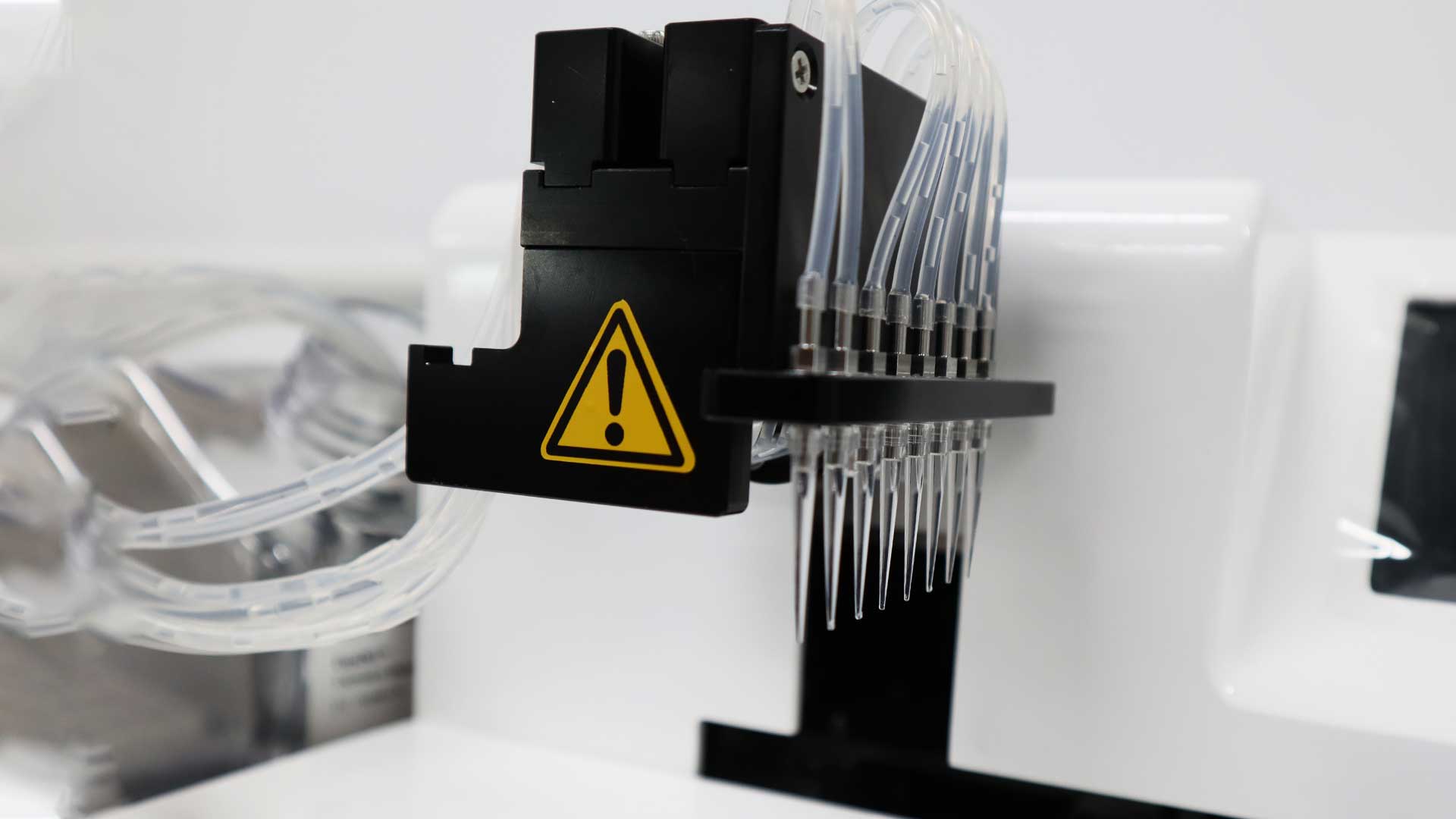

| Dispensing box | Quick 8-channel; can be replaced and autoclaved multiple times |
| Plate positions | 1 |
| Compatible consumables | 6/12/24/48/96/384-well plate |
| Consumables | Automatic height adjustment (7-60mm) |
| Volume range | 5-2500μL |
| Dispensing precision | 5μL: CV≤5% 10μL: CV≤3% ≥50μL: CV≤1% |
| Default dispensing speed (adjustable) | 96-well plate: 100μL 17s, 50μL 10s, 20μL 7s, 5μL 6s 384-well plate: 50μL 34s, 20μL 21s, 5μL 18s |
| Communication interface | RS232, USB |
| Integration | Supports automation integration |
| Dimensions (W×D×H) | 410×390×210mm |
| Weight | 11.6kg |
| Power | 100-240VAC, 50/60Hz, 224W |
